Widin
|
Authorised UK Distributor

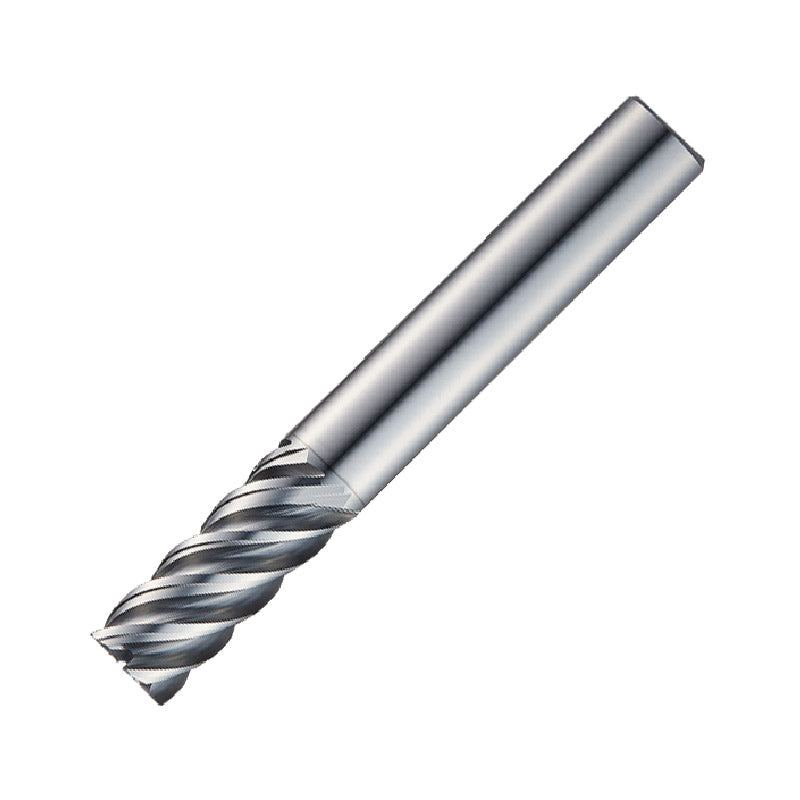

Widin Carbide Corner Radius End Mill For Stainless & Exotics
5 Flute Variable Helix (XR505)
With its unique 5-flute design and variable helix, this end mill offers enhanced chip evacuation and improved stability during cutting operations. The corner radius feature enables precise contouring and smooth surface finishes, while the carbide construction ensures exceptional durability and wear resistance. Whether you are roughing out material or performing intricate finishing work, the XR505 provides reliable performance and optimal tool life.
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| XR50506050 | 6 | 5 | 13 | 57 | 6 | 0.5 | £20.85 | 5 days |
|
| XR50508050 | 8 | 5 | 19 | 63 | 8 | 0.5 |
£19.76 |
In Stock |
|
| XR50510050 | 10 | 5 | 22 | 72 | 10 | 0.5 | £45.02 | 5 days |
|
| XR50512075 | 12 | 5 | 26 | 83 | 12 | 0.75 | £65.42 | 5 days |
|
| XR50514075 | 14 | 5 | 26 | 83 | 14 | 0.75 | £130.28 | 5 days |
|
| XR50514075S16 | 14 | 5 | 26 | 92 | 16 | 0.75 | £185.91 | 5 days |
|
| XR50516100 | 16 | 5 | 32 | 92 | 16 | 1 | £185.91 | 5 days |
|
| XR50518100 | 18 | 5 | 32 | 92 | 18 | 1 | £267.67 | 5 days |
|
| XR50518100S20 | 18 | 5 | 32 | 104 | 20 | 1 | £321.13 | 5 days |
|
| XR50520100 | 20 | 5 | 38 | 104 | 20 | 1 |
£198.45 |
In Stock |
|
| XR50525100 | 25 | 5 | 38 | 104 | 25 | 1 | £513.34 | 5 days |
|
No products match your filters.
