132 items

Mini Tool Inserts

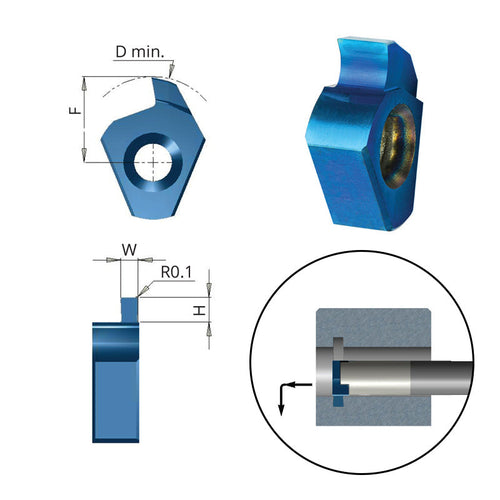

Carmex Small Indexable Carbide Grooving Insert -T8 - 9.5mm Min Bore - 1.5mm Width

Carmex Small Indexable Carbide Grooving Insert -T8 - 9.5mm Min Bore - 1.5mm Width

SKU: T8GW15H20BLU

Insert Size	T8
Radius	0.1
Groove Width	1.50
Groove Depth	3.00
Minimum Bore	9.5
F	5.1

£15.00 ex VAT

Carmex Small Indexable Carbide Grooving Insert -T10 - 13.1mm Min Bore - 2mm Width

Carmex Small Indexable Carbide Grooving Insert -T10 - 13.1mm Min Bore - 2mm Width

SKU: T10GW20H23BLU

Insert Size	T10
Radius	0.1
Groove Width	2.00
Groove Depth	2.30
Minimum Bore	13.1
F	7.9

£15.00 ex VAT

Carmex Small Indexable Carbide Insert Face Grooving External - T10 - 12mm Min Bore - 2mm Width - 3mm Groove Depth

Carmex Small Indexable Carbide Insert Face Grooving External - T10 - 12mm Min Bore - 2mm Width - 3mm Groove Depth

SKU: T10FEW20H30BLU

Insert Size	T10
Groove Width	2.00
Groove Depth	3.00
Minimum Bore	12
F	8

£21.13 ex VAT

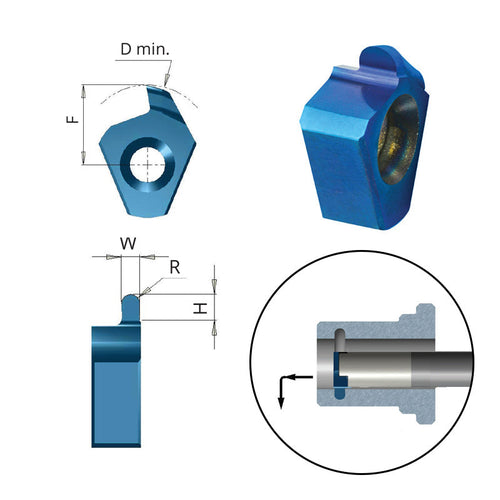

Carmex Small Indexable Carbide Insert Full Radius Grooving - T10 - 13.5mm Min Bore - R0.4

Carmex Small Indexable Carbide Insert Full Radius Grooving - T10 - 13.5mm Min Bore - R0.4

SKU: T10KR04H40BLU

Insert Size	T10
Radius	0.4
Groove Width	0.80
Groove Depth	4.00
Minimum Bore	13.5
F	7.9

£18.00 ex VAT

Carmex Small Indexable Carbide Grooving Insert -T10 - 13.1mm Min Bore - 1mm Width

Carmex Small Indexable Carbide Grooving Insert -T10 - 13.1mm Min Bore - 1mm Width

SKU: T10GW10H23BLU

Insert Size	T10
Radius	0.1
Groove Width	1.00
Groove Depth	2.30
Minimum Bore	13.1
F	7.9

£15.00 ex VAT

Carmex Small Indexable Carbide Threading Insert - Full Profile ISO - T10 - M14 x 1.5

SKU: T10I1.5ISOBLU

Insert Size	T10
Pitch	1.5
Minimum Bore	11.7
F	6.5
Y	1.0
Metric Coarse	N/A

£18.00 ex VAT

Carmex Small Indexable Carbide Threading Insert - Full Profile ISO - T8 - M14, M17 x 2

SKU: T8I2.0ISOBLU

Insert Size	T8
Pitch	2
Minimum Bore	8.8
F	4.5
Y	1.3
Metric Coarse	M14

£18.00 ex VAT

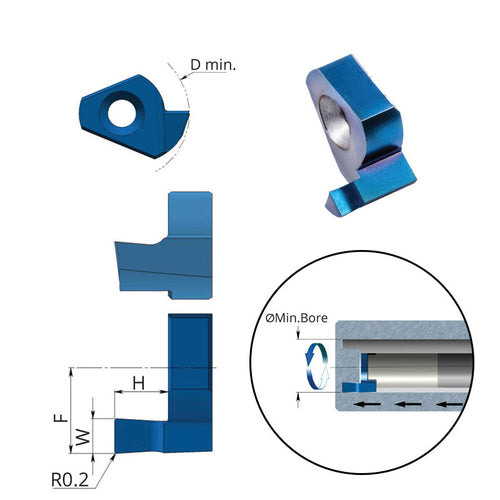

Carmex Small Indexable Carbide Insert Face Grooving Internal - T10 - 14mm Min Bore - 2mm Width - 5mm Groove Depth

Carmex Small Indexable Carbide Insert Face Grooving Internal - T10 - 14mm Min Bore - 2mm Width - 5mm Groove Depth

SKU: T10FIW20H50BLU

Insert Size	T10
Groove Width	2.00
Groove Depth	5.00
Minimum Bore	14
F	8

£23.30 ex VAT

Carmex Small Indexable Carbide Insert Face Grooving External - T10 - 12mm Min Bore - 3mm Width - 5mm Groove Depth

Carmex Small Indexable Carbide Insert Face Grooving External - T10 - 12mm Min Bore - 3mm Width - 5mm Groove Depth

SKU: T10FEW30H50BLU

Insert Size	T10
Groove Width	3.00
Groove Depth	5.00
Minimum Bore	12
F	8

£23.30 ex VAT

Carmex Small Indexable Carbide Insert Face Grooving External - T10 - 12mm Min Bore - 3mm Width - 3mm Groove Depth

Carmex Small Indexable Carbide Insert Face Grooving External - T10 - 12mm Min Bore - 3mm Width - 3mm Groove Depth

SKU: T10FEW30H30BLU

Insert Size	T10
Groove Width	3.00
Groove Depth	3.00
Minimum Bore	12
F	8

£21.13 ex VAT

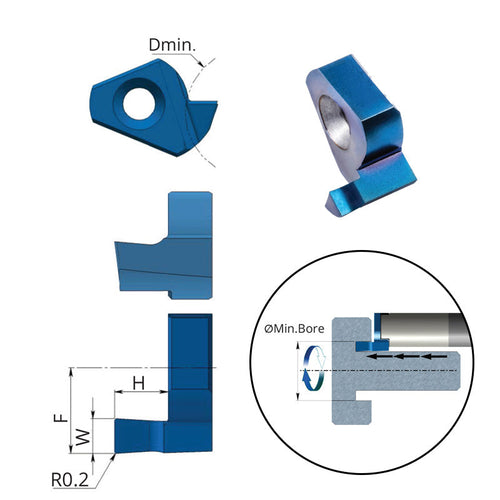

Carmex Small Indexable Carbide Insert Face Grooving External - T10 - 12mm Min Bore - 1.5mm Width - 2.5mm Groove Depth

Carmex Small Indexable Carbide Insert Face Grooving External - T10 - 12mm Min Bore - 1.5mm Width - 2.5mm Groove Depth

SKU: T10FEW15H25BLU

Insert Size	T10
Groove Width	1.50
Groove Depth	2.50
Minimum Bore	12
F	8

£20.51 ex VAT

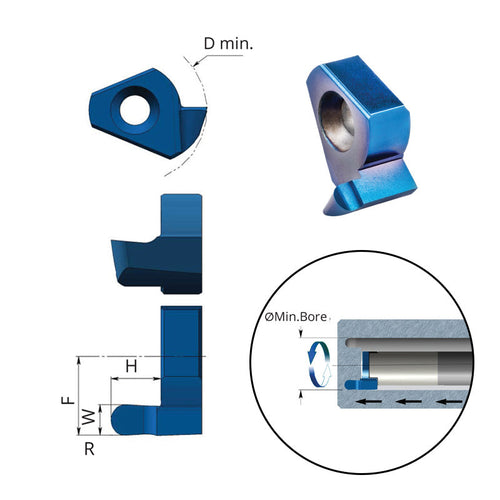

Carmex Small Indexable Carbide Insert Face Grooving Full Radius External - T10 - 12mm Min Bore - 3mm Width - R1.5

Carmex Small Indexable Carbide Insert Face Grooving Full Radius External - T10 - 12mm Min Bore - 3mm Width - R1.5

SKU: T10ZER15H30BLU

Insert Size	T10
Radius	1.5
Groove Width	3.00
Groove Depth	3.00
Minimum Bore	12
F	8

£23.30 ex VAT

Carmex Small Indexable Carbide Insert Full Radius Grooving - T10 - 13.1mm Min Bore - R0.6

Carmex Small Indexable Carbide Insert Full Radius Grooving - T10 - 13.1mm Min Bore - R0.6

SKU: T10KR06H22BLU

Insert Size	T10
Radius	0.6
Groove Width	1.20
Groove Depth	2.20
Minimum Bore	13.1
F	7.9

£17.01 ex VAT

Carmex Small Indexable Carbide Grooving Insert - T10 - 12.2mm Min Bore - 0.93mm Width

Carmex Small Indexable Carbide Grooving Insert - T10 - 12.2mm Min Bore - 0.93mm Width

SKU: TD10GW09H15BLU

Insert Size	T10
Radius	0
Groove Width	0.93
Groove Depth	1.50
Minimum Bore	12.2
F	6.7

£14.52 ex VAT

Carmex Small Indexable Carbide Grooving Insert - T10 - 13.5mm Min Bore - 2.5mm Width

Carmex Small Indexable Carbide Grooving Insert - T10 - 13.5mm Min Bore - 2.5mm Width

SKU: T10GW25H40BLU

Insert Size	T10
Radius	0.1
Groove Width	2.50
Groove Depth	4.00
Minimum Bore	13.5
F	7.9

£15.74 ex VAT

Carmex Small Indexable Carbide Grooving Insert - T10 - 13.5mm Min Bore - 2mm Width

Carmex Small Indexable Carbide Grooving Insert - T10 - 13.5mm Min Bore - 2mm Width

SKU: T10GW20H40BLU

Insert Size	T10
Radius	0.1
Groove Width	2.00
Groove Depth	4.00
Minimum Bore	13.5
F	7.9

£15.74 ex VAT

Carmex Small Indexable Carbide Grooving Insert -T10 - 13.1mm Min Bore - 1.5mm Width

Carmex Small Indexable Carbide Grooving Insert -T10 - 13.1mm Min Bore - 1.5mm Width

SKU: T10GW15H23BLU

Insert Size	T10
Radius	0.1
Groove Width	1.50
Groove Depth	2.30
Minimum Bore	13.1
F	7.9

£15.00 ex VAT

Carmex Small Indexable Carbide Grooving Insert -T10 - 12.3mm Min Bore - 1mm Width

Carmex Small Indexable Carbide Grooving Insert -T10 - 12.3mm Min Bore - 1mm Width

SKU: T10GW10H14BLU

Insert Size	T10
Radius	0.1
Groove Width	1.00
Groove Depth	1.40
Minimum Bore	12.3
F	7.1

£13.67 ex VAT

Carmex Small Indexable Carbide Grooving Insert -T8 - 9.4mm Min Bore - 1mm Width

Carmex Small Indexable Carbide Grooving Insert -T8 - 9.4mm Min Bore - 1mm Width

SKU: T8GW10H20BLU

Insert Size	T8
Radius	0.1
Groove Width	1.00
Groove Depth	2.00
Minimum Bore	9.4
F	5.1

£15.00 ex VAT

Carmex Small Indexable Carbide Insert - Threading Partial Profile 60° - T10 - 13.1mm Min Bore

SKU: T10D60BLU

Insert Size	T10
Thread Form	60 Degree Partial
Metric Range	Int 2.0-3.0
TPI	13-8
Minimum Bore	13.1
F	7.9

£19.03 ex VAT

Carmex Small Indexable Carbide Insert - Threading Partial Profile 55° - T10 - 12.4mm Min Bore

SKU: T10G55BLU

Insert Size	T10
Thread Form	55 Degree Partial
Metric Range	1.25-2.0
TPI	19-14
Minimum Bore	12.4
F	7.2

£19.03 ex VAT

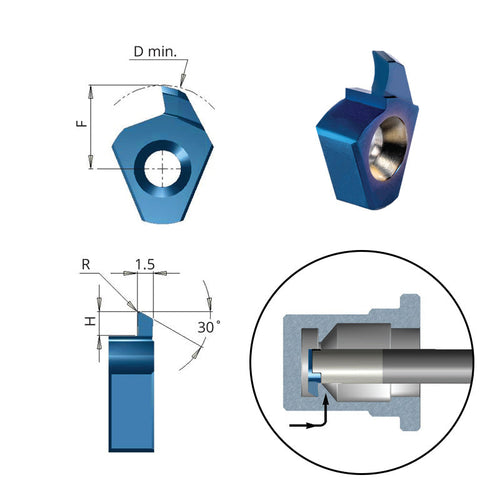

Carmex Small Indexable Carbide Insert Back Turning - T10 - 13.1mm Min Bore - R0.4

Carmex Small Indexable Carbide Insert Back Turning - T10 - 13.1mm Min Bore - R0.4

SKU: T10XR04H23BLU

Insert Size	T10
H	2.3
Radius	0.4
Minimum Bore	13.1
F	7.9

£14.68 ex VAT

Carmex Small Indexable Carbide Insert Back Turning - T8 - 9.4mm Min Bore - R0.2

Carmex Small Indexable Carbide Insert Back Turning - T8 - 9.4mm Min Bore - R0.2

SKU: T8XR02H20BLU

Insert Size	T8
H	2
Radius	0.2
Minimum Bore	9.4
F	5.1

£14.68 ex VAT

Carmex Small Indexable Carbide Insert Chamfering C90 - T10 - 12.7mm Min Bore

Carmex Small Indexable Carbide Insert Chamfering C90 - T10 - 12.7mm Min Bore

SKU: T10C90BLU

Insert Size	T10
W	0.2
H Max	1.8
Angle	90°
Minimum Bore	12.7
F	7.5

£15.37 ex VAT

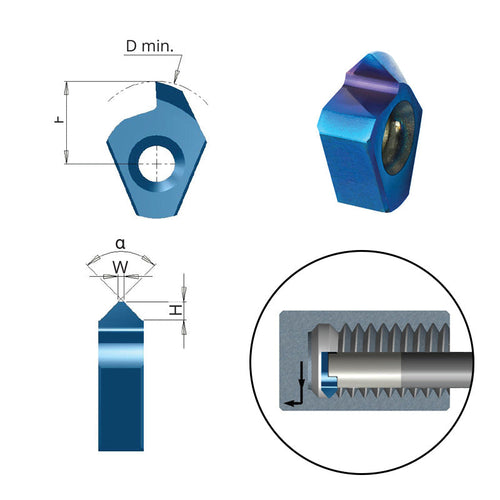

Carmex Small Indexable Carbide Insert Chamfering C90 - T8 - 8.8mm Min Bore

Carmex Small Indexable Carbide Insert Chamfering C90 - T8 - 8.8mm Min Bore

SKU: T8C90BLU

Insert Size	T8
W	0.2
H Max	1.4
Angle	90°
Minimum Bore	8.8
F	4.5

£15.37 ex VAT

Carmex Small Indexabe Carbide Threading Insert - Unified Full Profile - T10 - 12.6mm Min Bore - 10 TPI Pitch

SKU: T10I10UNBLU

Insert Size	T10
Pitch	10
Minimum Bore	12.6
F	7.4
Y	1.5
UNC	3/4

£16.70 ex VAT

Carmex Small Indexabe Carbide Threading Insert - Unified Full Profile - T10 - 12.5mm Min Bore - 11 TPI Pitch

SKU: T10I11UNBLU

Insert Size	T10
Pitch	11
Minimum Bore	12.5
F	7.3
Y	1.5
UNC	N/A

£18.00 ex VAT

Carmex Small Indexabe Carbide Threading Insert - Unified Full Profile - T10 - 12.1mm Min Bore - 12 TPI Pitch

SKU: T10I12UNBLU

Insert Size	T10
Pitch	12
Minimum Bore	12.1
F	6.9
Y	1.4
UNC	5/8

£18.00 ex VAT

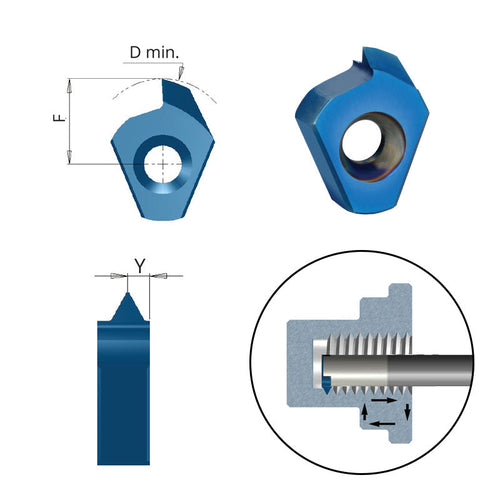

Carmex Small Indexabe Carbide Threading Insert - Unified Full Profile - T10 - 12.1mm Min Bore - 14 TPI Pitch

SKU: T10I14UNBLU

Insert Size	T10
Pitch	14
Minimum Bore	12.1
F	6.9
Y	1.2
UNC	N/A

£18.00 ex VAT

Carmex Small Indexabe Carbide Threading Insert - Unified Full Profile - T10 - 12mm Min Bore - 16 TPI Pitch

SKU: T10I16UNBLU

Insert Size	T10
Pitch	16
Minimum Bore	12.0
F	6.8
Y	1.1
UNC	9/16

£18.00 ex VAT

Carmex Small Indexabe Carbide Threading Insert - Unified Full Profile - T10 - 12mm Min Bore - 18 TPI Pitch

SKU: T10I18UNBLU

Insert Size	T10
Pitch	18
Minimum Bore	12.0
F	6.8
Y	1.0
UNC	N/A

£18.00 ex VAT

Carmex Small Indexabe Carbide Threading Insert - Unified Full Profile - T10 - 12mm Min Bore - 20 TPI Pitch

SKU: T10I20UNBLU

Insert Size	T10
Pitch	20
Minimum Bore	12.0
F	6.8
Y	0.9
UNC	9/16

£18.00 ex VAT

Carmex Small Indexabe Carbide Threading Insert - Unified Full Profile - T8 - 8.8mm Min Bore - 13 TPI Pitch

SKU: T8I13UNBLU

Insert Size	T8
Pitch	13
Minimum Bore	8.8
F	4.5
Y	1.3
UNC	1/2

£16.70 ex VAT

Carmex Small Indexabe Carbide Threading Insert - Unified Full Profile - T8 - 8.8mm Min Bore - 14 TPI Pitch

SKU: T8I14UNBLU

Insert Size	T8
Pitch	14
Minimum Bore	8.8
F	4.5
Y	1.2
UNC	N/A

£18.00 ex VAT

Carmex Small Indexabe Carbide Threading Insert - Unified Full Profile - T8 - 8.7mm Min Bore - 16 TPI Pitch

SKU: T8I16UNBLU

Insert Size	T8
Pitch	16
Minimum Bore	8.7
F	4.4
Y	1
UNC	7/16

£18.00 ex VAT

Carmex Small Indexabe Carbide Threading Insert - Unified Full Profile - T8 - 8.2mm Min Bore - 20 TPI Pitch

SKU: T8I20UNBLU

Insert Size	T8
Pitch	20
Minimum Bore	8.2
F	3.9
Y	0.9
UNC	3/8

£18.00 ex VAT

Carmex Small Indexabe Carbide Threading Insert - Unified Full Profile - T8 - 8.3mm Min Bore - 24 TPI Pitch

SKU: T8I24UNBLU

Insert Size	T8
Pitch	24
Minimum Bore	8.3
F	4
Y	0.7
UNC	N/A

£18.00 ex VAT

Carmex Small Indexabe Carbide Threading Insert - Unified Full Profile - T8 - 8.3mm Min Bore - 28 TPI Pitch

SKU: T8I28UNBLU

Insert Size	T8
Pitch	28
Minimum Bore	8.3
F	4
Y	0.7
UNC	3/8

£19.03 ex VAT

Carmex Small Indexabe Carbide Threading Insert - Unified Full Profile - T8 - 8.3mm Min Bore - 32 TPI Pitch

SKU: T8I32UNBLU

Insert Size	T8
Pitch	32
Minimum Bore	8.3
F	4
Y	0.6
UNC	7/16

£19.03 ex VAT

Carmex Small Indexable Carbide Threading Insert - Full Profile ISO - T10 - M24, M28 x 3

SKU: T10I3.0ISOBLU

Insert Size	T10
Pitch	3.0
Minimum Bore	12.6
F	7.4
Y	1.6
Metric Coarse	M24

£18.00 ex VAT

Carmex Small Indexable Carbide Threading Insert - Full Profile ISO - T10 - M18, M20 x 2.5

SKU: T10I2.5ISOBLU

Insert Size	T10
Pitch	2.5
Minimum Bore	12.6
F	7.4
Y	1.4
Metric Coarse	M18

£18.00 ex VAT

Carmex Small Indexable Carbide Threading Insert - Full Profile ISO - T10 - M16, M17 x 2

SKU: T10I2.0ISOBLU

Insert Size	T10
Pitch	2.0
Minimum Bore	12.0
F	6.8
Y	1.3
Metric Coarse	M16

£18.00 ex VAT

Carmex Small Indexable Carbide Threading Insert - Full Profile ISO - T10 - M13 x 1

SKU: T10I1.0ISOBLU

Insert Size	T10
Pitch	1.0
Minimum Bore	11.7
F	6.5
Y	0.7
Metric Coarse	N/A

£18.00 ex VAT

Carmex Small Indexable Carbide Threading Insert - Full Profile ISO - T10 - M13 x 0.75

SKU: T10I0.75ISOBLU

Insert Size	T10
Pitch	0.75
Minimum Bore	11.3
F	6.1
Y	0.6
Metric Coarse	N/A

£19.03 ex VAT

Carmex Small Indexable Carbide Threading Insert - Full Profile ISO - T10 - M12 x 0.5

SKU: T10I0.5ISOBLU

Insert Size	T10
Pitch	0.5
Minimum Bore	11.3
F	6.1
Y	0.5
Metric Coarse	N/A

£19.03 ex VAT

Carmex Small Indexable Carbide Threading Insert - Full Profile ISO - T8 - M12 x 1.75

SKU: T8I1.75ISOBLU

Insert Size	T8
Pitch	1.75
Minimum Bore	8.6
F	4.3
Y	1.1
Metric Coarse	M12

£18.00 ex VAT

Carmex Small Indexable Carbide Threading Insert - Full Profile ISO - T8 - M10, M12 x 1.5

SKU: T8I1.5ISOBLU

Insert Size	T8
Pitch	1.5
Minimum Bore	8.4
F	4.1
Y	1
Metric Coarse	M10

£18.00 ex VAT

Carmex Small Indexable Carbide Threading Insert - Full Profile ISO - T8 - M10 x 1.25

SKU: T8I1.25ISOBLU

Insert Size	T8
Pitch	1.25
Minimum Bore	8.2
F	3.9
Y	0.8
Metric Coarse	N/A

£18.00 ex VAT

Carmex Small Indexable Carbide Threading Insert - Full Profile ISO - T8 - M9 x 1

SKU: T8I1.0ISOBLU

Insert Size	T8
Pitch	1
Minimum Bore	8
F	3.7
Y	0.7
Metric Coarse	N/A

£18.00 ex VAT

Carmex Small Indexable Carbide Threading Insert - Full Profile ISO - T8 - M9 x 0.75

SKU: T8I0.75ISOBLU

Insert Size	T8
Pitch	0.75
Minimum Bore	8.1
F	3.8
Y	0.6
Metric Coarse	N/A

£19.03 ex VAT
