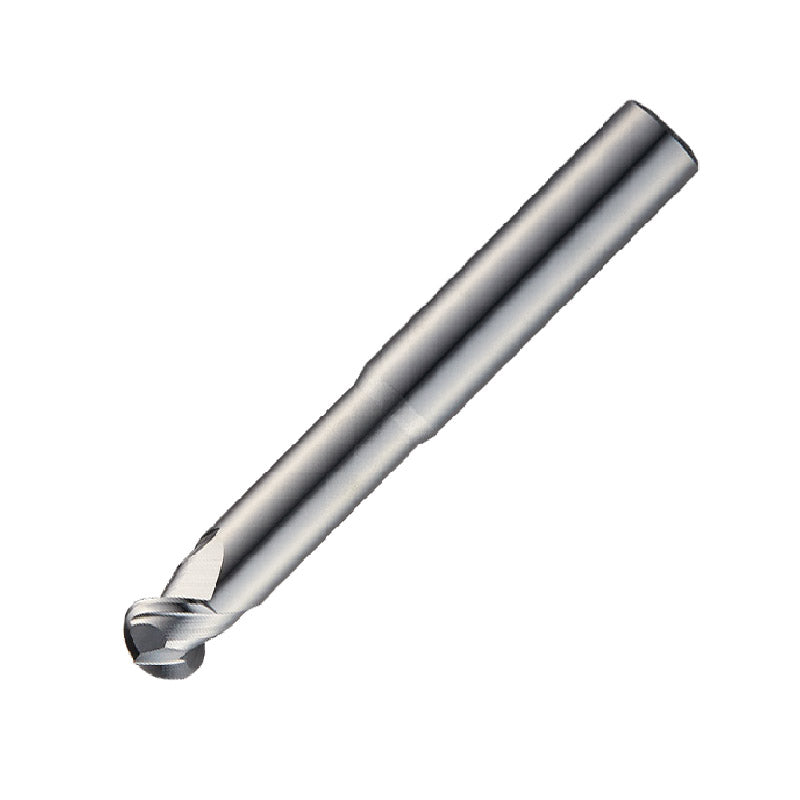

Widin Carbide End Mill For Aluminium & Non-Ferrous

2 Flute 50° Helix Ball Nose (WAB312)

This Widin Carbide End Mill for Aluminium & Non-Ferrous materials features a 2 Flute design with a 50° helix angle and a ball nose shape, making it an excellent choice for milling operations in aluminium and non-ferrous metals. This end mill is specifically engineered to provide optimal performance and efficiency when working with these materials. The 2 flute configuration ensures effective chip evacuation, reducing the risk of chip clogging and improving the overall machining process. The 50° helix angle helps to minimize chatter and vibration, resulting in smoother cutting and improved surface finish. The ball nose shape allows for contouring and profiling applications, enabling precise and intricate machining operations.

Starting from
£22.36
inc. VAT
In this range
13
products
In stock now
8
ready to dispatch
Browse all 13 products

Click any SKU to view full product details, specifications and datasheets.

Product SKU Cutter Diameter Number of Flutes Flute Length Overall Length Shank Diameter Neck Diameter Reach Radius Price Stock Order
AWB31206025 6 2 5.5 55 6 5.4 25 3 £40.65
£22.36
In Stock
AWB31206040 6 2 5.5 90 6 5.4 40 3 £67.78 In Stock
AWB31208030 8 2 7 65 8 7.2 30 4 £74.02
£32.57
In Stock
AWB31208050 8 2 7 100 8 7.2 50 4 £92.53
£40.71
In Stock
AWB31210035 10 2 8.5 75 10 9 35 5 £105.59
£46.46
In Stock
AWB31210050 10 2 10 100 10 9 50 5 £149.98
£65.99
In Stock
AWB31210060 10 2 10 150 10 9 60 5 £211.18 5 days
AWB31212040 12 2 10.5 75 12 11 40 6 £141.67
£62.34
In Stock
AWB31212050 12 2 12 110 12 11 50 6 £188.87
£83.11
In Stock
AWB31212060 12 2 12 150 12 11 60 6 £283.31 5 days
AWB31216050 16 2 14 90 16 14.5 50 8 £391.69 5 days
AWB31216070 16 2 16 150 16 14.5 70 8 £509.20 5 days
AWB31216090 16 2 16 200 16 14.5 90 8 £661.98 5 days
