Widin
|
Authorised UK Distributor

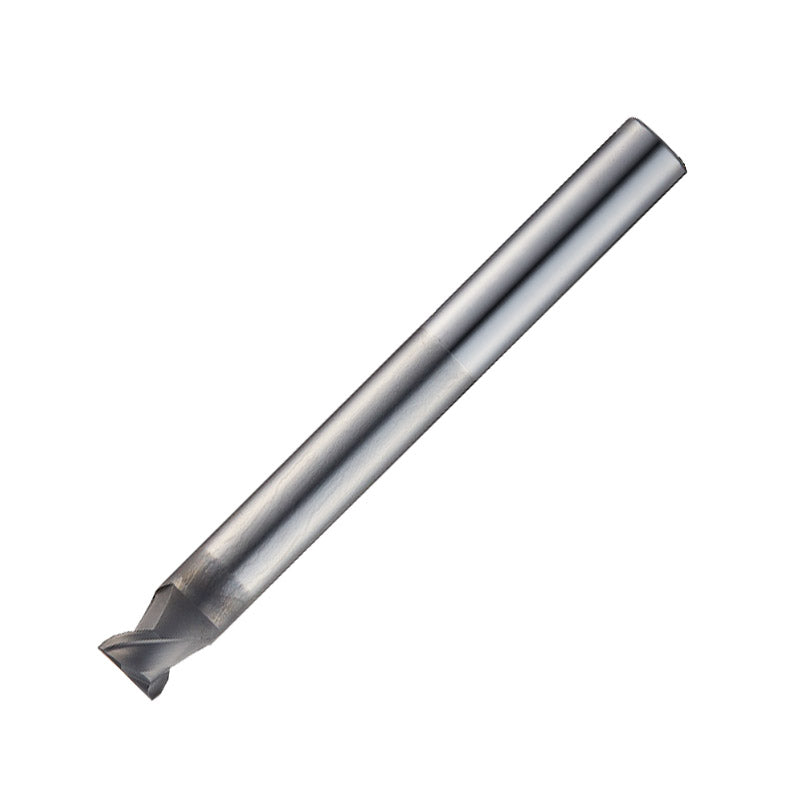

Widin Carbide Corner Radius End Mill For Graphite
2 Flute Neck Type (WGR502)
The Widin Carbide Corner Radius End Mill for Graphite with a 2 Flute Neck Type (WGR502) is a specialized cutting tool designed specifically for machining graphite materials with precision and efficiency. Graphite is widely used in various industries due to its unique properties, including high thermal conductivity and low friction. This end mill is specifically engineered to provide accurate and smooth cutting operations on graphite components. The 2 flute design and corner radius feature enhance the tool's chip evacuation capability and reduce the risk of tool breakage. The neck type design allows for increased stability and rigidity during machining, ensuring precise and reliable performance. The carbide construction of the end mill ensures excellent wear resistance and durability, allowing for extended tool life.
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| WGR502002 | 0.2 | 2 | 0.3 | 40 | 3 | N/A | N/A | £104.37 | 5 days |
|
| WGR502003 | 0.3 | 2 | 0.5 | 40 | 3 | N/A | N/A | £93.64 | 5 days |
|
| WGR502004 | 0.4 | 2 | 0.6 | 40 | 3 | N/A | N/A | £82.80 | 5 days |
|
| WGR502005025 | 0.5 | 2 | 0.7 | 40 | 3 | 2.5 | 0.05 | £75.93 | 5 days |
|
| WGR502005040 | 0.5 | 2 | 0.7 | 40 | 3 | 4 | 0.05 | £75.93 | 5 days |
|
| WGR502006030 | 0.6 | 2 | 0.9 | 40 | 3 | 3 | 0.05 | £75.93 | 5 days |
|
| WGR502008070 | 0.8 | 2 | 1.2 | 40 | 3 | 7 | 0.05 | £72.44 | 5 days |
|
| WGR502008040 | 0.8 | 2 | 1.2 | 40 | 3 | 4 | 0.05 | £72.44 | 5 days |
|
| WGR502006050 | 0.6 | 2 | 0.9 | 40 | 3 | 5 | 0.05 | £75.93 | 5 days |
|
| WGR502010050 | 1 | 2 | 1.5 | 40 | 3 | 5 | 0.1 | £59.53 | 5 days |
|
| WGR502010085 | 1 | 2 | 1.5 | 40 | 3 | 8.5 | 0.1 | £59.53 | 5 days |
|
| WGR502012060 | 1.2 | 2 | 1.8 | 50 | 3 | 6 | 0.1 | £59.53 | 5 days |
|
| WGR502012100 | 1.2 | 2 | 1.8 | 50 | 3 | 10 | 0.1 | £62.06 | 5 days |
|
| WGR502010120 | 1 | 2 | 1.5 | 40 | 3 | 12 | 0.1 | £62.06 | 5 days |
|
| WGR502015075 | 1.5 | 2 | 2.2 | 50 | 3 | 7.5 | 0.15 | £59.53 | 5 days |
|
| WGR502020100 | 2 | 2 | 2.2 | 60 | 3 | 10 | 0.15 | £62.06 | 5 days |
|
| WGR502015120 | 1.5 | 2 | 2.2 | 50 | 3 | 12 | 0.15 | £62.06 | 5 days |
|
| WGR502015180 | 1.5 | 2 | 2.2 | 50 | 3 | 18 | 0.15 | £64.72 | 5 days |
|
| WGR502030100 | 3 | 2 | 3 | 65 | 4 | 10 | 0.2 | £64.96 | 5 days |
|
| WGR502020250 | 2 | 2 | 2.2 | 60 | 3 | 25 | 0.15 | £64.72 | 5 days |
|
| WGR502030250 | 3 | 2 | 3 | 75 | 4 | 25 | 0.2 | £67.97 | 5 days |
|
| WGR502030200 | 3 | 2 | 3 | 65 | 4 | 20 | 0.2 | £64.96 | 5 days |
|
| WGR502030300 | 3 | 2 | 3 | 75 | 4 | 30 | 0.2 | £67.97 | 5 days |
|
| WGR502020160 | 2 | 2 | 2.2 | 60 | 3 | 16 | 0.15 | £62.06 | 5 days |
|
| WGR502030150 | 3 | 2 | 3 | 65 | 4 | 15 | 0.2 | £64.96 | 5 days |
|
| WGR502040300 | 4 | 2 | 4 | 75 | 6 | 30 | 0.2 | £71.03 | 5 days |
|
| WGR502050200 | 5 | 2 | 5 | 75 | 6 | 20 | 0.3 | £90.13 | 5 days |
|
| WGR502050400 | 5 | 2 | 5 | 90 | 6 | 40 | 0.3 | £92.73 | 5 days |
|
| WGR502040200 | 4 | 2 | 4 | 65 | 6 | 20 | 0.2 | £71.03 | 5 days |
|
| WGR502040400 | 4 | 2 | 4 | 90 | 6 | 40 | 0.2 | £71.03 | 5 days |
|
| WGR502050500 | 5 | 2 | 5 | 90 | 6 | 50 | 0.3 | £92.73 | 5 days |
|
| WGR502060500 | 6 | 2 | 6 | 90 | 6 | 50 | 0.3 | £92.73 | 5 days |
|
| WGR502060400 | 6 | 2 | 6 | 90 | 6 | 40 | 0.3 | £92.73 | 5 days |
|
| WGR502060300 | 6 | 2 | 6 | 75 | 6 | 30 | 0.3 | £90.13 | 5 days |
|
| WGR502060600 | 6 | 2 | 6 | 100 | 6 | 60 | 0.3 | £95.33 | 5 days |
|
| WGR502050300 | 5 | 2 | 5 | 75 | 6 | 30 | 0.3 | £90.13 | 5 days |
|
