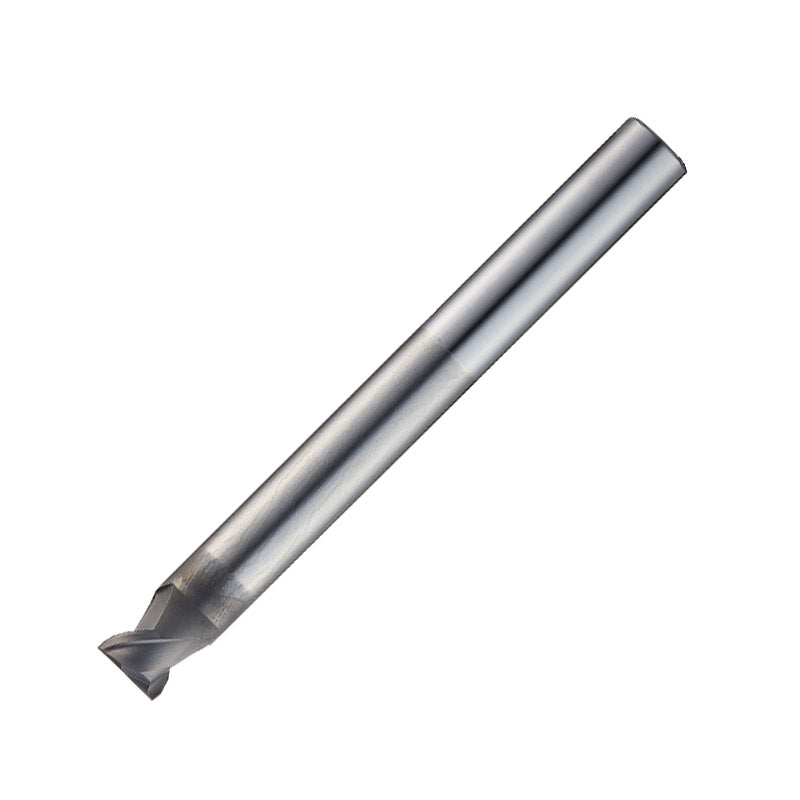

Widin Carbide Corner Radius End Mill For Graphite - 2 Flute Neck Type - 6mm x 50mmx R0.3
| Cutter Diameter | 6 |
| Number of Flutes | 2 |
| Flute Length | 6 |
| Overall Length | 90 |
| Shank Diameter | 6 |
| Reach | 50 |
Learn more about Klarna
The Widin Carbide Corner Radius End Mill for Graphite (WGR502) is a precision cutting tool designed for graphite machining, delivering accurate, smooth cuts with long tool life. Its 2‑flute neck‑type geometry and carbide construction are tailored for stable, efficient performance in graphite components.
- Diameter: 6 mm
- Overall Length: 50 mm
- Corner Radius: R0.3 mm
- Flute Count: 2-flute neck‑type design for effective chip evacuation
- Material: Carbide construction for superior wear resistance and durability
- Intended Material: Specifically optimized for graphite machining, leveraging graphite’s high thermal conductivity and low friction
This end mill is built to maintain stability and rigidity during cutting, which helps prevent deflection and reduces the risk of tool breakage when working with graphite. The small corner radius supports clean pocketing and contouring, while the neck‑type design improves clearance and tool life in demanding runs. With carbide’s hardness and wear resistance, you can expect consistent performance and extended tool life even in routine graphite production tasks.
| Cutter Diameter | 6 |
| Number of Flutes | 2 |
| Flute Length | 6 |
| Overall Length | 90 |
| Shank Diameter | 6 |
| Reach | 50 |
| Corner Radius | 0.3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Graphite - 2 Flute Neck Type (WGR502)
View full collection →You are viewing WGR502060500. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| WGR502002 | 0.2 | 2 | 0.3 | 40 | 3 | N/A | N/A | £104.37 | 5 days | |
| WGR502003 | 0.3 | 2 | 0.5 | 40 | 3 | N/A | N/A | £93.64 | 5 days | |
| WGR502004 | 0.4 | 2 | 0.6 | 40 | 3 | N/A | N/A | £82.80 | 5 days | |
| WGR502005025 | 0.5 | 2 | 0.7 | 40 | 3 | 2.5 | 0.05 | £75.93 | 5 days | |
| WGR502005040 | 0.5 | 2 | 0.7 | 40 | 3 | 4 | 0.05 | £75.93 | 5 days | |
| WGR502006030 | 0.6 | 2 | 0.9 | 40 | 3 | 3 | 0.05 | £75.93 | 5 days | |
| WGR502008070 | 0.8 | 2 | 1.2 | 40 | 3 | 7 | 0.05 | £72.44 | 5 days | |
| WGR502008040 | 0.8 | 2 | 1.2 | 40 | 3 | 4 | 0.05 | £72.44 | 5 days | |
| WGR502006050 | 0.6 | 2 | 0.9 | 40 | 3 | 5 | 0.05 | £75.93 | 5 days | |
| WGR502010050 | 1 | 2 | 1.5 | 40 | 3 | 5 | 0.1 | £59.53 | 5 days | |
| WGR502010085 | 1 | 2 | 1.5 | 40 | 3 | 8.5 | 0.1 | £59.53 | 5 days | |
| WGR502012060 | 1.2 | 2 | 1.8 | 50 | 3 | 6 | 0.1 | £59.53 | 5 days | |
| WGR502012100 | 1.2 | 2 | 1.8 | 50 | 3 | 10 | 0.1 | £62.06 | 5 days | |
| WGR502010120 | 1 | 2 | 1.5 | 40 | 3 | 12 | 0.1 | £62.06 | 5 days | |
| WGR502015075 | 1.5 | 2 | 2.2 | 50 | 3 | 7.5 | 0.15 | £59.53 | 5 days | |
| WGR502020100 | 2 | 2 | 2.2 | 60 | 3 | 10 | 0.15 | £62.06 | 5 days | |
| WGR502015120 | 1.5 | 2 | 2.2 | 50 | 3 | 12 | 0.15 | £62.06 | 5 days | |
| WGR502015180 | 1.5 | 2 | 2.2 | 50 | 3 | 18 | 0.15 | £64.72 | 5 days | |
| WGR502030100 | 3 | 2 | 3 | 65 | 4 | 10 | 0.2 | £64.96 | 5 days | |
| WGR502020250 | 2 | 2 | 2.2 | 60 | 3 | 25 | 0.15 | £64.72 | 5 days | |
| WGR502030250 | 3 | 2 | 3 | 75 | 4 | 25 | 0.2 | £67.97 | 5 days | |
| WGR502030200 | 3 | 2 | 3 | 65 | 4 | 20 | 0.2 | £64.96 | 5 days | |
| WGR502030300 | 3 | 2 | 3 | 75 | 4 | 30 | 0.2 | £67.97 | 5 days | |
| WGR502020160 | 2 | 2 | 2.2 | 60 | 3 | 16 | 0.15 | £62.06 | 5 days | |
| WGR502030150 | 3 | 2 | 3 | 65 | 4 | 15 | 0.2 | £64.96 | 5 days | |
| WGR502040300 | 4 | 2 | 4 | 75 | 6 | 30 | 0.2 | £71.03 | 5 days | |
| WGR502050200 | 5 | 2 | 5 | 75 | 6 | 20 | 0.3 | £90.13 | 5 days | |
| WGR502050400 | 5 | 2 | 5 | 90 | 6 | 40 | 0.3 | £92.73 | 5 days | |
| WGR502040200 | 4 | 2 | 4 | 65 | 6 | 20 | 0.2 | £71.03 | 5 days | |
| WGR502040400 | 4 | 2 | 4 | 90 | 6 | 40 | 0.2 | £71.03 | 5 days | |
| WGR502050500 | 5 | 2 | 5 | 90 | 6 | 50 | 0.3 | £92.73 | 5 days | |
| WGR502060500 Viewing | 6 | 2 | 6 | 90 | 6 | 50 | 0.3 | £92.73 | 5 days | |
| WGR502060400 | 6 | 2 | 6 | 90 | 6 | 40 | 0.3 | £92.73 | 5 days | |
| WGR502060300 | 6 | 2 | 6 | 75 | 6 | 30 | 0.3 | £90.13 | 5 days | |
| WGR502060600 | 6 | 2 | 6 | 100 | 6 | 60 | 0.3 | £95.33 | 5 days | |
| WGR502050300 | 5 | 2 | 5 | 75 | 6 | 30 | 0.3 | £90.13 | 5 days |
