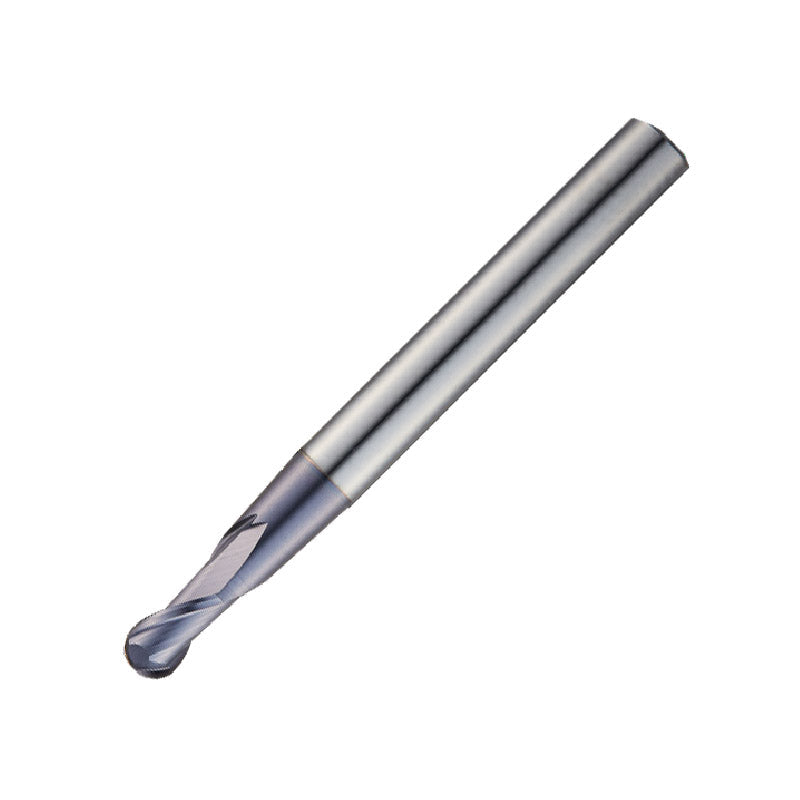

Widin Carbide End Mill - Ball Nose - 2 Flute Tapered Neck Type - 1mm x 60mm x23mm

Widin Carbide End Mill - Ball Nose - 2 Flute Tapered Neck Type (DB342)


From
£36.28
View Products
Need Help?
Contact Sales

A specialized cutting tool designed for precise and efficient milling operations. Its unique tapered neck design allows for extended reach and access to tight spaces, making it ideal for intricate and complex machining tasks. The ball nose shape and 2-flute configuration enable smooth and accurate contouring, profiling, and finishing operations on a variety of materials. The carbide construction ensures exceptional durability and heat resistance, enabling the end mill to withstand high-speed cutting and prolonged use without compromising performance. With its tapered neck design, the DB342 offers enhanced stability and reduced vibration during machining, resulting in improved surface finish and dimensional accuracy.


Product SKU Cutter Diameter Number of Flutes Flute Length Overall Length Shank Diameter Reach Radius Extended Reach Taper Angle Price Stock
DB34201050 1 2 2 60 6 4 0.5 23 £36.52

5 days

DB34201015 1 2 2 60 6 4 0.5 23 1°30° £36.52

5 days

DB34201030 1 2 2 80 6 4 0.5 42 £40.50

5 days

DB34202015 2 2 4 60 6 6 1 23 1°30° £36.28

5 days

DB34202050 2 2 4 60 6 6 1 23 £36.28

5 days

DB34202030 2 2 4 80 6 6 1 41 £40.83

5 days

DB34203030 3 2 6 70 6 8 1.5 32 1°30° £38.57

5 days

DB34203015 3 2 6 90 6 8 1.5 52 £47.63

5 days

DB34204030 4 2 8 70 6 10 2 28 1°30° £36.28

5 days

DB34204015 4 2 8 90 6 10 2 49 £47.63

5 days

DB34205030 5 2 10 90 8 12 2.5 41 1°30° £58.98

5 days

DB34205015 5 2 10 110 8 12 2.5 61 £65.78

5 days

DB34206030 6 2 12 90 8 15 3 34 1°30° £58.98

5 days

DB34206015 6 2 12 110 8 15 3 61 £65.78

5 days

DB34208030 8 2 14 100 10 17 4 36 1°30° £74.87

5 days

DB34208015 8 2 14 120 10 17 4 55 £79.39

5 days

DB34210030 10 2 18 110 12 21 5 40 1°30° £83.93

5 days

DB34210015 10 2 18 130 12 21 5 59 £88.46

5 days

DB34212030 12 2 22 140 16 25 6 63 £176.93

5 days

DB34212015 12 2 22 160 16 25 6 83 1°30° £220.04

5 days
