Widin Carbide End Mill - Ball Nose - 2 Flute Tapered Neck Type - 10mm x 110mm x40mm

SKU:DB34210030

Introducing the Widin Carbide End Mill — Ball Nose, 2 Flute, Tapered Neck Type. With 10 mm diameter, 110 mm overall length, and 40 mm cutting length, this tool is designed for precision milling w... Read more ↓
P
Cutter Diameter10
Number of Flutes2
Flute Length18
Overall Length110
View all specifications ↓
Download Cutting Data
£109.14
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

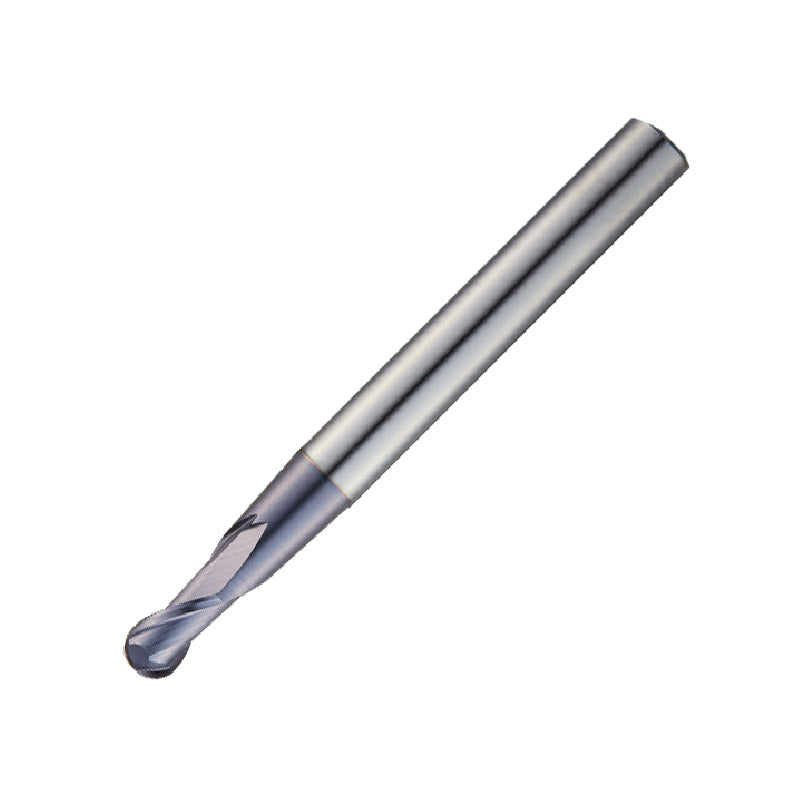

Introducing the Widin Carbide End Mill — Ball Nose, 2 Flute, Tapered Neck Type. With 10 mm diameter, 110 mm overall length, and 40 mm cutting length, this tool is designed for precision milling where reach and accuracy matter. The tapered neck extends into tight spaces while the ball nose profile delivers smooth contours and clean finishes across a variety of materials.

  • Tapered Neck for Extended Reach and Stability: Access tight pockets and complex geometries with reduced tool deflection and improved surface quality, enabling precise work in hard-to-reach areas.
  • Ball Nose, 2-Flute Geometry for Smooth Contouring: Delivers accurate 3D contours and consistent finishes with efficient chip evacuation, helping you achieve premium surface quality on complex parts.
  • Carbide Construction for Durability and Heat Resistance: Withstands high-speed cutting and long production runs, maintaining sharpness and precision without frequent tool changes.

The Widin end mill supports faster, more reliable machining of intricate features. Its combination of reach, contouring capability, and robust carbide performance translates to smoother workflows, reduced rework, and dependable results across a wide range of materials.

Part Numbers

Protool Part Number
DB34210030
Brand
Widin
Category
End Mill
Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Not sure if this is the right tool for your job? Ask us about speeds and feeds, material suitability, holders or alternatives — 30+ years of machining experience on the other end.

Prefer to talk? Call 01732 887334 — Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Full Range: Widin Carbide End Mill - Ball Nose - 2 Flute Tapered Neck Type (DB342)

View full collection →

You are viewing DB34210030. Click any other SKU to view its full details.

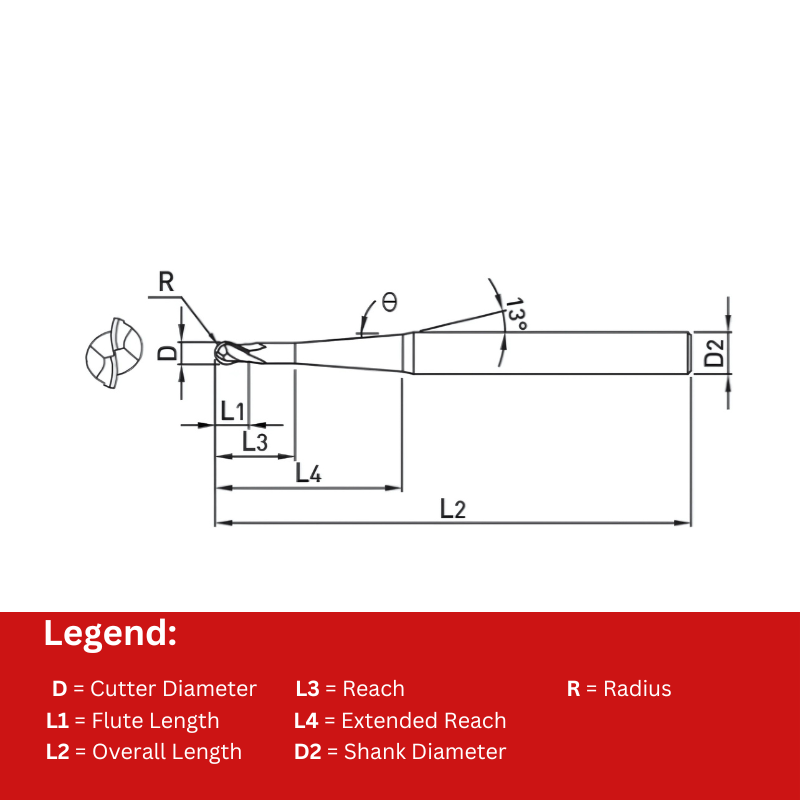

Product SKUCutter DiameterNumber of FlutesFlute LengthOverall LengthShank DiameterReachRadiusExtended ReachTaper AnglePriceStock Order
DB34201050 12260640.523£36.10 5 days
DB34201015 12260640.5231°30°£36.10 5 days
DB34201030 12280640.542£40.04 5 days
DB34202015 22460661231°30°£35.88 5 days
DB34202050 2246066123£35.88 5 days
DB34202030 2248066141£40.36 5 days
DB34203030 32670681.5321°30°£38.12 5 days
DB34203015 32690681.552£47.10 In Stock
DB34204030 428706102281°30°£35.88 5 days
DB34204015 42890610249£47.10 In Stock
DB34205030 5210908122.5411°30°£63.22 5 days
DB34205015 52101108122.561£70.52 5 days
DB34206030 6212908153341°30°£63.22 5 days
DB34206015 6212110815361£70.52 5 days
DB34208030 821410010174361°30°£85.96 5 days
DB34208015 82141201017455£91.18 5 days
DB34210030 Viewing1021811012215401°30°£109.14 5 days
DB34210015 102181301221559£115.04 5 days
DB34212030 122221401625663£294.84 5 days
DB34212015 1222216016256831°30°£366.66 5 days
