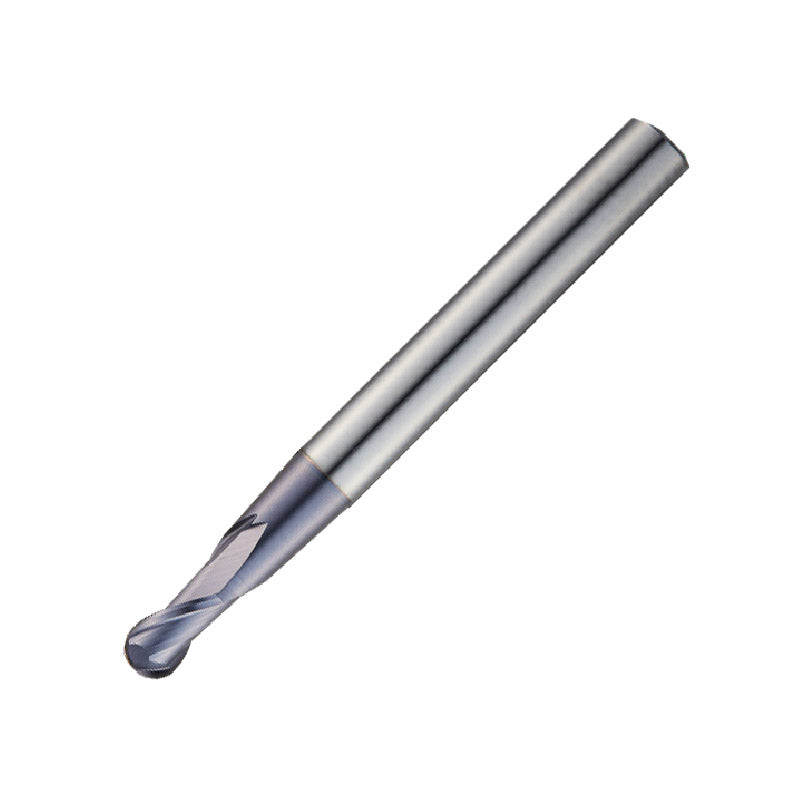

Widin Carbide End Mill - Ball Nose - 2 Flute Tapered Neck Type - 3mm x 90mm x52mm

SKU:DB34203015

A specialized cutting tool designed for precise and efficient milling operations. Its unique tapered neck design allows for extended reach and access to tight spaces, making it ideal for intricate ... Read more ↓
P
Cutter Diameter3
Number of Flutes2
Flute Length6
Overall Length90
Shank Diameter6
Reach8
View all specifications ↓
Download Cutting Data
£24.90 £50.94
Prices shown ex. VAT
In Stock— only 1 left
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

A specialized cutting tool designed for precise and efficient milling operations. Its unique tapered neck design allows for extended reach and access to tight spaces, making it ideal for intricate and complex machining tasks. The ball nose shape and 2-flute configuration enable smooth and accurate contouring, profiling, and finishing operations on a variety of materials. The carbide construction ensures exceptional durability and heat resistance, enabling the end mill to withstand high-speed cutting and prolonged use without compromising performance. With its tapered neck design, the DB342 offers enhanced stability and reduced vibration during machining, resulting in improved surface finish and dimensional accuracy.

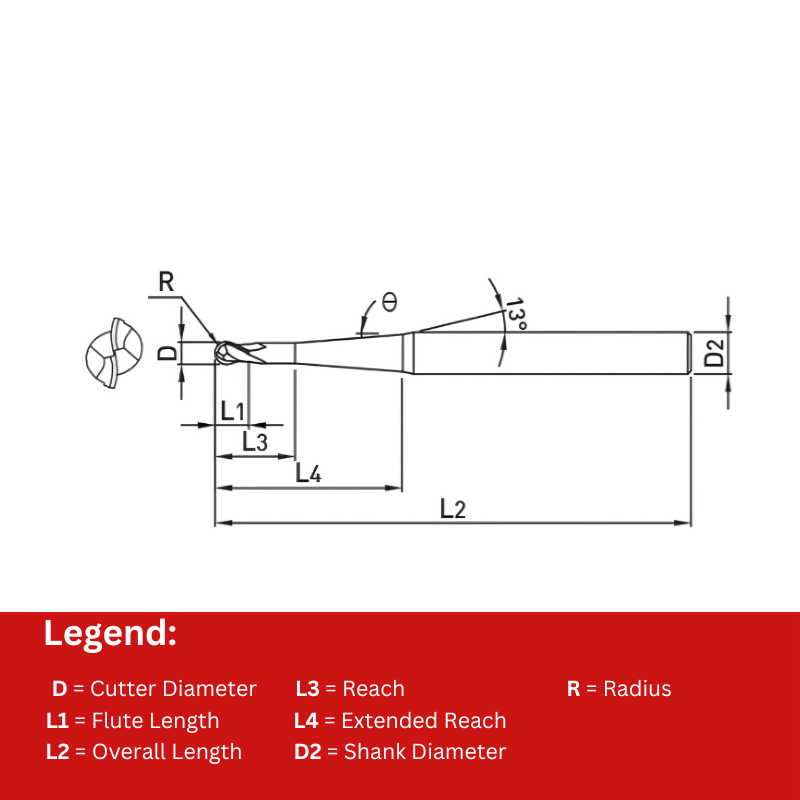

Cutter Diameter 3
Number of Flutes 2
Flute Length 6
Overall Length 90
Shank Diameter 6
Reach 8
Radius 1.5
Extended Reach 52
Taper Angle

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Widin Carbide End Mill - Ball Nose - 2 Flute Tapered Neck Type (DB342)

View full collection →

You are viewing DB34203015. Click any other SKU to view its full details.

Product SKUCutter DiameterNumber of FlutesFlute LengthOverall LengthShank DiameterReachRadiusExtended ReachTaper AnglePriceStock Order
DB34201050 12260640.523£39.05 5 days
DB34201015 12260640.5231°30°£39.05 5 days
DB34201030 12280640.542£43.29 5 days
DB34202015 22460661231°30°£38.80 5 days
DB34202050 2246066123£38.80 5 days
DB34202030 2248066141£43.66 5 days
DB34203030 32670681.5321°30°£41.23 5 days
DB34203015 Viewing32690681.552£50.94
£24.90
In Stock
DB34204030 428706102281°30°£38.80 5 days
DB34204015 42890610249£50.94
£24.90
In Stock
DB34205030 5210908122.5411°30°£66.58 5 days
DB34205015 52101108122.561£74.27 5 days
DB34206030 6212908153341°30°£66.58 5 days
DB34206015 6212110815361£74.27 5 days
DB34208030 821410010174361°30°£86.78 5 days
DB34208015 82141201017455£92.03 5 days
DB34210030 1021811012215401°30°£105.75 5 days
DB34210015 102181301221559£111.47 5 days
DB34212030 122221401625663£274.70 5 days
DB34212015 1222216016256831°30°£341.61 5 days
