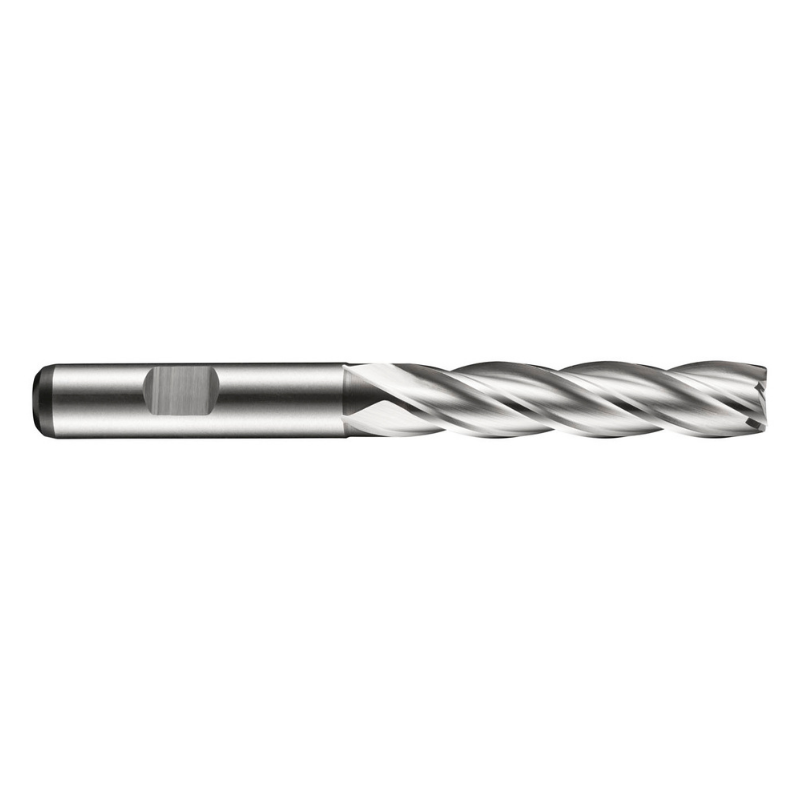

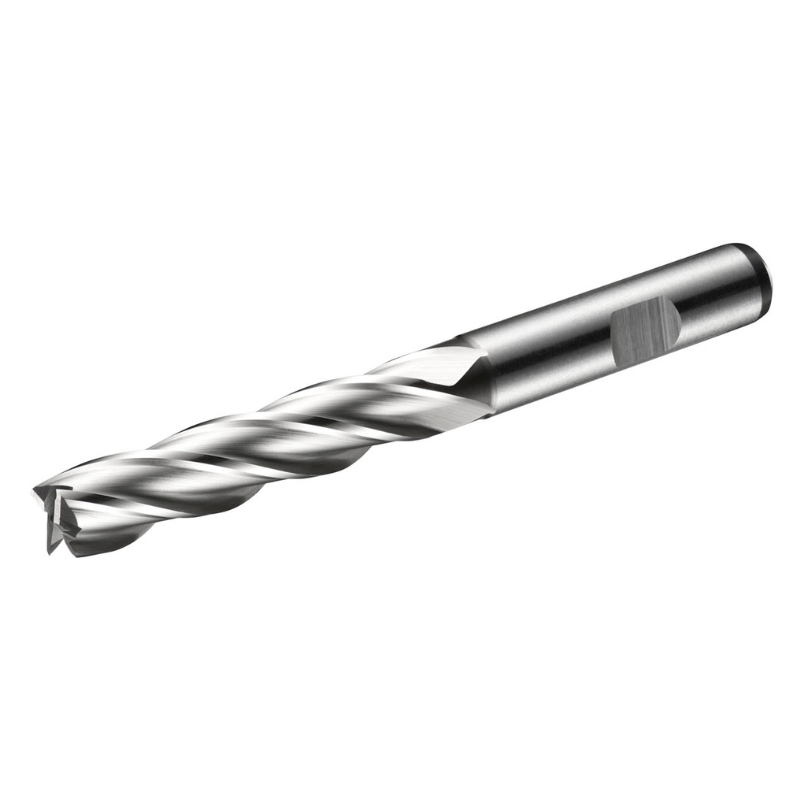

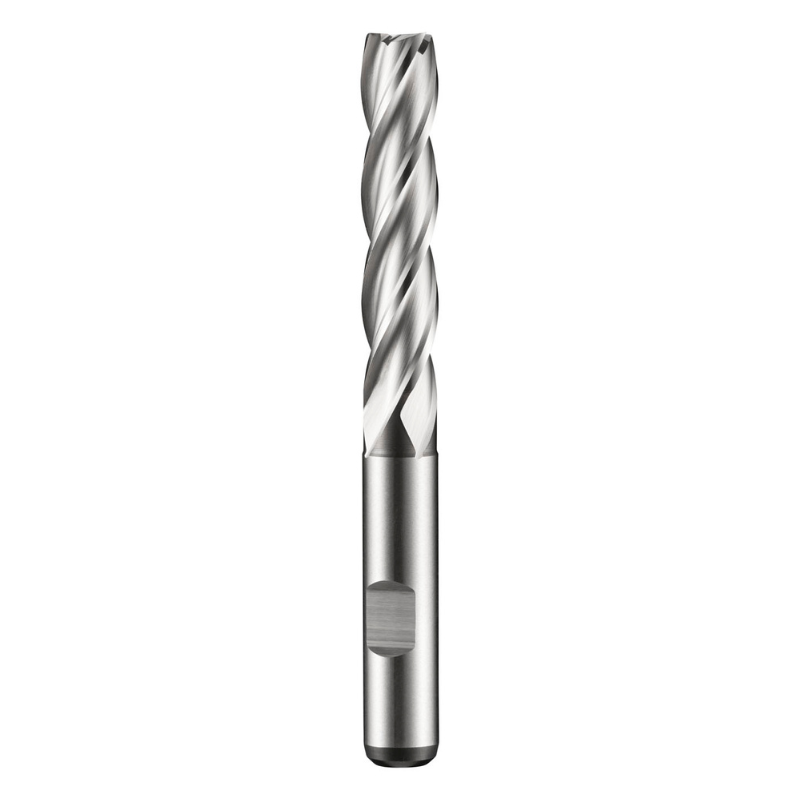

Dormer Pramet C273 13.0mm HSS-E-Powder Metal Flatted Shank Multi-Flute Long Series End Mill DIN 844 L

The Dormer Pramet C273 13.0 mm HSS-E-PM long-series end mill is a four-flute cutting tool designed for shoulder and slot milling in free-machining steels and copper alloys. With a 12 mm Weldon shank and DIN 844 L compliance, it delivers deep reach and reliable performance in demanding milling tasks.

• Diameter: 13.0 mm
• Length of cut: 53.0 mm
• Overall length: 110.0 mm
• Reach with neck relief: 64.5 mm
• Shank: 12 mm Weldon shank
• Material: HSS-E-PM (powder-metallurgical high-speed steel) with bright finish
• Flutes: 4
• Helix angle: 30°
• Rake angle: 12°
• Standard: DIN 844 L
• Applications: shoulder milling and slot milling in free machining and plain carbon steel and copper or copper alloys
• Finish: Bright finish (uncoated)

This end mill is crafted for deep profiling where accuracy and surface finish matter. The long-series geometry provides extended reach for cutting deeper features without compromising rigidity, while the four flutes balance efficient material removal with smooth chip evacuation. The 30° helix and 12° rake angle optimize cutting action in the specified workpiece materials, helping to reduce rubbing and improve surface quality. The powder-metallurgical HSS-E base offers enhanced wear resistance and toughness compared to conventional high-speed steels, delivering longer tool life in repetitive milling cycles. The DIN 844 L standard ensures compatibility with common tool holders, simplifying setup and interchangeability in professional shop environments.
