Carbide Solid Milling

Ball Nose, Square Edge, Corner Radius, Roughing, Tapered, Chamfer Edge, Lollipop and Router profiles in solid carbide
View All

Shop By Profile

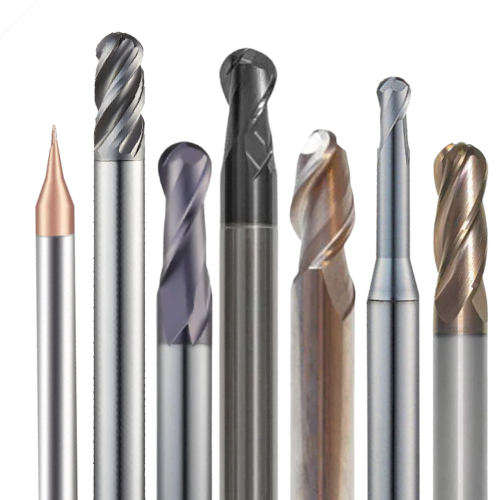

Ball Nose
Ball Nose End Mills deliver smooth contouring and 3D profiling with excellent surface finish for complex shapes and curved surfaces.
Shop Now

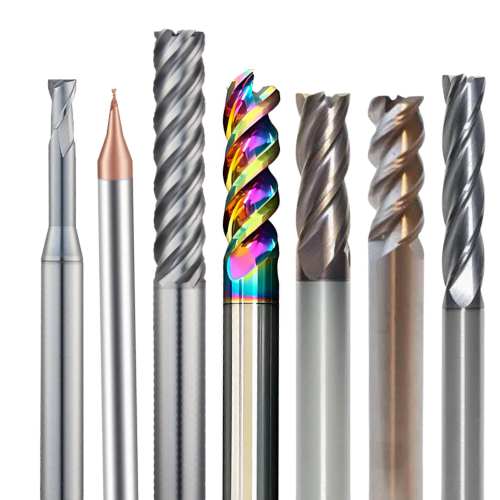

Square Edge
Square Edge End Mills deliver sharp, precise 90° cuts for accurate slotting, profiling, and general-purpose milling.
Shop Now

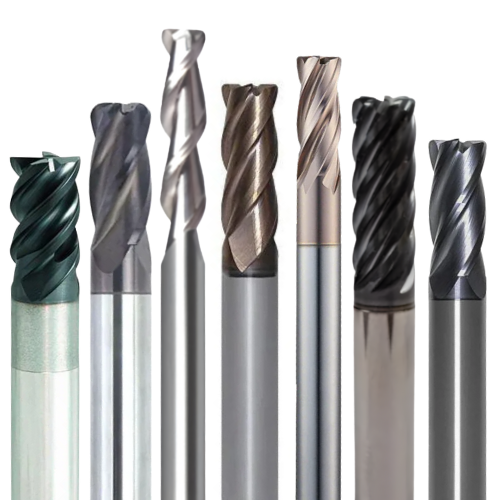

Corner Radius
Corner Radius End Mills improve tool strength and extend life while producing reinforced, smooth radiused edges on parts.
Shop Now

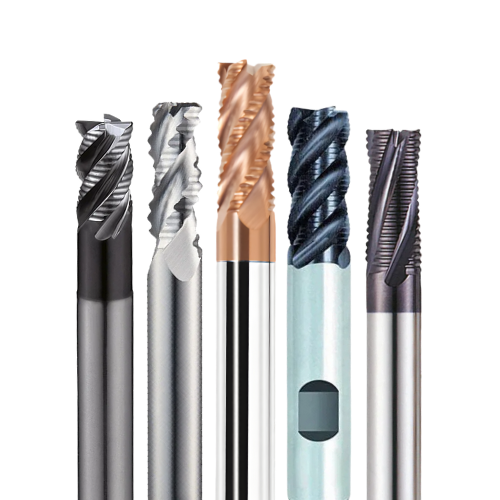

Rougher / Ripper
Roughing End Mills remove material aggressively with reduced cutting forces, ideal for fast stock removal and high productivity.
Shop Now

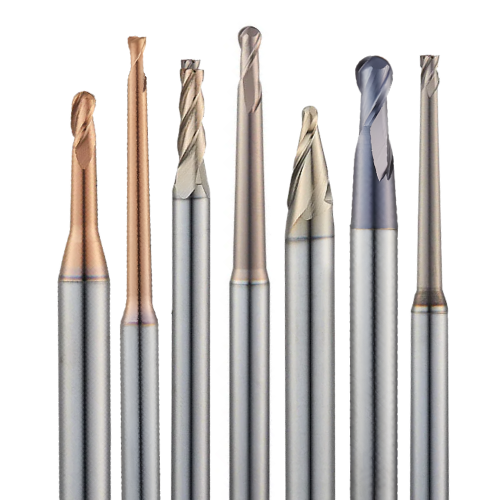

Tappered
Tapered End Mills offer increased rigidity for deep milling, angled walls, and tight-tolerance mould or cavity machining & pacific tapers for pacific threads & thread tapers.
Shop Now

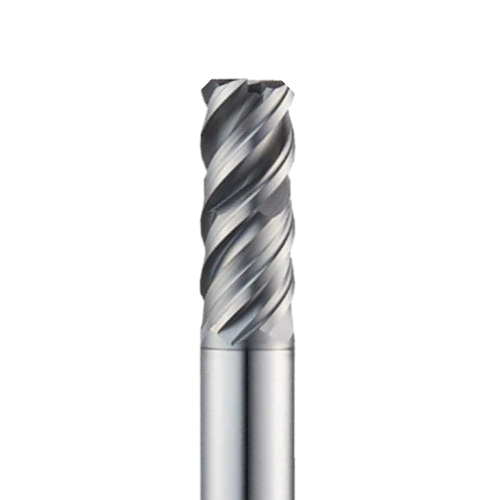

Chamfer Edge
Chamfer Edge End Mills feature a small protective chamfer that strengthens the cutting edge, reduces chipping, and extends overall tool life. Ideal for improving durability in demanding milling applications.
Shop Now

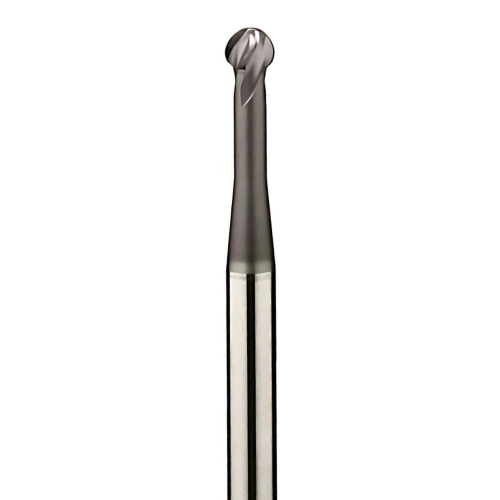

Lollipop
Lollipop End Mills are designed for undercutting, 5-axis machining, and hard-to-reach profiles with exceptional control.
Shop Now

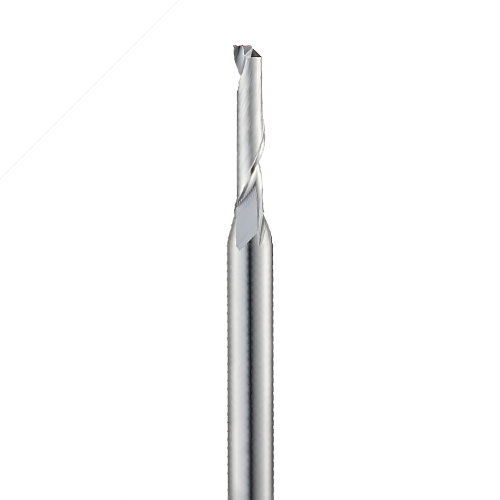

Router
Router End Mills provide clean, accurate cuts in plastics, composites, aluminium, and wood with excellent chip control.
Shop Now
Widin ESRB712 ESTAR Series · AlTiN Nano PVD

Rib Processing
End Mills

±0.005mm
Tolerance
HRc 60
Max Hardness
13°
Neck Relief
0.1mm
Min Diameter
◆ Formula 1 Aerospace Medical Mould & Die
Find Out More → Full Range ↓ Catalogue
Widin ESRB712 ESTAR Series Rib Processing End Mills

Best Selling Products in This Category

Our most popular products

Widin Carbide Rib Processing End Mill - 2 Flute Ball Nose (ESRB71202012) - 2mm x 12mm(4mm Shank Dia)
★ Best Seller

Widin Carbide Rib Processing End Mill - 2 Flute Ball Nose (ESRB71202012) - 2mm x 12mm(4mm Shank Dia)

£26.59
by Widin

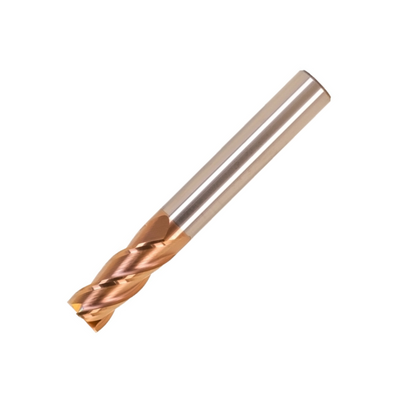

Vortex Carbide End Mill - 4 Flute Square Edge - TiSiN Coated - 10mm x 75mm
★ Best Seller

Vortex Carbide End Mill - 4 Flute Square Edge - TiSiN Coated - 10mm x 75mm

£31.85
by Vortex
Vortex Carbide End Mill - 4 Flute Square Edge - TiSiN Coated - 12mm x 75mm
★ Best Seller

Vortex Carbide End Mill - 4 Flute Square Edge - TiSiN Coated - 12mm x 75mm

£45.87
by Vortex
Vortex Carbide End Mill - 4 Flute Square Edge - TiSiN Coated - 6mm x 50mm

Vortex Carbide End Mill - 4 Flute Square Edge - TiSiN Coated - 6mm x 50mm

£7.96
by Vortex
See all products in this category →

Solid carbide end mills hold their cutting edge at higher speeds and temperatures than HSS, which is why they're the standard choice once you move beyond aluminium and plastics into steel, stainless and hardened material.

Flute count is the first thing to get right: 2 or 3 flutes with polished flutes clear chips fast and suit aluminium and other soft, gummy materials, while 4 or more flutes suit steel and stainless, where chip load per tooth is lower and heat resistance matters more than clearance.

Coating matters as much as flute geometry. TiAlN and AlTiN coatings handle the heat generated machining hardened and alloy steels; DLC (diamond-like carbon) coatings reduce built-up edge when cutting aluminium and other non-ferrous metals.

All eight profiles above are held in UK stock, same-day dispatch before 4pm.

Carbide end mills are harder and more heat-resistant than High-Speed Steel (HSS), allowing them to run at higher speeds and hold an edge longer. HSS tools cost less upfront, but carbide is the better choice for production runs and harder materials.

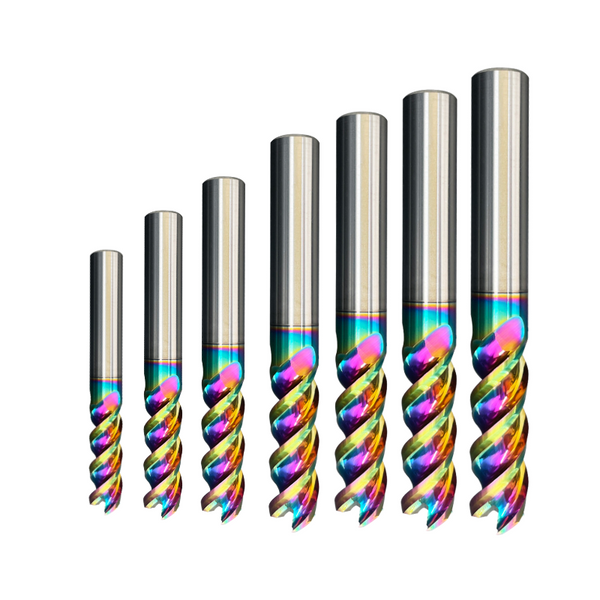

For aluminium, use an end mill with fewer flutes (2 or 3) and polished flutes. Fewer, polished flutes evacuate chips faster and stop material sticking to the cutter, which gives a better finish and longer tool life in soft, gummy metals.

For hardened steel, use a coated carbide end mill built for high-hardness materials, typically with a TiAlN or AlTiN coating. These handle the heat generated in hardened steel better and resist wear that would blunt an uncoated tool quickly.

A square end mill cuts a sharp 90° internal corner, suited to general-purpose milling. A corner radius end mill has a rounded cutting edge instead, which is stronger and more chip-resistant, making it the better option for heavy cuts or high-speed roughing.

TiAlN and AlTiN coatings suit high-temperature work in steel and alloys. DLC (diamond-like carbon) coatings suit non-ferrous materials like aluminium, where the priority is stopping material sticking to the cutting edge rather than resisting heat.
