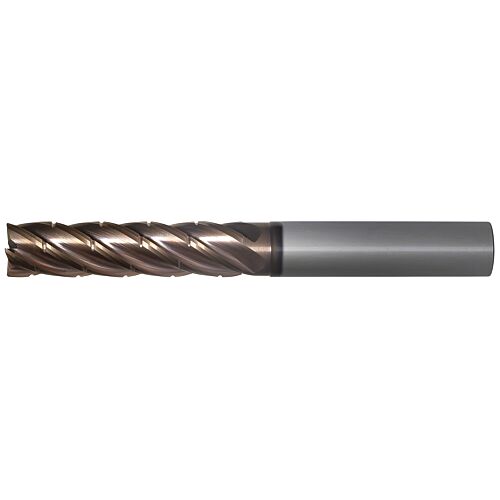

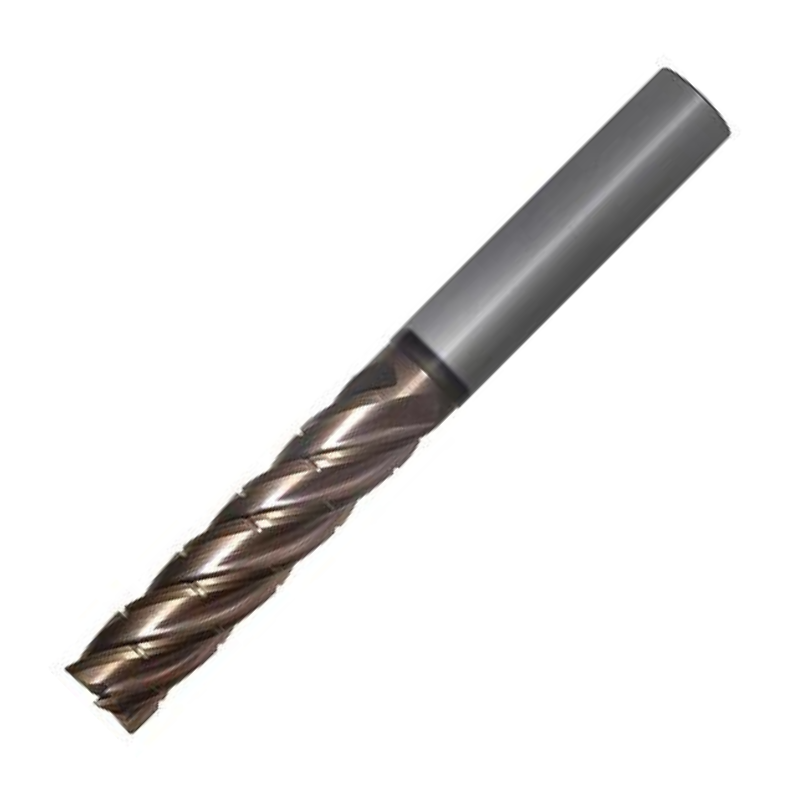

OSG Carbide 5 Flute End Mill Square Edge - Long Length With Chipbreaker - For Side Milling upto 4xD - 12mm

OSG-485-4724-N11

Availability: In Stock

The OSG Carbide 5 Flute End Mill Square Edge with a long length design and a built-in chipbreaker is a specialized tool designed for side milling applications with an impressive reach of up to 4 times the diameter of the tool (4xD). The five flutes provide enhanced stability and excellent material removal, making it ideal for demanding side milling tasks. The chipbreaker feature aids in efficient chip evacuation and reduces the risk of chip jamming. This end mill is a valuable asset for machinists who require high-performance and precision in side milling applications where extended reach and chip control are critical.

Cutter Diameter 12
Number of Flutes 5
Flute Length 50
Overall Length 103
Shank Diameter 12
Reach 56
Neck Diameter 11.5

Steel
Cast Iron
Exotics
Hardened Steel

View Other Sizes
The OSG Carbide 5 Flute End Mill Square Edge with a long length design and a built-in chipbreaker is a specialized tool designed for side milling applications with an impressive reach of up to 4 times the diameter of the tool (4xD). The five flutes provide enhanced stability and excellent material removal, making it ideal for demanding side milling tasks. The chipbreaker feature aids in efficient chip evacuation and reduces the risk of chip jamming. This end mill is a valuable asset for machinists who require high-performance and precision in side milling applications where extended reach and chip control are critical.

Cutter Diameter 12
Number of Flutes 5
Flute Length 50
Overall Length 103
Shank Diameter 12
Reach 56
Neck Diameter 11.5

Steel
Cast Iron
Exotics
Hardened Steel

View Other Sizes
