Dormer Pramet C126 5.0mm HSS-E-Powder Metal TICN Flatted Shank 2 Flute Short Series Slot Drill DIN 327 D
DOR-C1265.0
Availability: 2 Days Estimated lead time, subject to availability
No extra cost if paid on time. 18+ only.
Learn more about Klarna
The Dormer Pramet C126 5.0 mm slot drill is a compact, two-flute cutting tool designed for precise shoulder and slot milling in tight spaces. With a rigid, flatted shank and TiCN-coated HS... Read more

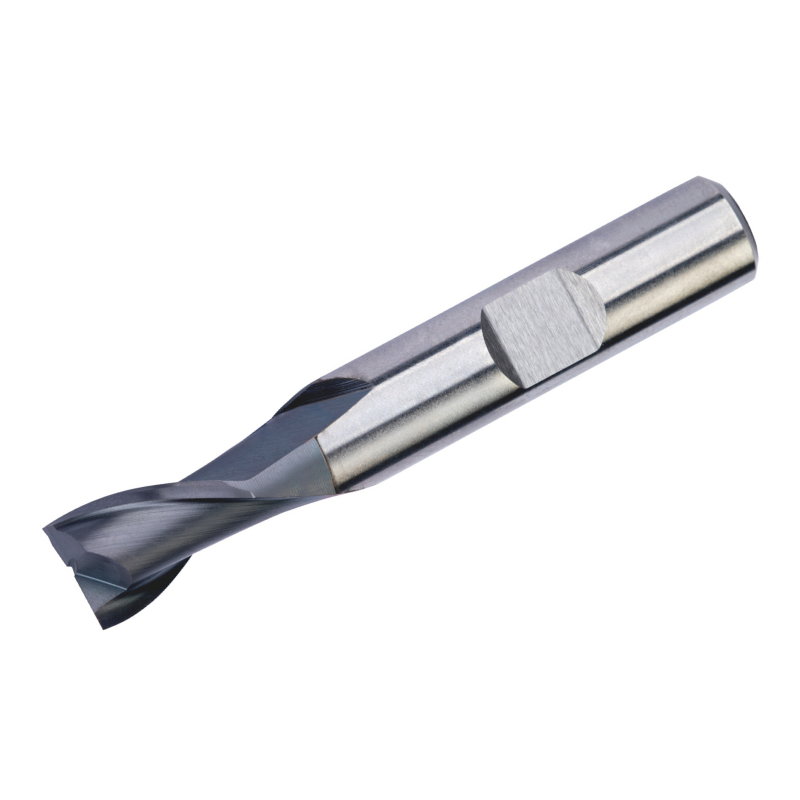

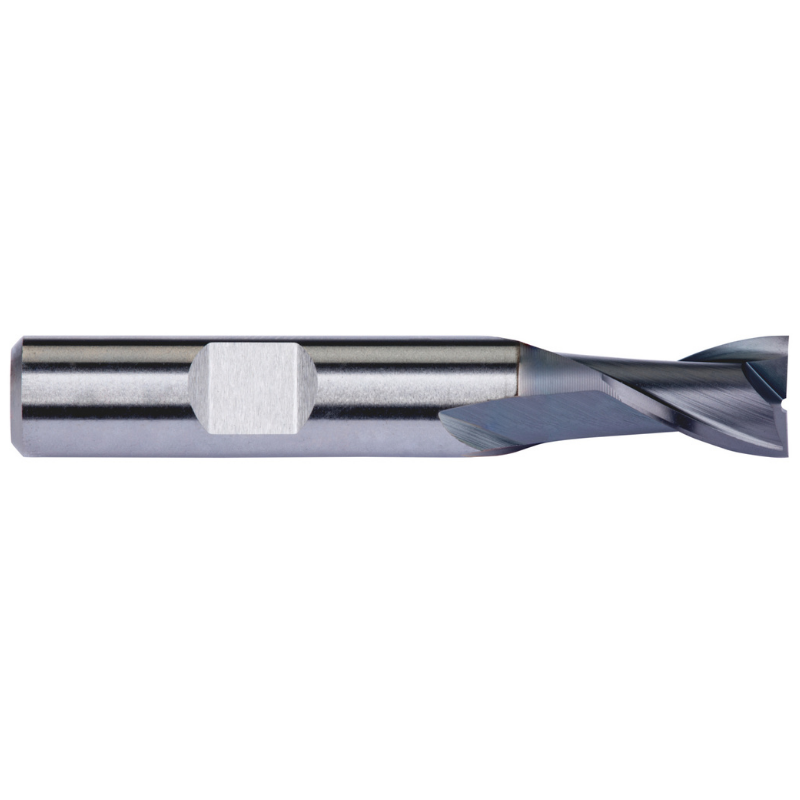

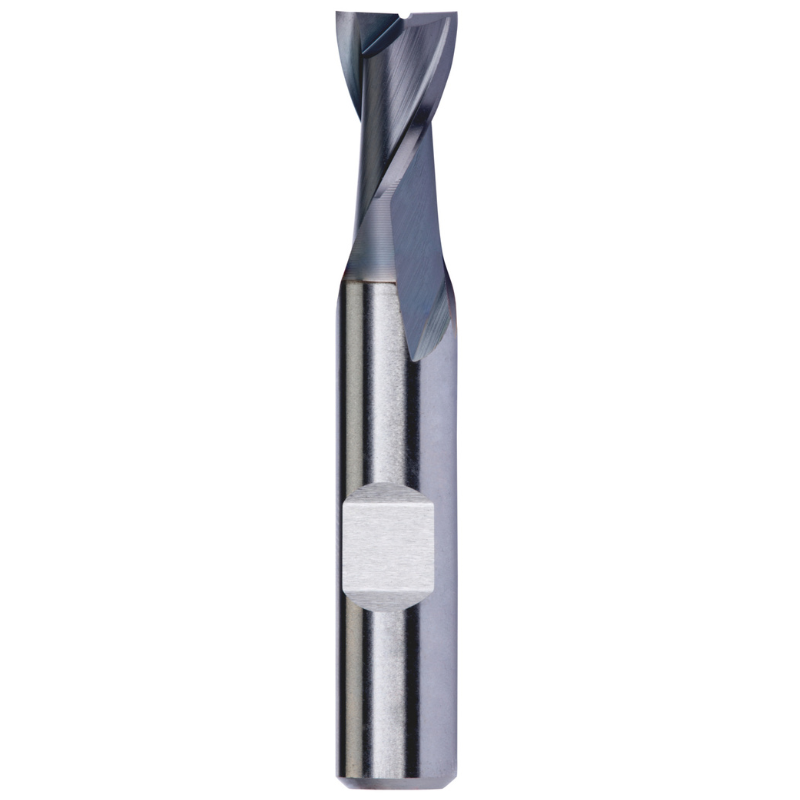

The Dormer Pramet C126 5.0 mm slot drill is a compact, two-flute cutting tool designed for precise shoulder and slot milling in tight spaces. With a rigid, flatted shank and TiCN-coated HSS‑E powder metallurgy substrate, it delivers dependable performance across common engineering materials.

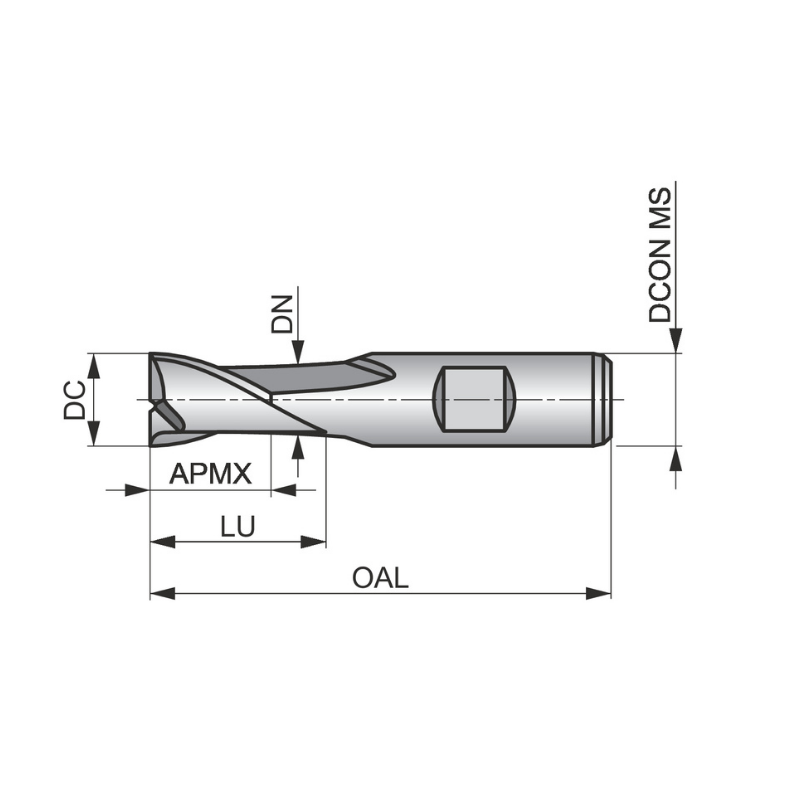

- Diameter: 5.0 mm
- Length of Cut: 8 mm
- Overall Length: 52 mm
- Shank: Weldon 6 mm
- Flutes: 2
- Material and Coating: HSS‑E, powder metallurgy with TiCN coating
- Helix Angle: 30°
- Rake Angle: 12°
- Standard: DIN 327 D
- Applications: Shoulder milling, slot milling, and ramping
- Material Suitability: Free-machining steels, plain carbon and alloy steels, cast iron, copper/copper alloys, titanium/titanium alloys
This tool is optimized for rigid, high-precision operations in constrained pockets and narrow slots. The 2-flute geometry promotes efficient chip evacuation in slot milling, while the TiCN coating reduces wear and helps extend tool life in challenging materials. The 6 mm Weldon shank provides secure clamping for minimal runout and stable cutting, enhancing surface finish and dimensional accuracy. Designed to DIN 327 D specifications, it fits standard collet and chuck systems used in machining centers and milling machines.
