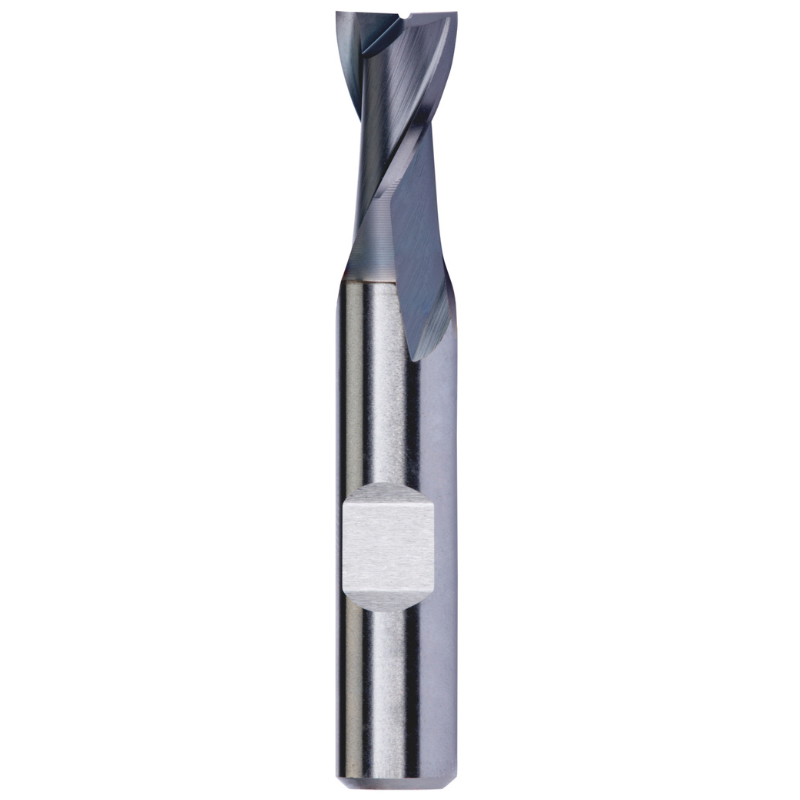

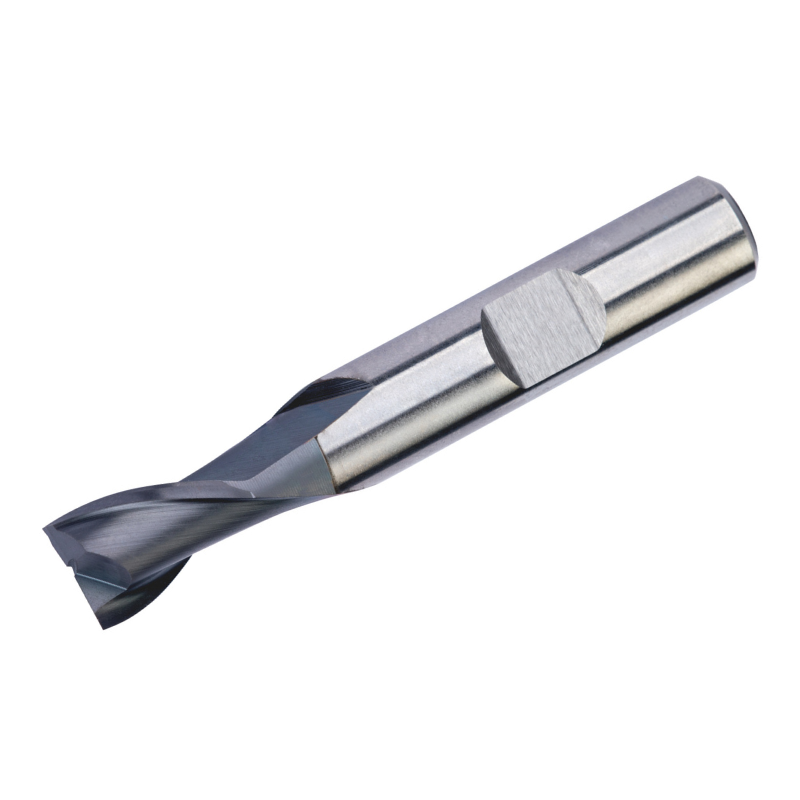

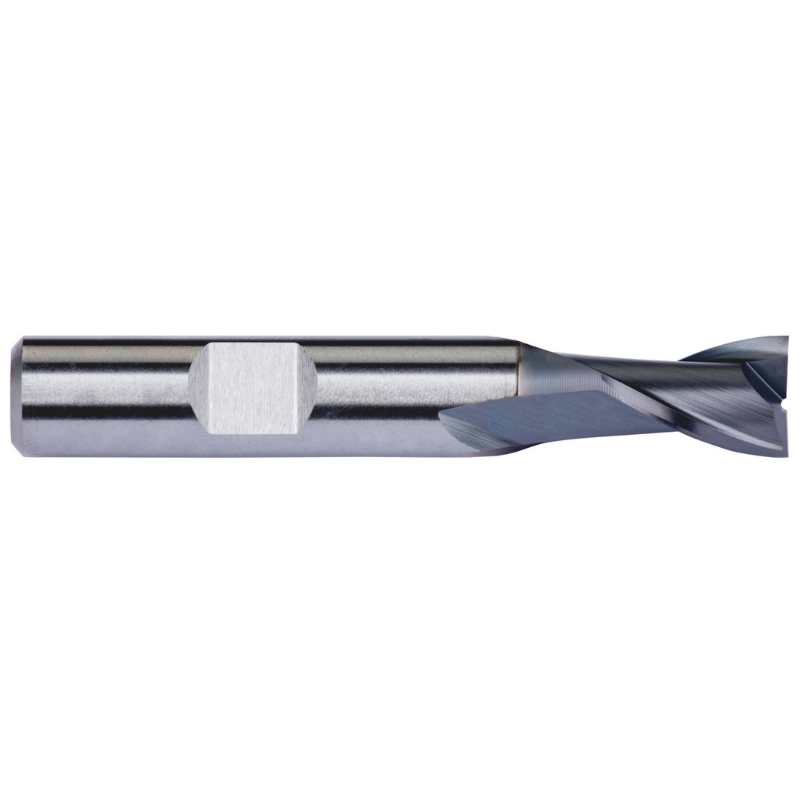

Dormer Pramet C126 6.5mm HSS-E-Powder Metal TICN Flatted Shank 2 Flute Short Series Slot Drill DIN 327 D

The Dormer Pramet C126 6.5 mm HSS-E Powder Metallurgy TiCN-coated slot drill is designed for shoulder milling, slot milling, and ramping in tight spaces. This extra-short, two-flute tool delivers precise slots and clean shoulders in a range of materials, making it a trusted choice for accurate, repeatable milling in CNC and manual setups.

• Diameter: 6.5 mm
• Length of cut: 10 mm
• Overall length: 60 mm
• Shank: 10 mm Weldon shank with a flatted section for secure clamping
• Material & coating: Powder-metallurgical HSS-E with TiCN coating for wear resistance
• Flutes: 2
• Helix angle: 30°
• Rake angle: 12°
• Standard: DIN 327 D
• Applications: Shoulder milling, slot milling, and ramping in free machining steel, plain carbon steel, alloy steel, cast iron, copper or copper alloys, and titanium or titanium alloys
• Series: Extra-short design optimized for tight pockets and short reach

Designed for precision in restricted cavities, this tool maintains stable cutting and reliable edge retention thanks to the HSS-E substrate and TiCN coating. The two-flute geometry supports efficient chip evacuation and smooth cutting action, while the 30° helix and 12° rake angle enhance performance across a variety of materials, including titanium and copper alloys. The Weldon 10 mm shank provides a secure, repeatable grip in standard holders, ensuring consistent depth control and minimal runout during demanding shoulder and slot milling operations.
