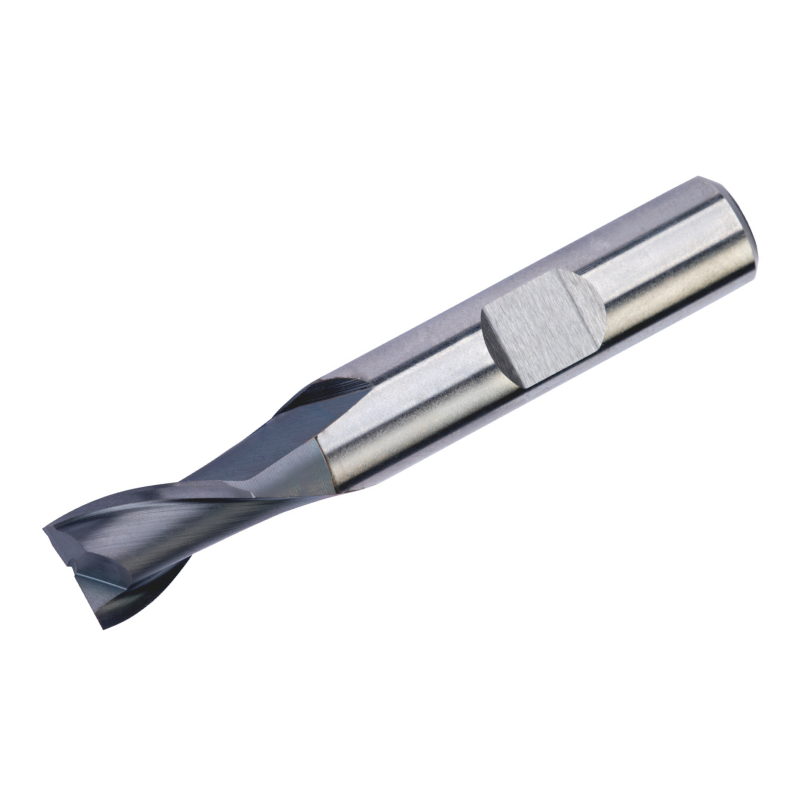

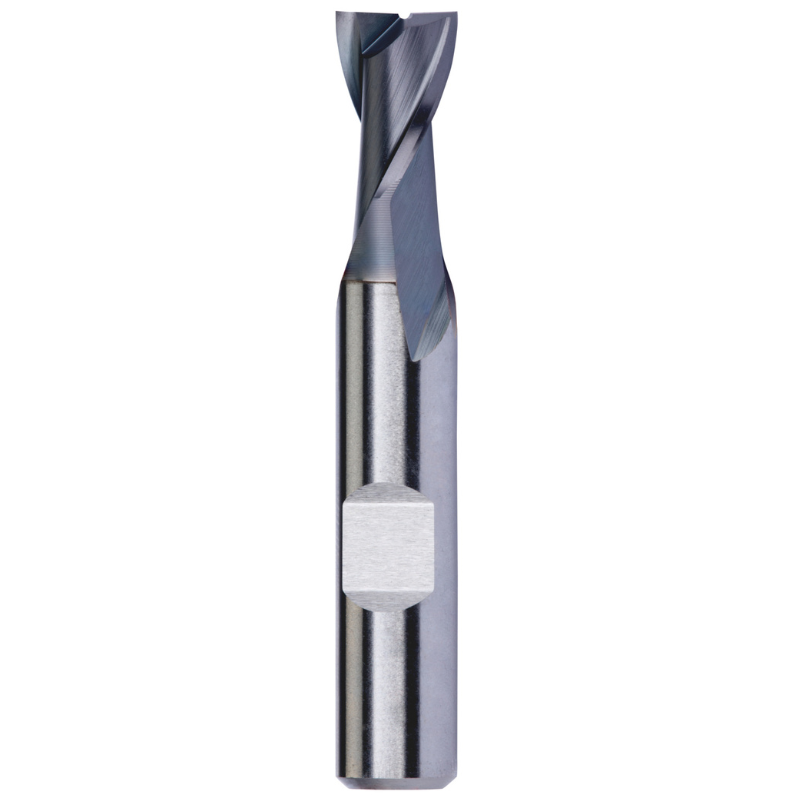

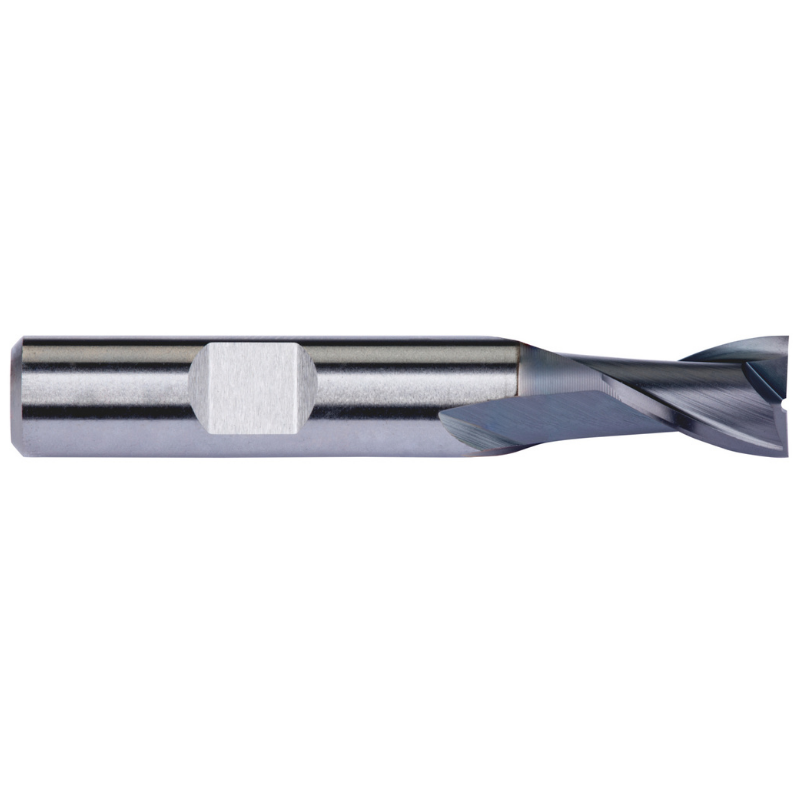

Dormer Pramet C126 6.0mm HSS-E-Powder Metal TICN Flatted Shank 2 Flute Short Series Slot Drill DIN 327 D

The Dormer Pramet C126 6.0 mm HSS-E-Powder Metall TiCN-coated slot drill with a flatted 6 mm Weldon shank is engineered for shoulder milling, slot milling, and ramping in free-machining steels and related materials. Built to DIN 327 D specifications, it delivers precise slots in tight pockets with reliable performance.

• Diameter: 6.0 mm
• Flutes: 2
• Length of Cut: 8 mm
• Overall Length: 52 mm
• Shank: Weldon 6 mm
• Coating: TiCN coating on HSS-E for enhanced wear resistance
• Material: Powder-metallurgical HSS-E
• Helix: 30° helix for efficient cutting and chip control
• Rake Angle: 12° rake to optimize shoulder milling and ramping
• Standards: DIN 327 D
• Primary Applications: Shoulder milling, slot milling, and ramping
• Materials Suitable: Free machining plain carbon and alloy steel, cast iron, copper and copper alloys, titanium and titanium alloys

This combination of short, rigid geometry, sturdy Weldon shank, and TiCN-coated HSS-E core helps deliver clean slot edges and consistent tool life. The two-flute design promotes effective chip evacuation in slotting, while the compact length minimizes deflection in shallow pockets. For precision slots and shoulders in a range of common metals, this Dormer Pramet C126 slot drill offers dependable, repeatable results.
