ITP Straight Styli - Type K - M2 Thread x 15mm Overall Length - IIM203003015
| Styli Type | Type K |
| Thread Size | M2 |
| Ball Diameter (DK) | N/A |
| Overall Length (L) | 15 |
| Shank Diameter (DG) | 3 |
| Measuring Length (ML) | N/A |
Learn more about Klarna

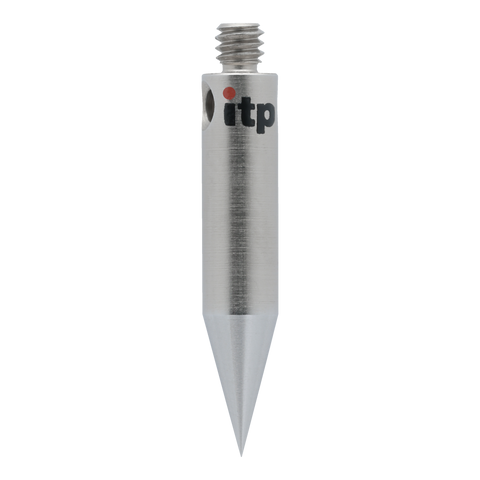

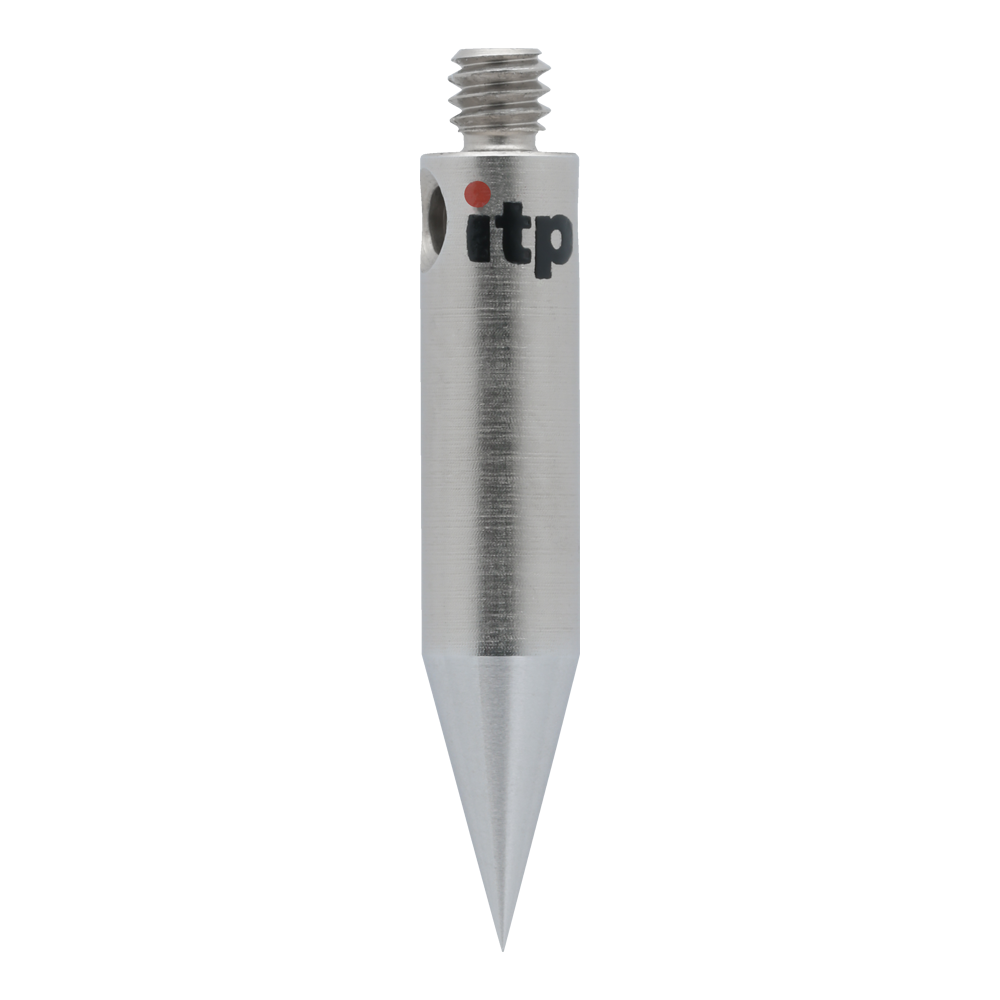

ITP Straight Styli, Type K with M2 thread, offers a compact and precise probing solution designed for micro-scale measurements. Replacing the conventional ball tip with a durable stainless steel or tungsten carbide point, this stylus is optimized for very small probing surfaces and self-centering probing of bores.
- Thread: M2 thread for straightforward integration with compatible probes and fixtures
- Overall length: 15 mm
- Tip material options: Stainless steel or tungsten carbide
- Tip angles: 30° and 60° options to suit different probing scenarios
- Tip design: Replaces the traditional ball with a precise pointed tip for tiny contact areas and self-centering bore probing
- Type: Type K straight stylus
This stylus delivers more reliable contact on very small features, improving measurement repeatability and reducing misalignment in bore inspections. The 15 mm length provides access to tight recesses, while the choice of tip material (carbide for wear resistance or stainless steel for versatility) supports different workpiece materials and environments. The 30° and 60° tip options enable optimized engagement depending on surface geometry, making this stylus a practical choice for precision metrology, quality control, and calibration tasks where conventional ball tips fall short.

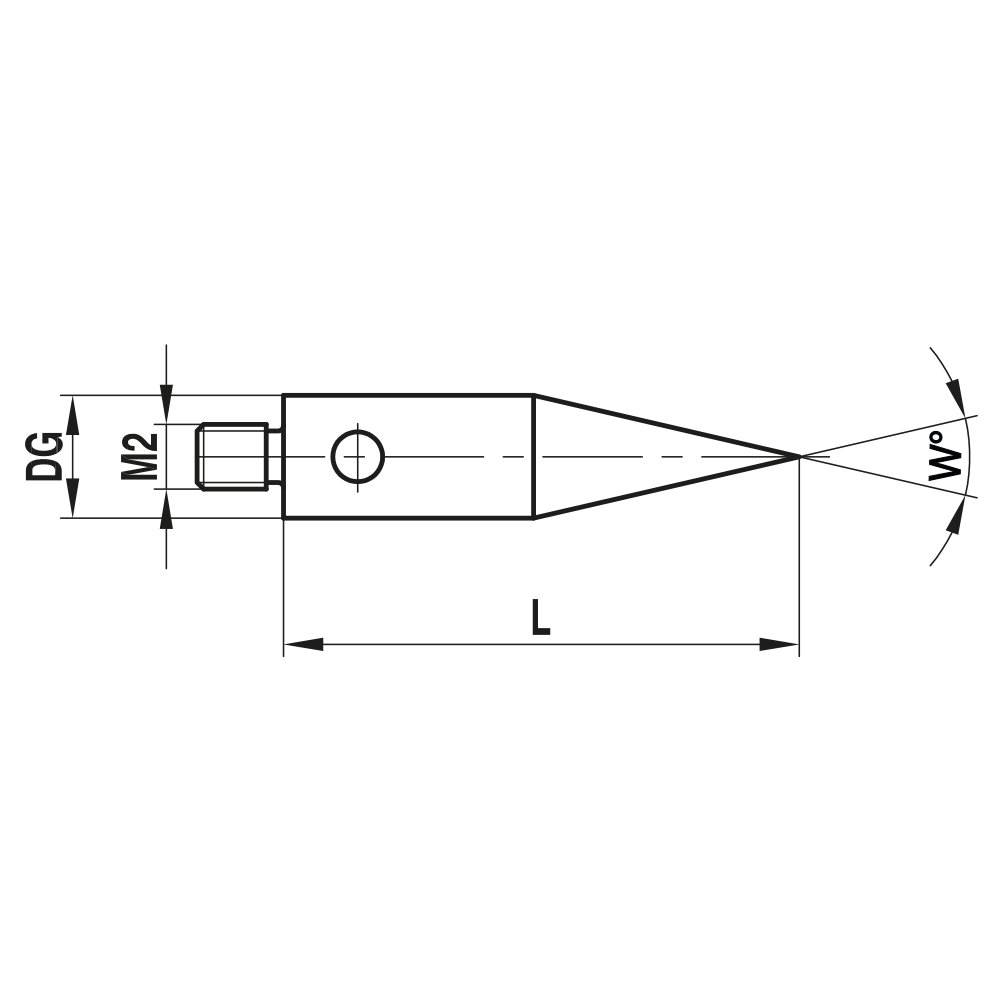

| Styli Type | Type K |
| Thread Size | M2 |
| Ball Diameter (DK) | N/A |
| Overall Length (L) | 15 |
| Shank Diameter (DG) | 3 |
| Measuring Length (ML) | N/A |
| Neck Diameter (DS) | 3 |
| Stem Material | stainless steel |
| Base Material | stainless steel |
| Prob Ball Material | N/A |
