Widin Live Centre - CNC Standard - D50 Type - NO.5
| Size | MT5 |
| Head Diameter | 58 |
| Point Length | 35 |
| Point Diameter | 32 |
Learn more about Klarna
Description

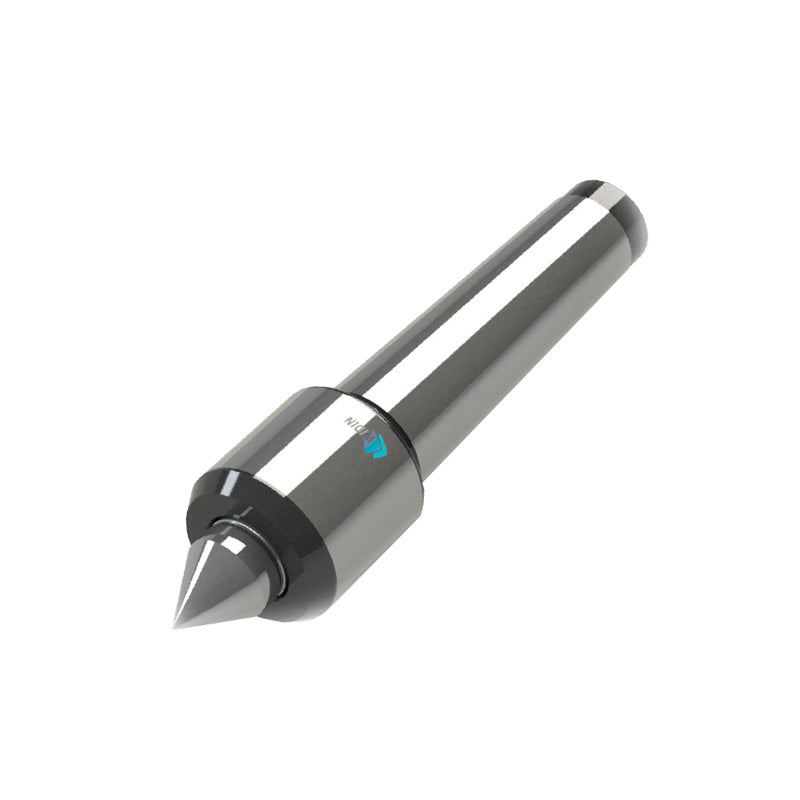

Widin Live Centre CNC Standard is a precision live center designed for CNC lathes. The D50 Type with a No.5 nose provides robust support for turning applications, while a sealed construction protects the bearing area from cutting oils and contaminants.
With Morse tapers available in No.3 and No.5, this center delivers dependable, repeatable performance in busy workshops, helping you maintain tight tolerances and high-quality finishes across jobs.
- Sealed Design for Cleaner Operation: Sealed to prevent the inflow of cutting oils and foreign substances, protecting bearings and reducing maintenance and downtime.
- Ultra-Low Runout for True Running: Delivers precision runout as tight as 0.00012"/0.0002" (0.003mm/0.005mm), enabling consistent co-axial turning and superior surface finish.
- Morse Taper Options with D50 Nose: Available for No.3 and No.5 Morse taps, with a D50 nose design for secure seating and quick, repeatable setup on compatible CNC lathes.
This live center is built for reliability in demanding CNC turning tasks. Sealed protection, exceptional runout performance, and flexible Morse-taper compatibility combine to reduce setup time, improve part accuracy, and keep your workflow moving smoothly from job to job.
Part Numbers
- Protool Part Number
- LC-5D50
- Brand
- Widin
- Category
- Live Centre
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Live Centre - CNC Standard - D50 Type
View full collection →You are viewing LC-5D50. Click any other SKU to view its full details.

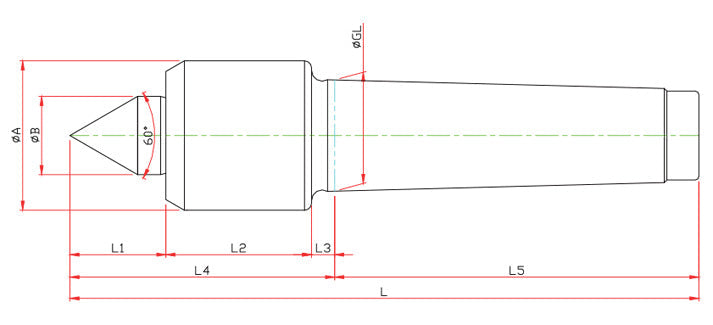

| Product SKU | Size | Head Diameter | Point Length | Point Diameter | Max RPM | Max Load | Concentricity | GL | L2 | L3 | L4 | L5 | L | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LC-3D50 | MT3 | 34 | 21 | 22 | 4800 | 400 | 0.003 | 23.825 | 38 | 5 | 64 | 81 | 145 | £226.88 | 5 days | |
| LC-4D50 | MT4 | 42 | 27 | 22 | 3800 | 800 | 0.003 | 31.267 | 41 | 6.5 | 74.5 | 101.5 | 177 | £263.97 | 5 days | |
| LC-5D50 Viewing | MT5 | 58 | 35 | 32 | 3400 | 1600 | 0.005 | 44.399 | 60 | 6.5 | 101.5 | 129.5 | 231 | £350.60 | 5 days |
