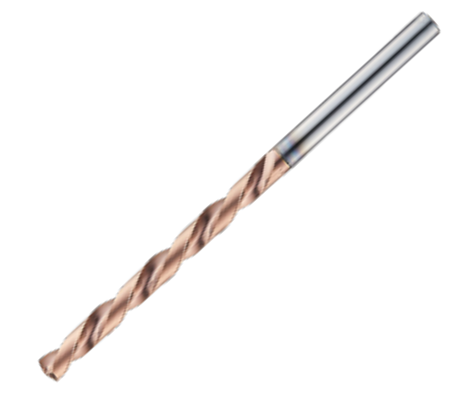

Widin Carbide Drill Single Margin Internal Coolant 8XD TiAlN Coated - 14mm

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Widin Carbide Drill Single Margin Internal Coolant 8XD TiAlN Coated - 14mm

Name: Widin Carbide Drill Single Margin Internal Coolant 8XD TiAlN Coated - 14mm
Brand: Widin
SKU: PI508A140
Price: 307.4 GBP
Availability: InStock

SKU:PI508A140

The Widin Carbide Drill is a 14 mm diameter, 8xD length solid carbide drill designed for precise, deep-hole drilling. Built for durability and long tool life, it stands up to demanding metals and... Read more ↓

Material Compatibility

Specifications at a glance

Drill Diameter	14.00
Flute Length	133
Overall Length	178
Shank Diameter	14

View all specifications ↓

Download Cutting Data

£307.40

Prices shown ex. VAT

5 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

With a TiAlN coating for exceptional wear and heat resistance, a single margin design for stability, and an internal coolant channel that promotes efficient cooling and chip evacuation, this drill maintains consistent performance through deep passes.

Solid carbide with TiAlN coating: Solid carbide construction delivers exceptional durability and long tool life, while the TiAlN coating boosts wear resistance and heat tolerance for faster cutting and extended performance.
Internal coolant for cooling and chip evacuation: The built-in coolant channel reduces heat buildup and clears chips, helping you maintain cutting speed and achieve cleaner holes on deep-hole work.
8xD depth capability with single-margin stability: The 8xD reach supports deep-hole drilling while the single-margin geometry provides rigidity and minimizes deviation, delivering accurate, repeatable holes pass after pass.

When you use the Widin carbide drill, you gain reliable deep-hole performance from first to last hole. The combination of a tough carbide core, protective TiAlN coating, internal coolant, and extended reach translates into faster cycle times, fewer tool changes, and cleaner hole finishes. This drill is well suited for engineers, machinists, and hobbyists who demand consistent results, productive workflows, and confidence in the cut, even in demanding materials.

Part Numbers

Protool Part Number: PI508A140
Brand: Widin
Category: Drill

Cutting Data & Technical Datasheet

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: Widin Solid Carbide Drills - 8xD TiAlN Coated - Single Margin Internal Coolant (PI508)

View full collection →

You are viewing PI508A140. Click any other SKU to view its full details.

Product SKU	Drill Diameter	Flute Length	Overall Length	Shank Diameter	Coated	Coolant	Price	Stock

PI508A030	3.00	34	72	6	Coated	YES	£56.45	5 days
PI508A031	3.10	34	72	6	Coated	YES	£56.45	5 days
PI508A032	3.20	34	72	6	Coated	YES	£56.45	5 days
PI508A033	3.30	34	72	6	Coated	YES	£56.45	5 days
PI508A034	3.40	34	72	6	Coated	YES	£56.45	5 days
PI508A035	3.50	34	72	6	Coated	YES	£56.45	5 days
PI508A036	3.60	34	72	6	Coated	YES	£56.45	5 days
PI508A037	3.70	34	72	6	Coated	YES	£56.45	5 days
PI508A038	3.80	43	81	6	Coated	YES	£56.45	5 days
PI508A039	3.90	43	81	6	Coated	YES	£56.45	5 days
PI508A040	4.00	43	81	6	Coated	YES	£56.45	5 days
PI508A041	4.10	43	81	6	Coated	YES	£56.45	5 days
PI508A042	4.20	43	81	6	Coated	YES	£56.45	5 days
PI508A043	4.30	43	81	6	Coated	YES	£56.45	5 days
PI508A044	4.40	43	81	6	Coated	YES	£56.45	5 days
PI508A045	4.50	43	81	6	Coated	YES	£56.45	5 days
PI508A046	4.60	43	81	6	Coated	YES	£56.45	5 days
PI508A047	4.70	43	81	6	Coated	YES	£56.45	5 days
PI508A048	4.80	57	95	6	Coated	YES	£56.45	5 days
PI508A049	4.90	57	95	6	Coated	YES	£56.45	5 days
PI508A050	5.00	57	95	6	Coated	YES	£56.45	5 days
PI508A051	5.10	57	95	6	Coated	YES	£56.45	5 days
PI508A052	5.20	57	95	6	Coated	YES	£56.45	5 days
PI508A053	5.30	57	95	6	Coated	YES	£56.45	5 days
PI508A054	5.40	57	95	6	Coated	YES	£56.45	5 days
PI508A055	5.50	57	95	6	Coated	YES	£56.45	5 days
PI508A056	5.60	57	95	6	Coated	YES	£56.45	5 days
PI508A057	5.70	57	95	6	Coated	YES	£56.45	5 days
PI508A058	5.80	57	95	6	Coated	YES	£56.45	5 days
PI508A059	5.90	57	95	6	Coated	YES	£56.45	5 days
PI508A060	6.00	57	95	6	Coated	YES	£56.45	5 days
PI508A061	6.10	76	114	8	Coated	YES	£74.91	5 days
PI508A062	6.20	76	114	8	Coated	YES	£74.91	5 days
PI508A063	6.30	76	114	8	Coated	YES	£74.91	5 days
PI508A064	6.40	76	114	8	Coated	YES	£74.91	5 days
PI508A065	6.50	76	114	8	Coated	YES	£74.91	5 days
PI508A066	6.60	76	114	8	Coated	YES	£74.91	5 days
PI508A067	6.70	76	114	8	Coated	YES	£74.91	5 days
PI508A068	6.80	76	114	8	Coated	YES	£74.91	5 days
PI508A069	6.90	76	114	8	Coated	YES	£74.91	5 days
PI508A070	7.00	76	114	8	Coated	YES	£74.91	5 days
PI508A071	7.10	76	114	8	Coated	YES	£74.91	5 days
PI508A072	7.20	76	114	8	Coated	YES	£74.91	5 days
PI508A073	7.30	76	114	8	Coated	YES	£74.91	5 days
PI508A074	7.40	76	114	8	Coated	YES	£74.91	5 days
PI508A075	7.50	76	114	8	Coated	YES	£74.91	5 days
PI508A076	7.60	76	114	8	Coated	YES	£74.91	5 days
PI508A077	7.70	76	114	8	Coated	YES	£74.91	5 days
PI508A078	7.80	76	114	8	Coated	YES	£74.91	5 days
PI508A079	7.90	76	114	8	Coated	YES	£74.91	5 days
PI508A080	8.00	76	114	8	Coated	YES	£74.91	5 days
PI508A081	8.10	95	142	10	Coated	YES	£125.31	5 days
PI508A082	8.20	95	142	10	Coated	YES	£125.31	5 days
PI508A083	8.30	95	142	10	Coated	YES	£125.31	5 days
PI508A084	8.40	95	142	10	Coated	YES	£125.31	5 days
PI508A085	8.50	95	142	10	Coated	YES	£125.31	5 days
PI508A086	8.60	95	142	10	Coated	YES	£125.31	5 days
PI508A087	8.70	95	142	10	Coated	YES	£125.31	5 days
PI508A088	8.80	95	142	10	Coated	YES	£125.31	5 days
PI508A089	8.90	95	142	10	Coated	YES	£125.31	5 days
PI508A090	9.00	95	142	10	Coated	YES	£125.31	5 days
PI508A091	9.10	95	142	10	Coated	YES	£125.31	5 days
PI508A092	9.20	95	142	10	Coated	YES	£125.31	5 days
PI508A093	9.30	95	142	10	Coated	YES	£125.31	5 days
PI508A094	9.40	95	142	10	Coated	YES	£125.31	5 days
PI508A095	9.50	95	142	10	Coated	YES	£125.31	5 days
PI508A096	9.60	95	142	10	Coated	YES	£125.31	5 days
PI508A097	9.70	95	142	10	Coated	YES	£125.31	5 days
PI508A098	9.80	95	142	10	Coated	YES	£125.31	5 days
PI508A099	9.90	95	142	10	Coated	YES	£125.31	5 days
PI508A100	10.00	95	142	10	Coated	YES	£125.31	5 days
PI508A101	10.10	114	162	12	Coated	YES	£202.21	5 days
PI508A102	10.20	114	162	12	Coated	YES	£202.21	5 days
PI508A103	10.30	114	162	12	Coated	YES	£202.21	5 days
PI508A104	10.40	114	162	12	Coated	YES	£202.21	5 days
PI508A105	10.50	114	162	12	Coated	YES	£202.21	5 days
PI508A106	10.60	114	162	12	Coated	YES	£202.21	5 days
PI508A107	10.70	114	162	12	Coated	YES	£202.21	5 days
PI508A108	10.80	114	162	12	Coated	YES	£202.21	5 days
PI508A109	10.90	114	162	12	Coated	YES	£202.21	5 days
PI508A110	11.00	114	162	12	Coated	YES	£202.21	5 days
PI508A111	11.10	114	162	12	Coated	YES	£202.21	5 days
PI508A112	11.20	114	162	12	Coated	YES	£202.21	5 days
PI508A113	11.30	114	162	12	Coated	YES	£202.21	5 days
PI508A114	11.40	114	162	12	Coated	YES	£202.21	5 days
PI508A115	11.50	114	162	12	Coated	YES	£202.21	5 days
PI508A116	11.60	114	162	12	Coated	YES	£202.21	5 days
PI508A117	11.70	114	162	12	Coated	YES	£202.21	5 days
PI508A118	11.80	114	162	12	Coated	YES	£202.21	5 days
PI508A119	11.90	114	162	12	Coated	YES	£202.21	5 days
PI508A120	12.00	114	162	12	Coated	YES	£202.21	5 days
PI508A121	12.10	133	178	14	Coated	YES	£307.40	5 days
PI508A122	12.20	133	178	14	Coated	YES	£307.40	5 days
PI508A123	12.30	133	178	14	Coated	YES	£307.40	5 days
PI508A124	12.40	133	178	14	Coated	YES	£307.40	5 days
PI508A125	12.50	133	178	14	Coated	YES	£307.40	5 days
PI508A126	12.60	133	178	14	Coated	YES	£307.40	5 days
PI508A127	12.70	133	178	14	Coated	YES	£307.40	5 days
PI508A128	12.80	133	178	14	Coated	YES	£307.40	5 days
PI508A129	12.90	133	178	14	Coated	YES	£307.40	5 days
PI508A130	13.00	133	178	14	Coated	YES	£307.40	5 days
PI508A131	13.10	133	178	14	Coated	YES	£307.40	5 days
PI508A132	13.20	133	178	14	Coated	YES	£307.40	5 days
PI508A133	13.30	133	178	14	Coated	YES	£307.40	5 days
PI508A134	13.40	133	178	14	Coated	YES	£307.40	5 days
PI508A135	13.50	133	178	14	Coated	YES	£307.40	5 days
PI508A136	13.60	133	178	14	Coated	YES	£307.40	5 days
PI508A137	13.70	133	178	14	Coated	YES	£307.40	5 days
PI508A138	13.80	133	178	14	Coated	YES	£307.40	5 days
PI508A139	13.90	133	178	14	Coated	YES	£307.40	5 days
PI508A140 Viewing	14.00	133	178	14	Coated	YES	£307.40	5 days
