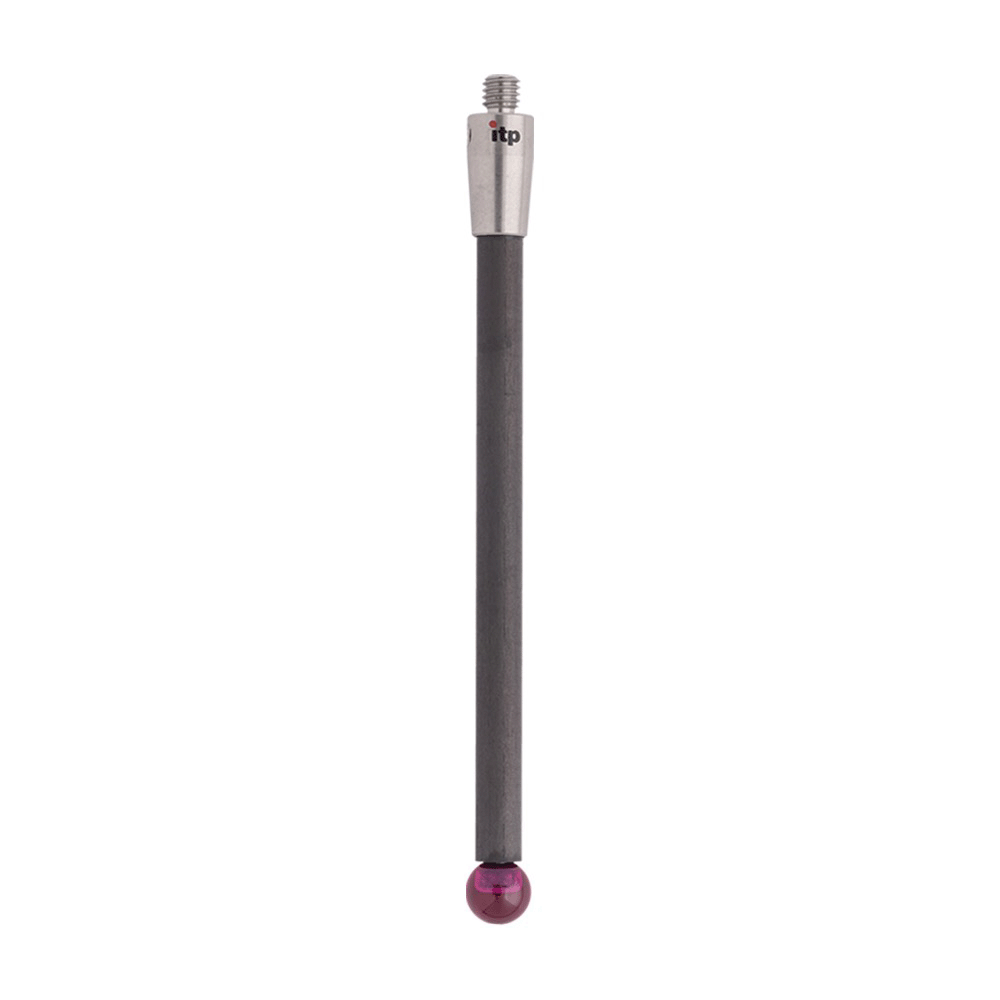

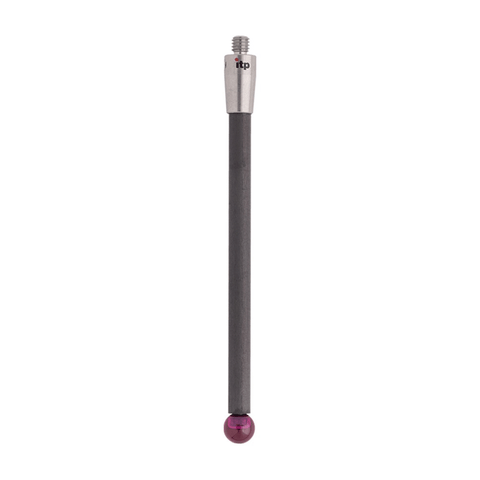

ITP Straight Styli - Type A - Ruby Ball - M3 XXT Thread x 70mm Overall Length - TCM306005070
| Styli Type | Type A |
| Thread Size | M3 XXT |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 70 |
| Shank Diameter (DG) | 5 |
| Measuring Length (ML) | 61 |
Learn more about Klarna
Precision meets reach. The ITP Straight Stylus Type A with a ruby ball tip is a lightweight, high-rigidity probing solution designed for long-reach measurements in metrology and quality control, model TCM306005070. Ideal for engineers and technicians who need stable, accurate contact in recessed or challenging features.
- Thread: M3 XXT thread compatibility with standard probing fixtures
- Overall Length: 70 mm for extended reach while preserving stiffness
- Stem Material: Carbon fibre for ultra-low weight and high rigidity
- Tip: Ruby ball, available in Ø3.0 mm to Ø12.0 mm, delivering hard, wear-resistant contact
- Applications: Designed for long-reach measurements and probing in tight or recessed areas
- Customization: Other dimensions can be requested via the configurator or by email
This combination minimizes deflection under probing forces, improving stability and repeatability when measuring complex geometries. The ruby ball tip offers durable, smooth contact with workpieces, helping maintain accuracy and prolong stylus life. With a 70 mm reach, you can access deep features without sacrificing rigidity, making it well-suited for precision metrology workflows in manufacturing, aerospace, automotive, and research environments. If you need dimensions beyond the listed options, you can tailor the stylus through the configurator or by contacting support via email.

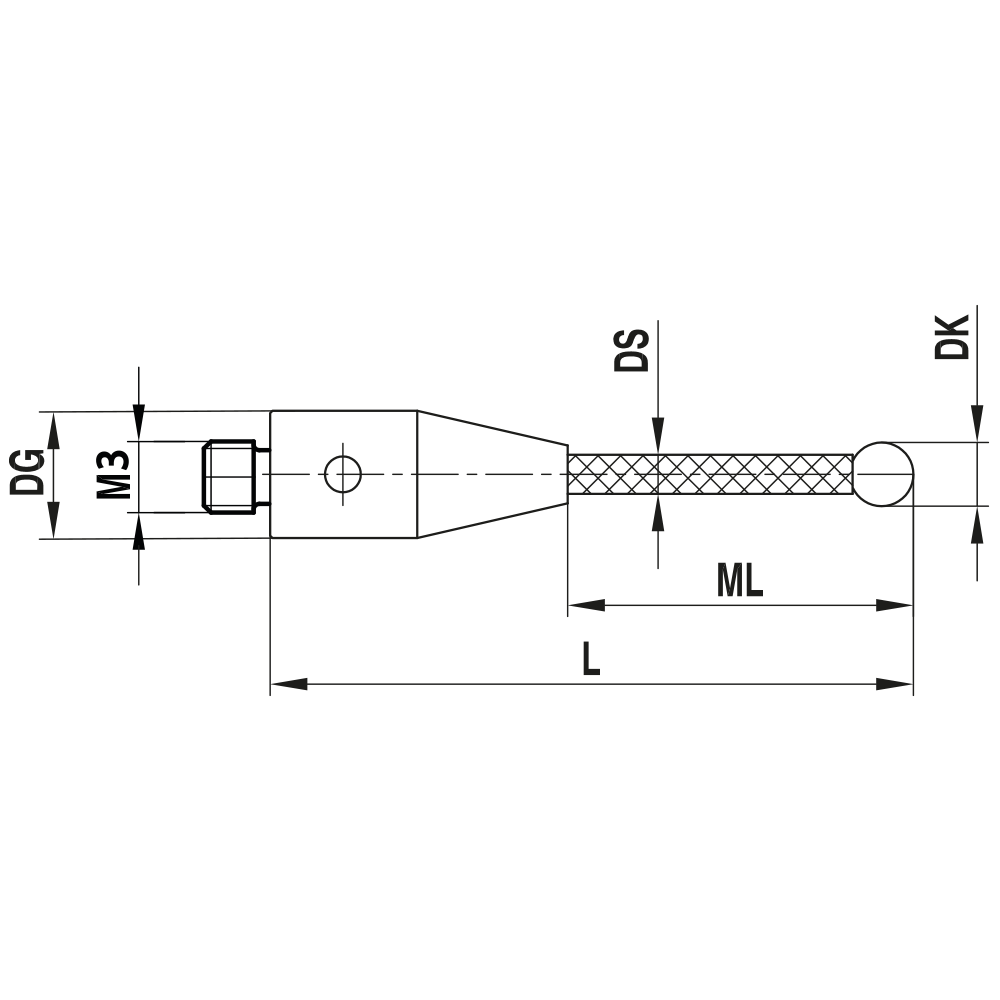

| Styli Type | Type A |
| Thread Size | M3 XXT |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 70 |
| Shank Diameter (DG) | 5 |
| Measuring Length (ML) | 61 |
| Neck Diameter (DS) | 3.5 |
| Stem Material | carbon fiber |
| Base Material | titanium |
| Prob Ball Material | ruby |
