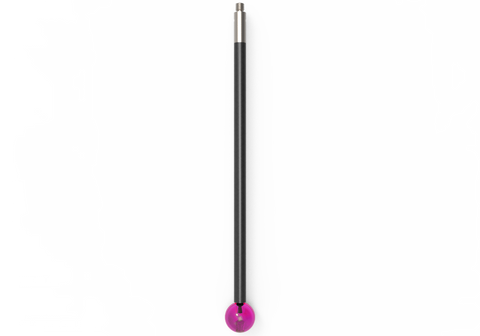

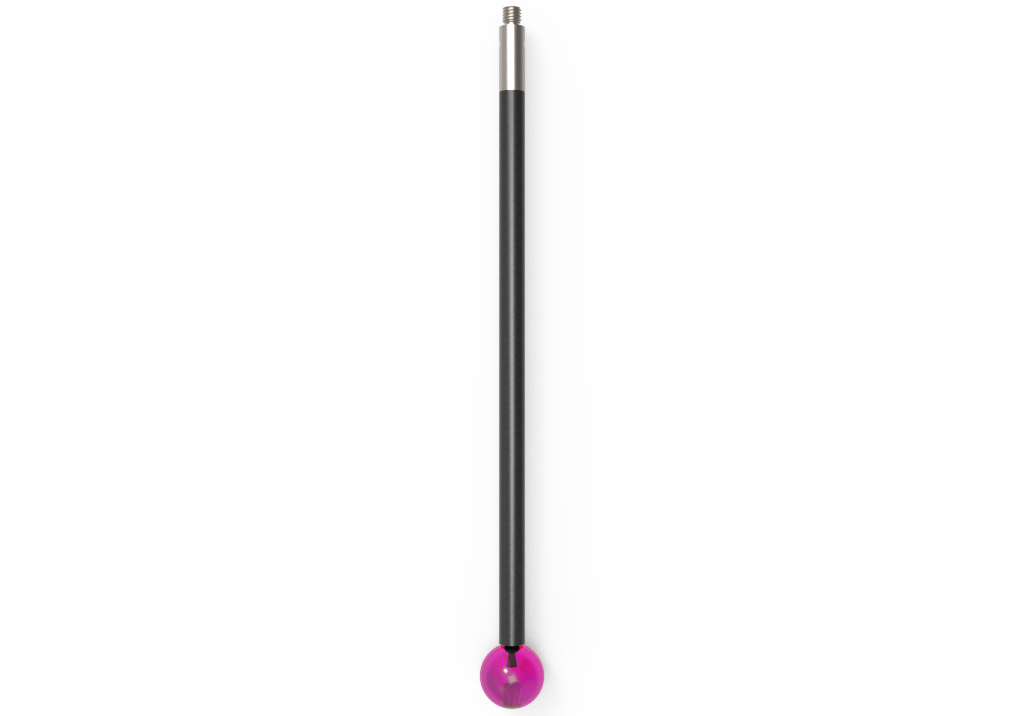

ITP Straight Styli - Type J - Ruby Ball - M3 Thread x 105mm Overall Length - TCM310004105
| Styli Type | Type J |
| Thread Size | M3 |
| Ball Diameter (DK) | 10 |
| Overall Length (L) | 105 |
| Shank Diameter (DG) | 4 |
| Measuring Length (ML) | 95 |
Learn more about Klarna
ITP Straight Styli Type J with Ruby Ball delivers a precise, lightweight probing solution designed for long-reach measurements. With a carbon fiber stem, M3 thread, and an overall length of 105 mm, this stylus is ideal for CMMs and other probing systems that require extended reach.
- Tip material: Ruby ball, high-quality contact surface available in Ø6.0 mm to Ø12.0 mm for precise measurement
- Stem material: Carbon fiber for ultra-low weight and high rigidity, reducing deflection
- Connection: M3 threaded interface for secure, quick mounting
- Overall length: 105 mm to reach into tight or deep features
- Configuration: Other dimensions can be requested via configurator or by email
Designed to minimize mass while maximizing stiffness, this stylus helps deliver stable, repeatable measurements even when probing delicate or recessed features. The long reach reduces the need for tool changes or repositioning, boosting efficiency in inspection and calibration workflows. Ruby ball tips offer durable, smooth contact, supporting consistent data across multiple measurement cycles. The carbon fiber stem also helps dampen vibrations, contributing to cleaner signals and improved data quality for metrology tasks.

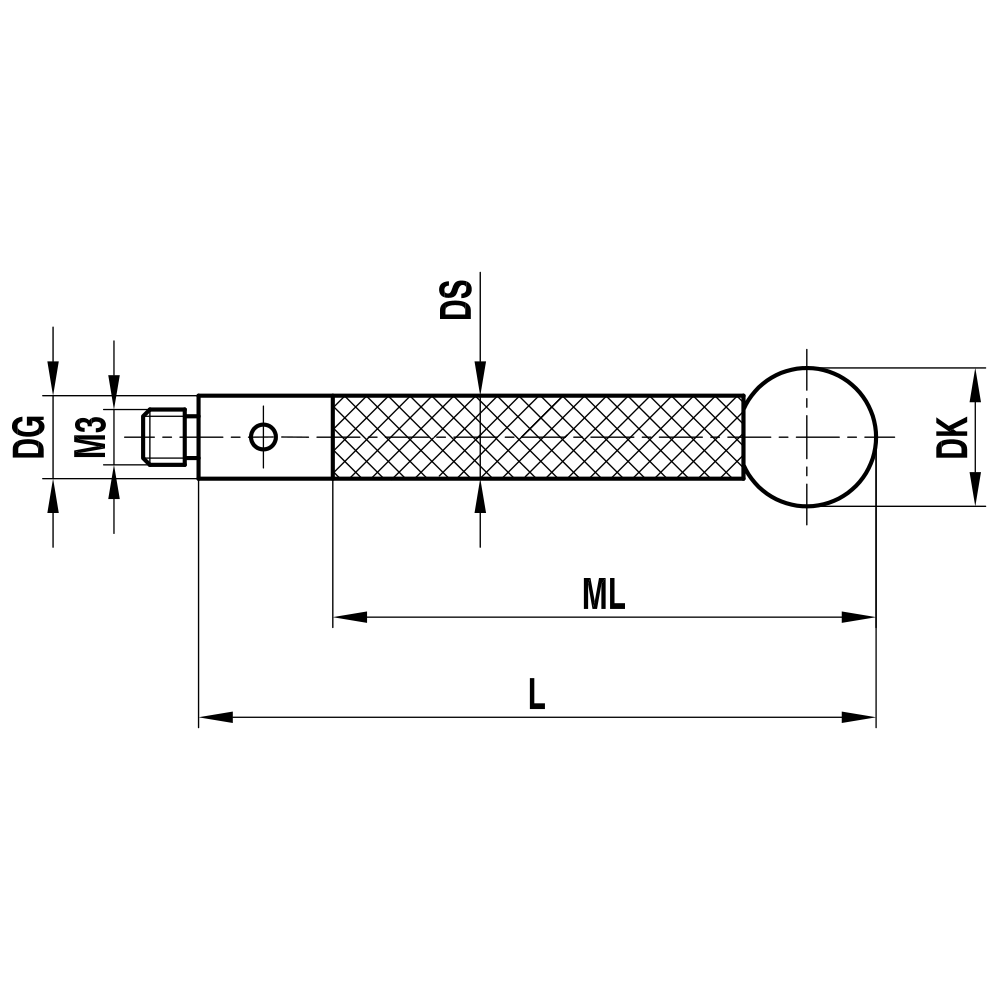

| Styli Type | Type J |
| Thread Size | M3 |
| Ball Diameter (DK) | 10 |
| Overall Length (L) | 105 |
| Shank Diameter (DG) | 4 |
| Measuring Length (ML) | 95 |
| Neck Diameter (DS) | 4 |
| Stem Material | carbon fiber |
| Base Material | stainless steel |
| Prob Ball Material | ruby |
