ITP Straight Styli - Type A - Silicon Nitride Ball - M4 Thread x 203mm Overall Length - TCM4S6007203
| Styli Type | Type A |
| Thread Size | M4 |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 203 |
| Shank Diameter (DG) | 7 |
| Measuring Length (ML) | 186.5 |
Learn more about Klarna

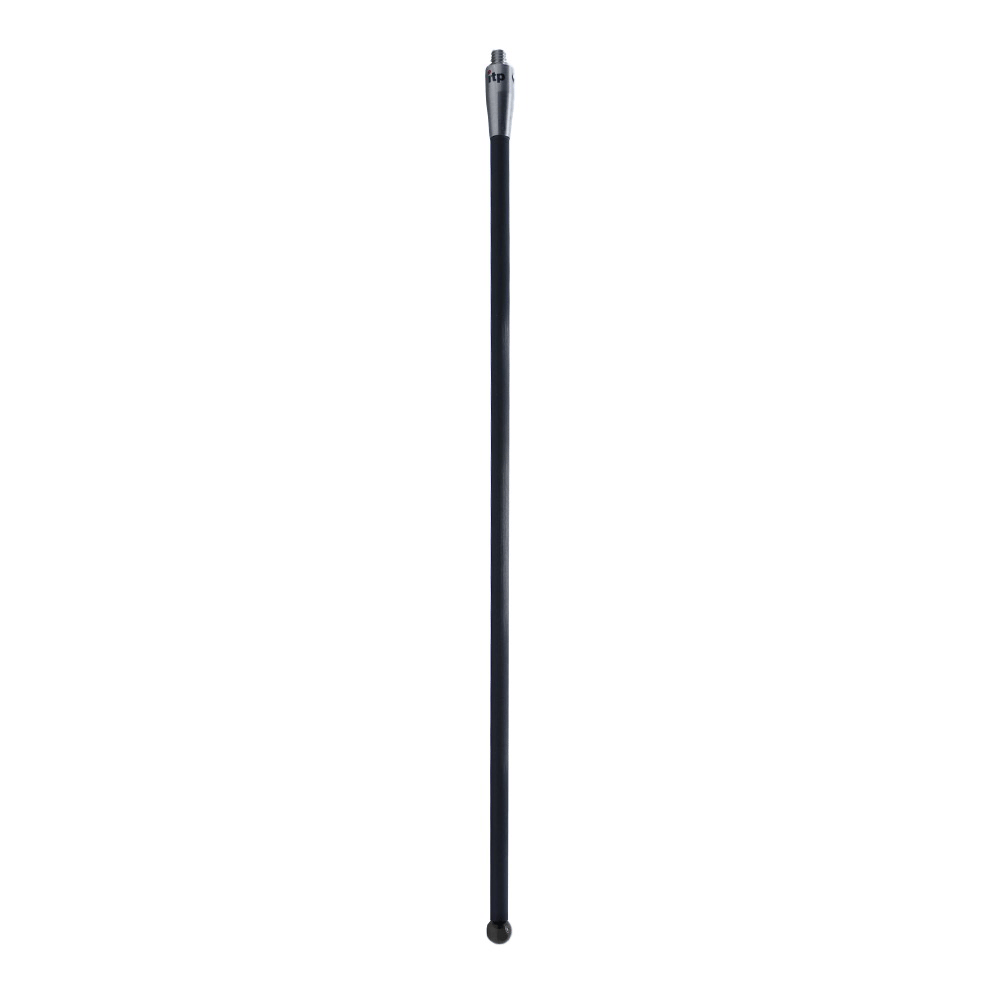

The ITP Straight Stylus Type A with silicon nitride ball is a precision probing accessory designed for metrology, CMM workflows, and inspection tasks. Its carbon fibre stem delivers high rigidity with low weight, ensuring stable measurements even with extended reach.
- Product type: Straight stylus, Type A
- Tip material: Silicon nitride ball, ideal for scanning untreated aluminium surfaces with durable, wear-resistant contact
- Stem material: Carbon fibre for exceptional stiffness while keeping weight low
- Thread: M4 mounting thread for compatibility with standard probe assemblies
- Length: 203 mm overall length for extended reach to challenging features
- Custom dimensions: Other dimensions can be requested via the configurator or by e-mail
- Applications: Optimized for scanning and probing untreated aluminium workpieces
This stylus combination minimizes deflection and vibration during measurements, supporting accurate data capture on aluminum parts and complex geometries. The lightweight yet rigid design reduces user fatigue in prolonged inspection tasks, while the silicon nitride ball provides reliable contact and long wear life. When required, you can request alternative dimensions to tailor reach and clearance to your specific fixtures and measurement routines.

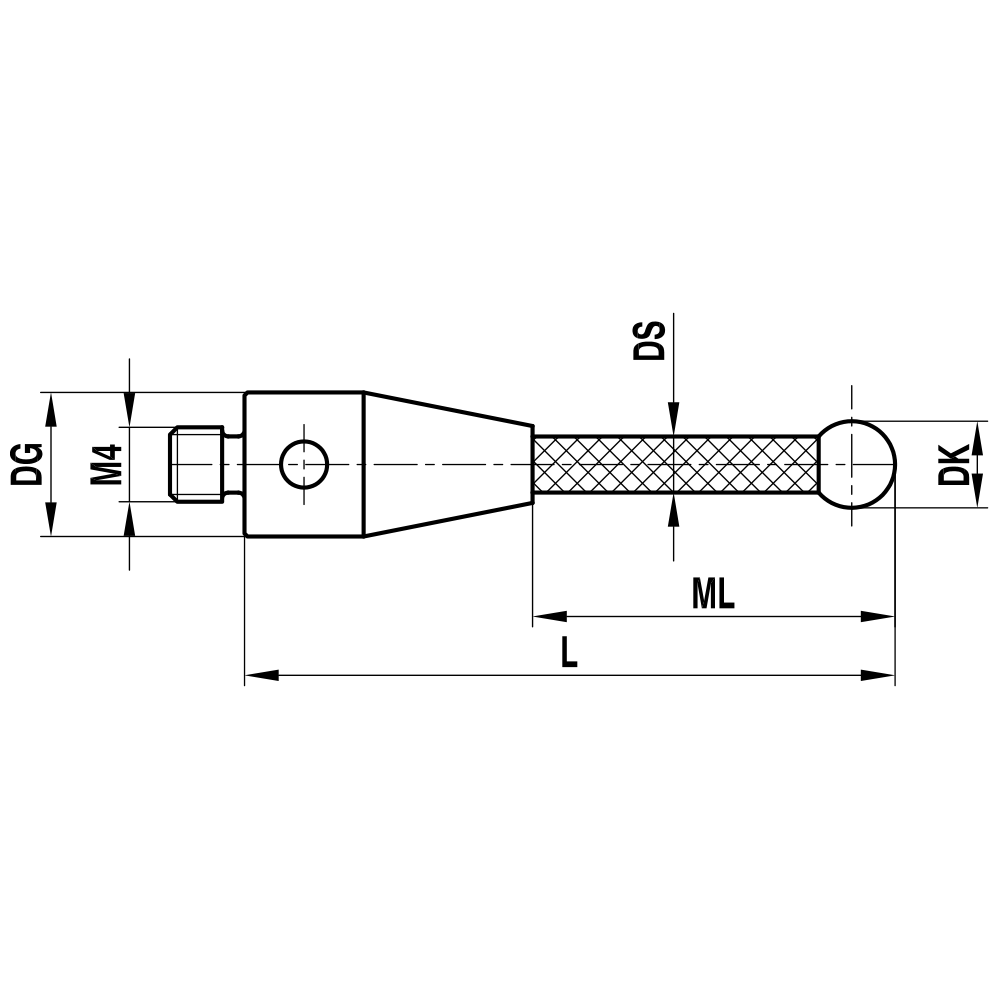

| Styli Type | Type A |
| Thread Size | M4 |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 203 |
| Shank Diameter (DG) | 7 |
| Measuring Length (ML) | 186.5 |
| Neck Diameter (DS) | 4.5 |
| Stem Material | carbon fiber |
| Base Material | stainless steel |
| Prob Ball Material | silicon nitride |
