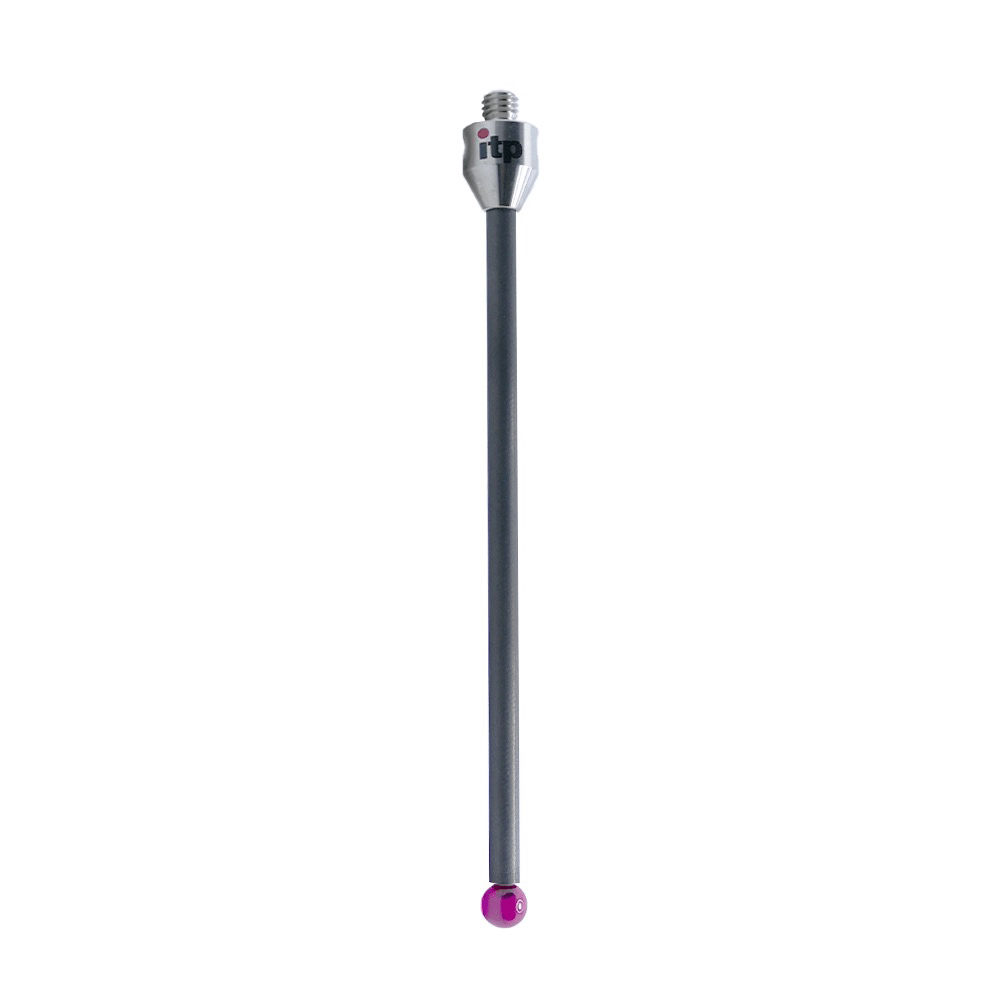

ITP Straight Styli - Type A - Ruby Ball - M5 Thread x 103mm Overall Length - TCM506010103
| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 103 |
| Shank Diameter (DG) | 10 |
| Measuring Length (ML) | 92 |
Learn more about Klarna
ITP Straight Styli, Type A with a ruby ball, is a precision long-reach stylus designed for accurate tactile probing in metrology setups. Built for users who need a light, exceptionally rigid contact probe, it delivers dependable measurements across extended reach applications.
- Product Code: TCM506010103
- Thread: M5 mounting thread for secure attachment to probe systems
- Overall Length: 103 mm total length for extended reach
- Stem Material: Carbon fiber for outstanding stiffness and very low weight
- Tip: High-quality ruby ball mounted at the end, available in Ø3.0 mm to Ø12.0 mm sizes
- Type: Straight stylus (Type A) optimized for direct, linear probing
- Customization: Other dimensions can be configured or requested via configurator or by email
This combination of carbon fiber rigidity and a durable ruby ball minimizes deflection during probing, delivering repeatable contact measurements even on hard-to-reach features. Ideal for precision inspection, quality control, and metrology tasks where long-reach probes are essential. The lightweight design reduces load on the probe head, enabling faster and more stable scans without compromising accuracy. If you need a longer or specialty configuration, this ruby-ball straight stylus can be tailored through the configurator or via direct inquiry.

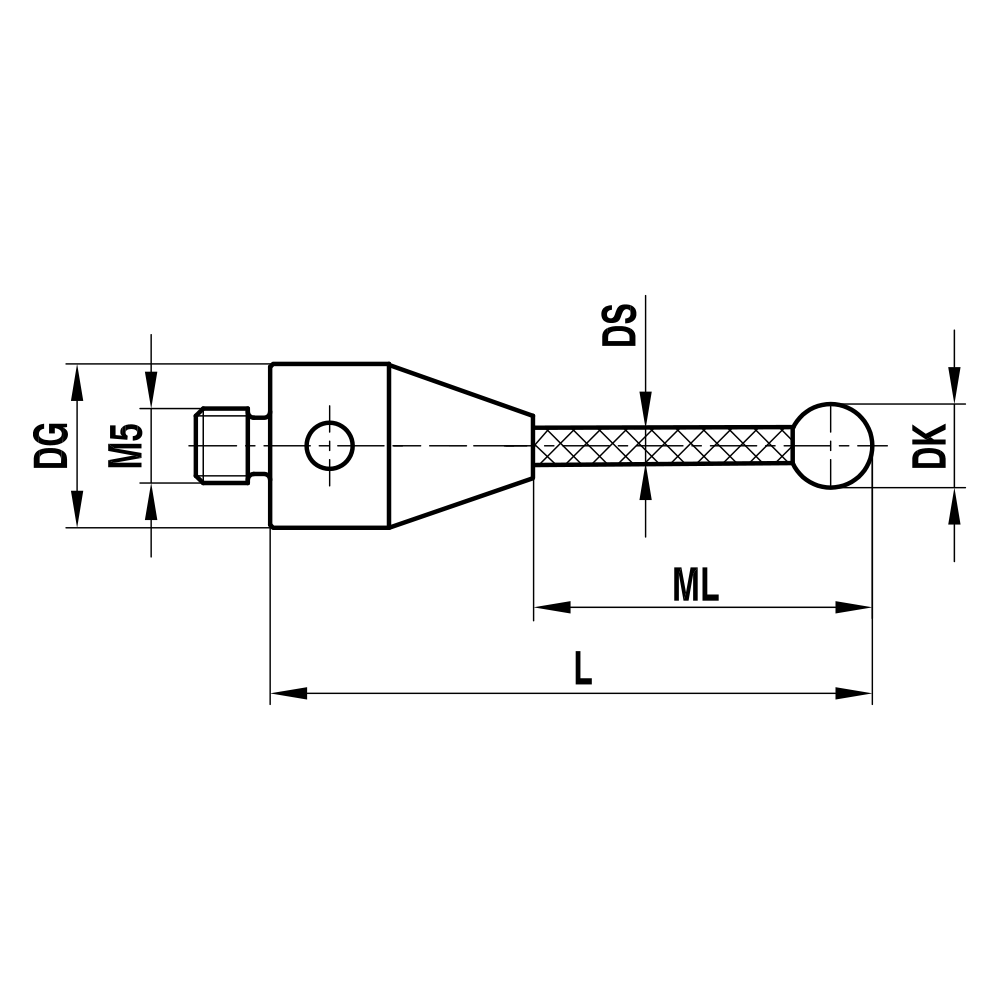

| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 103 |
| Shank Diameter (DG) | 10 |
| Measuring Length (ML) | 92 |
| Neck Diameter (DS) | 4 |
| Stem Material | carbon fiber |
| Base Material | titanium |
| Prob Ball Material | ruby |
