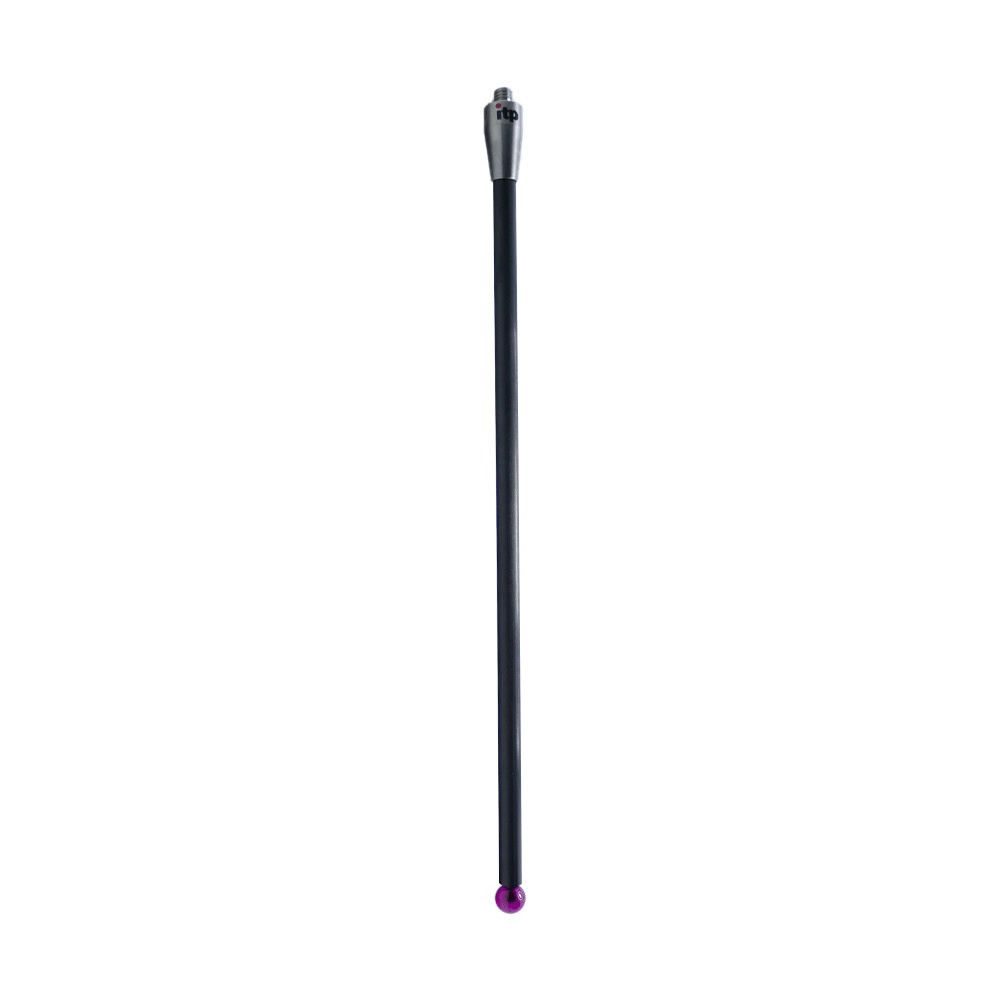

ITP Straight Styli - Type A - Ruby Ball - M5 Thread x 305mm Overall Length - TCM510010305
| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 10 |
| Overall Length (L) | 305 |
| Shank Diameter (DG) | 10 |
| Measuring Length (ML) | 286 |
Learn more about Klarna
ITP Straight Styli Type A with a ruby ball is a precision, long-reach stylus designed for metrology professionals. It combines a lightweight carbon fiber stem with exceptional rigidity to maintain accuracy in extended-length measurements.
- Overall length: 305 mm
- Thread: M5
- Stem material: Carbon fiber
- Tip material: Ruby ball, available in diameters from Ø3.0 mm to Ø12.0 mm
- Model / SKU: TCM510010305
- Optimum use: Designed for long-probe applications where weight and stiffness matter
- Customization: Other dimensions can be requested via the configurator or by email
The carbon fiber stem offers a balance of very low weight and high rigidity, which helps reduce deflection during long-reach probing and supports consistent contact accuracy across measurements. The ruby ball tip provides hard-wearing, repeatable contact with workpieces, delivering reliable data in repeated inspection cycles. With a standard M5 thread, this stylus fits common stylus holders, enabling quick swaps in busy inspection environments. If your application requires a different length or ball size, you can request other dimensions through the configurator or by emailing our team.

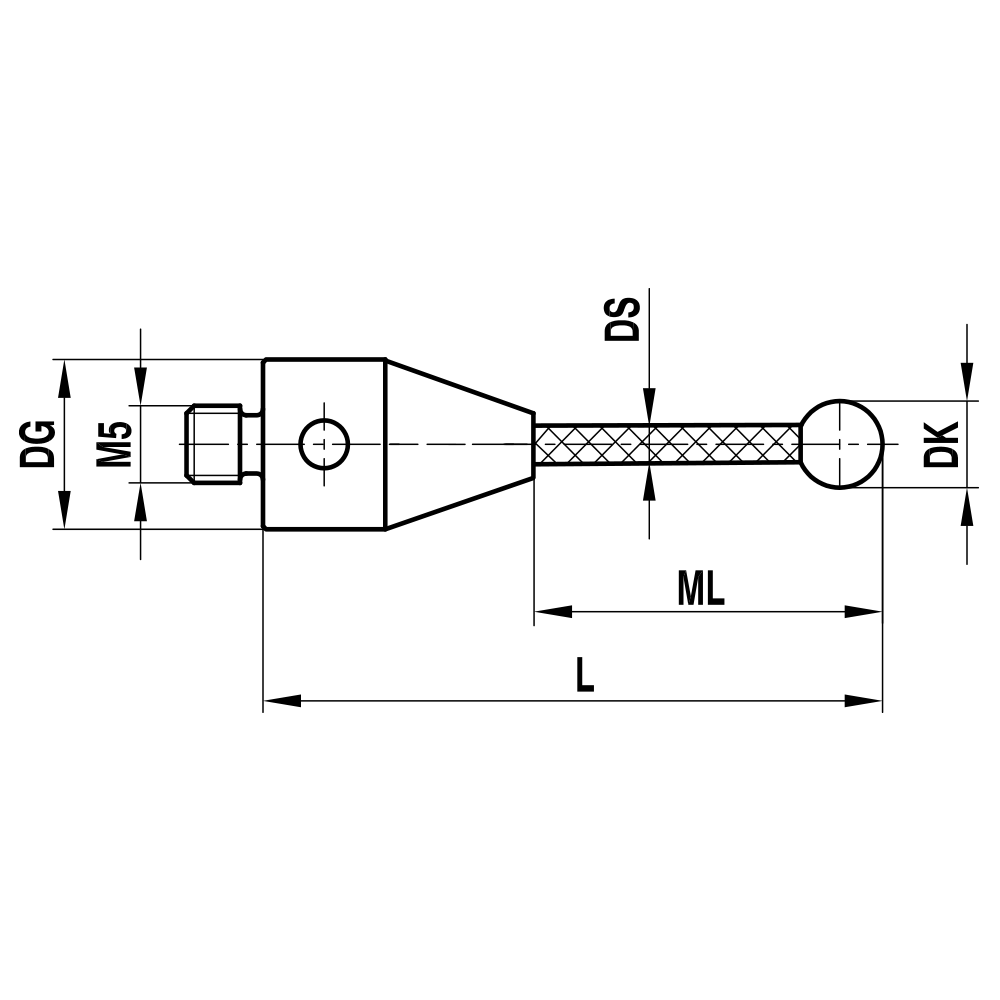

| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 10 |
| Overall Length (L) | 305 |
| Shank Diameter (DG) | 10 |
| Measuring Length (ML) | 286 |
| Neck Diameter (DS) | 6 |
| Stem Material | carbon fiber |
| Base Material | titanium |
| Prob Ball Material | ruby |
