ITP Straight Styli - Type B - Ruby Ball - M2 Thread x 18mm Overall Length - THM200803018
| Styli Type | Type B |
| Thread Size | M2 |
| Ball Diameter (DK) | 0.8 |
| Overall Length (L) | 18 |
| Shank Diameter (DG) | 3 |
| Measuring Length (ML) | 13.5 |
Learn more about Klarna

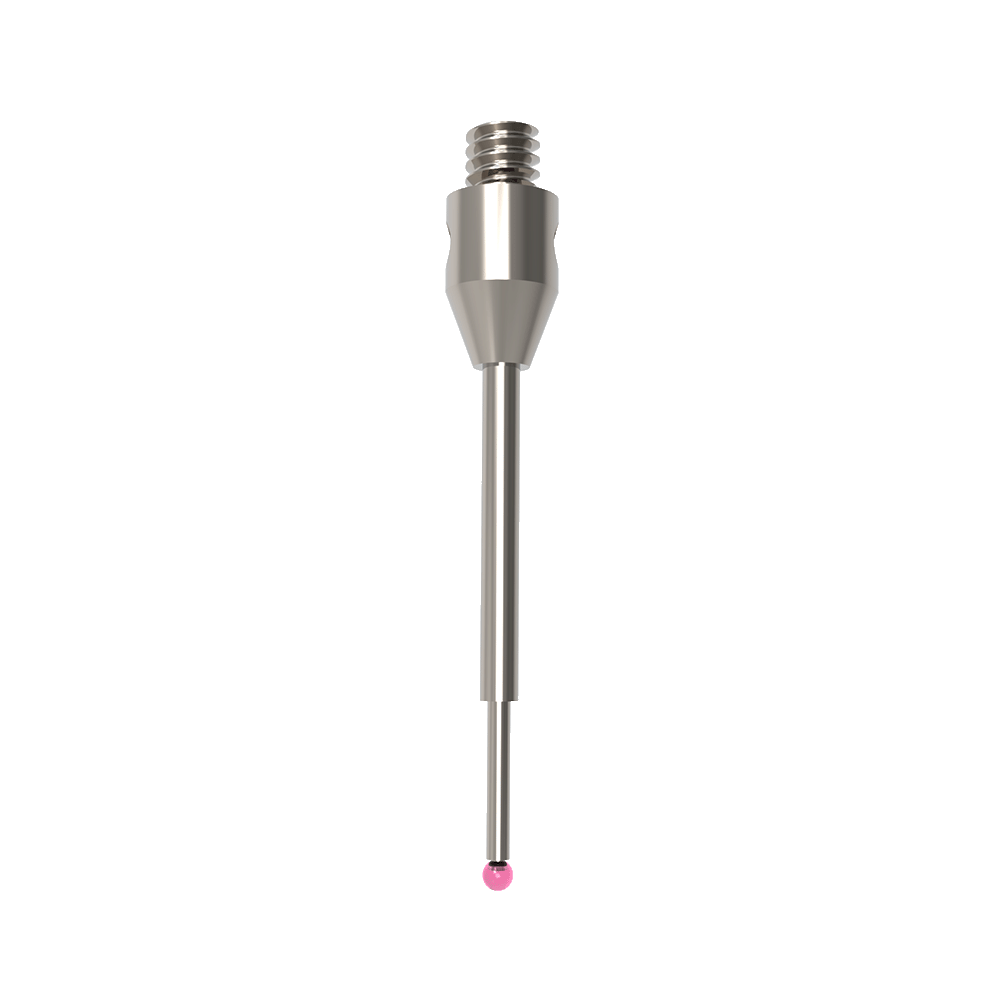

The ITP Straight Styli Type B with Ruby Ball is a precision straight stylus designed for everyday measurement and probing tasks. Its rigid carbide stem and high-quality ruby tip deliver reliable, repeatable contact in compact form factors.
- Thread: M2 thread for secure mounting in compatible probes and holders
- Overall length: 18 mm, offering a compact profile for tight spaces
- Stem material: Carbide stem delivers exceptional rigidity and wear resistance
- Stem configuration: Single- or multi-stepped stem to fit diverse setups
- Tip range: Ruby ball tip sizes from Ø0.2 mm up to Ø1.0 mm using high-quality ruby balls
- Product designation: Type B straight stylus optimized for standard, everyday use
- Customization: Additional sizes available on request via configurator or email
This combination provides accurate tactile feedback and stable contact during probing, helping to improve measurement repeatability. The carbide stem minimizes deflection under load, while the ruby ball delivers consistent, durable performance across repeated measurements. With an 18 mm length and M2 threading, it integrates smoothly with standard inspection tools, making it a dependable choice for metrology, electronics testing, and micro-assembly workflows. If you need sizes beyond Ø1.0 mm, you can request them through the configurator or by email to tailor the tip precisely to your task.

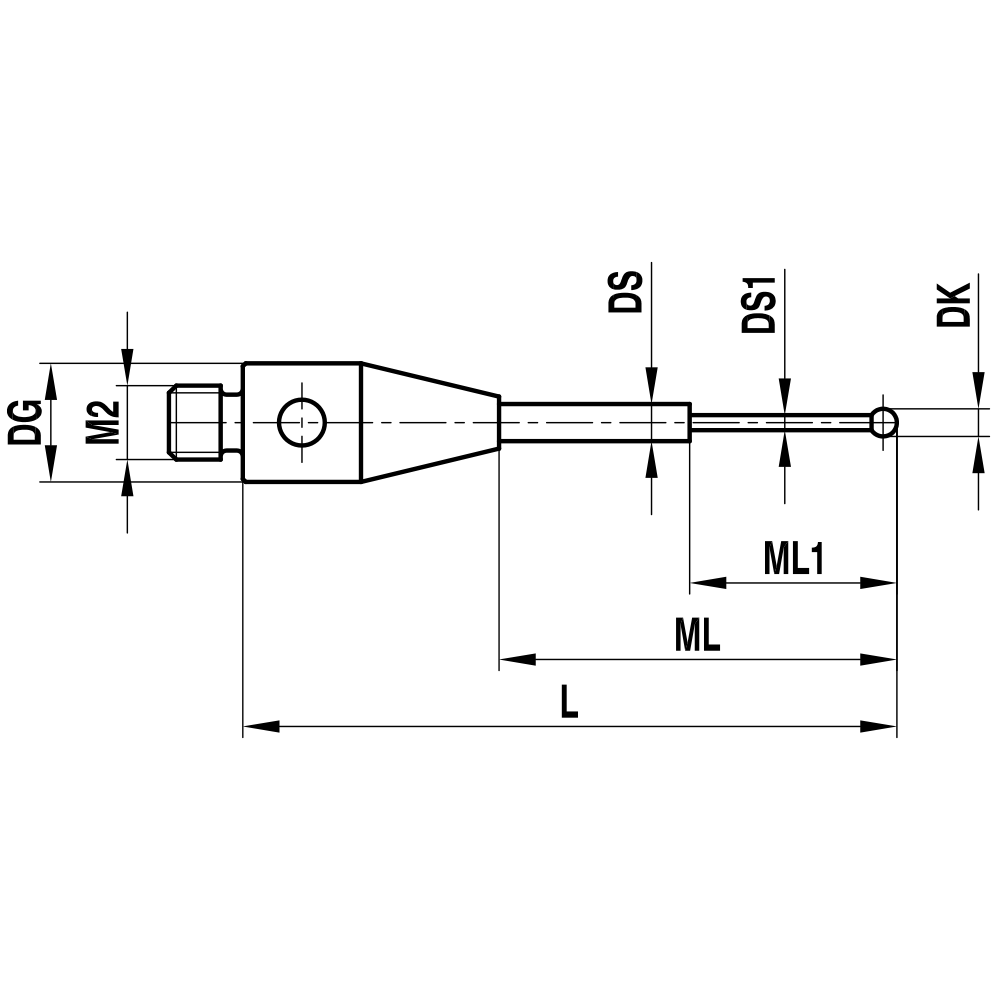

| Styli Type | Type B |
| Thread Size | M2 |
| Ball Diameter (DK) | 0.8 |
| Overall Length (L) | 18 |
| Shank Diameter (DG) | 3 |
| Measuring Length (ML) | 13.5 |
| Neck Diameter (DS) | 1 |
| Stem Material | carbide |
| Base Material | stainless steel |
| Prob Ball Material | ruby |
