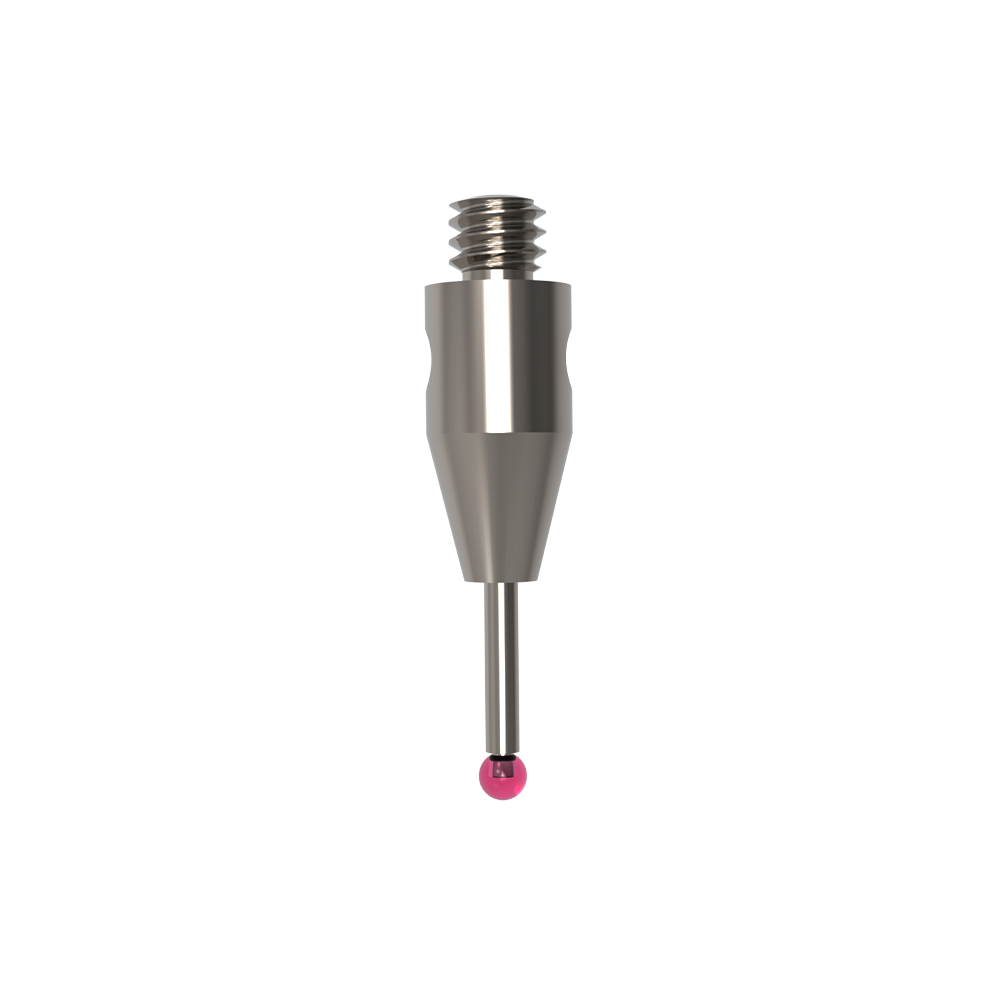

ITP Straight Styli - Type A - Ruby Ball - M2 Thread x 10.5mm Overall Length - THM2010R3010
| Styli Type | Type A |
| Thread Size | M2 |
| Ball Diameter (DK) | 1 |
| Overall Length (L) | 10.5 |
| Shank Diameter (DG) | 3 |
| Measuring Length (ML) | 4.5 |
Learn more about Klarna
Introducing the ITP Straight Styli – Type A with Ruby Ball, a precise, ready-to-use probing solution for everyday measurement tasks. Designed for technicians and engineers who value reliable contact sensing, this stylus pairs a rigid carbide stem with a high-quality ruby ball tip for consistent results.
- Thread: M2 external thread for secure, compatible attachment to probing heads and instruments.
- Overall length: 10.5 mm total length, compact design ideal for tight spaces.
- Tip material: Ruby ball tip to deliver a hard, wear-resistant contact surface with excellent repeatability; available in diameters ranging from Ø0.5 mm to Ø5.0 mm on these styli.
- Stem material: Carbide stem for exceptional rigidity and minimal deflection during touch sensing.
- Configuration: Type A straight stylus optimized for standard probing tasks and broad compatibility.
- Customization: Additional ruby ball sizes can be requested via the configurator or by email.
Built for dependable performance, this straight stylus minimizes deflection under contact, helping you achieve repeatable measurements across multiple setups. The combination of a rigid carbide shaft and a precision ruby ball tip provides a durable, long-lasting probing solution for CMM work, fixture-based inspection, and routine metrology tasks. Whether you’re profiling a smooth surface or verifying feature dimensions, this stylus delivers consistent contact geometry and surface integrity.

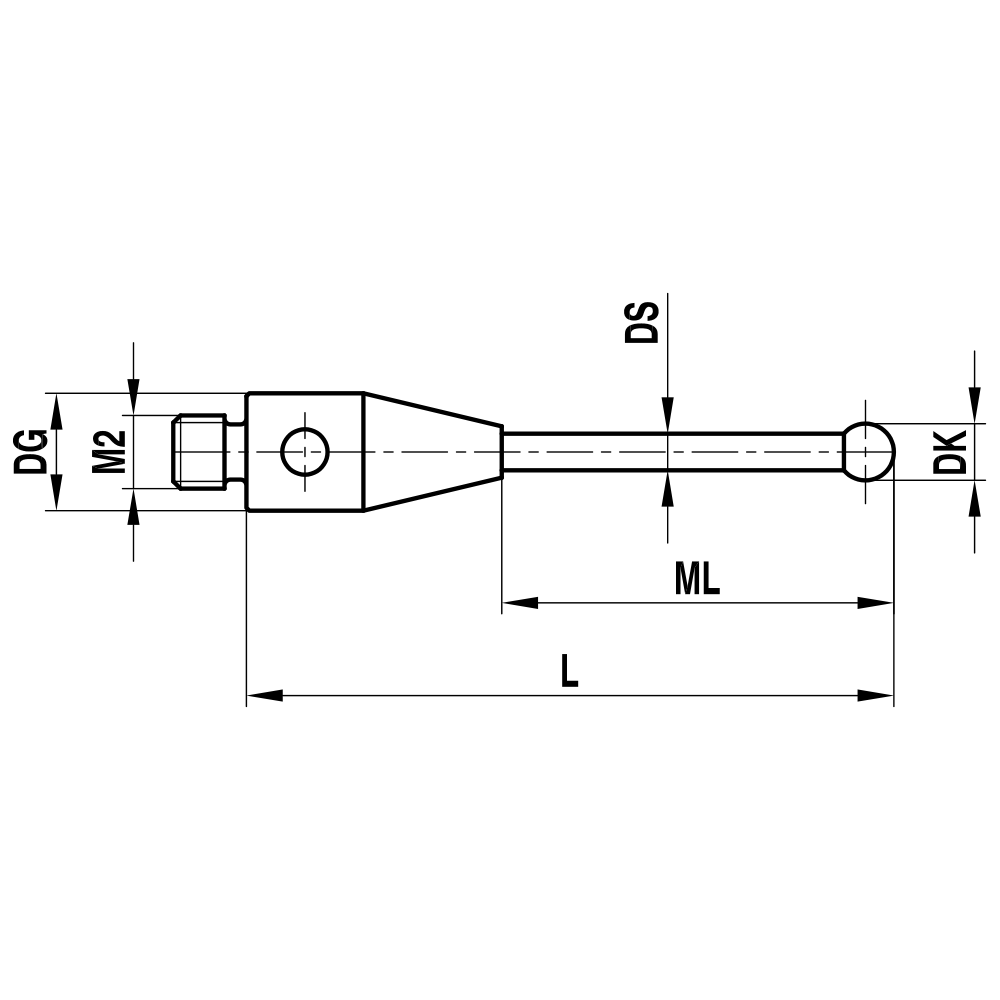

| Styli Type | Type A |
| Thread Size | M2 |
| Ball Diameter (DK) | 1 |
| Overall Length (L) | 10.5 |
| Shank Diameter (DG) | 3 |
| Measuring Length (ML) | 4.5 |
| Neck Diameter (DS) | 0.7 |
| Stem Material | carbide |
| Base Material | stainless steel |
| Prob Ball Material | ruby |
