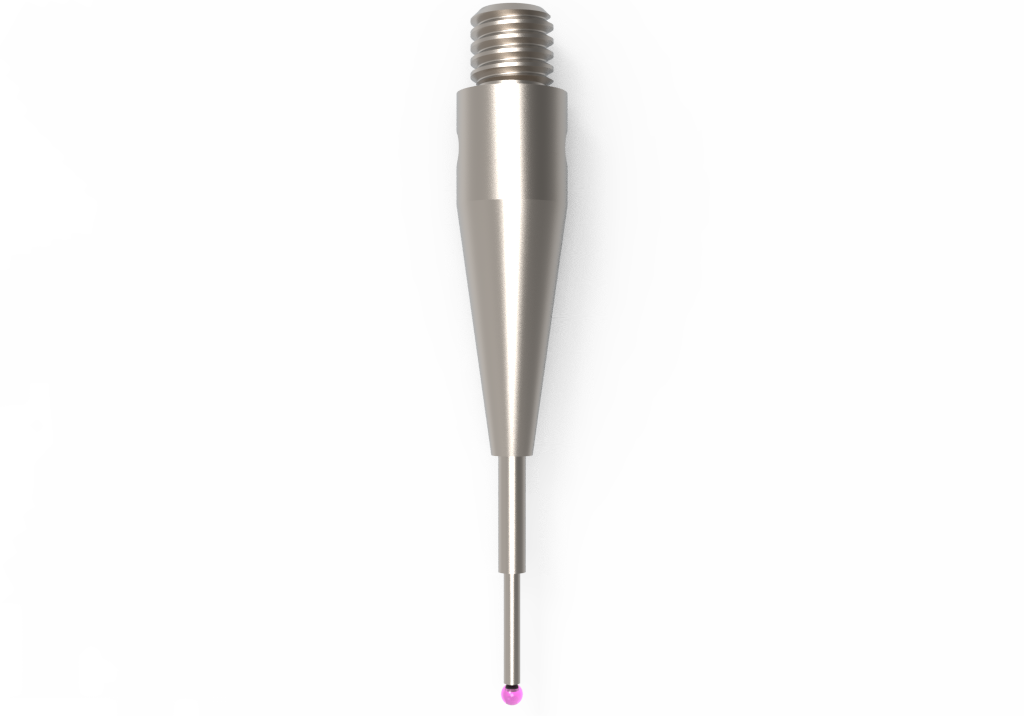

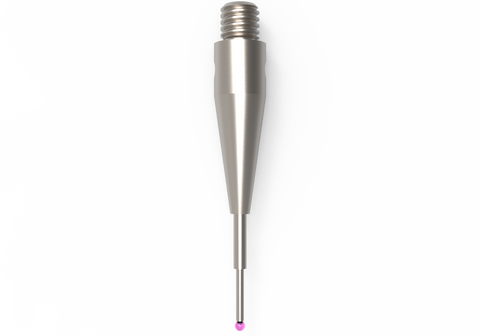

ITP Straight Styli - Type B - Ruby Ball - M3 Thread x 22mm Overall Length - THM300804022
| Styli Type | Type B |
| Thread Size | M3 |
| Ball Diameter (DK) | 0.8 |
| Overall Length (L) | 22 |
| Shank Diameter (DG) | 4 |
| Measuring Length (ML) | 9 |
Learn more about Klarna
ITP Straight Styli Type B with a ruby ball tip are precision probes designed for demanding metrology work. Built for professionals who require stable, repeatable contact in CMM setups and micro-dimension measurements.
- Ball Tip Diameters: Ruby balls from Ø0.2 mm to Ø1.0 mm provide the right contact geometry for tiny features or larger surface areas.
- Stem Material: Carbide stem delivers exceptional rigidity and minimal deflection under load, boosting measurement repeatability.
- Stem Configuration: Available as single- or multi-stepped stems to suit complex probing paths and access constraints.
- Thread: M3 thread compatibility for easy mounting on standard probe interfaces.
- Overall Length: 22 mm overall length for compact integration in tight tooling envelopes.
- Customization: Other sizes can be requested via configurator or by e-mail to match specific applications.
These styli are designed to translate precise physical contact into reliable digital readings. The carbide stem minimizes bending and wear, while the high-quality ruby ball ensures smooth contact with minimal edge loading, contributing to stable measurements over many cycles. The Type B form factor is versatile for a wide range of probing scenarios, from delicate surface scans to fine-feature inspection, making them a dependable choice for accuracy-critical workflows.

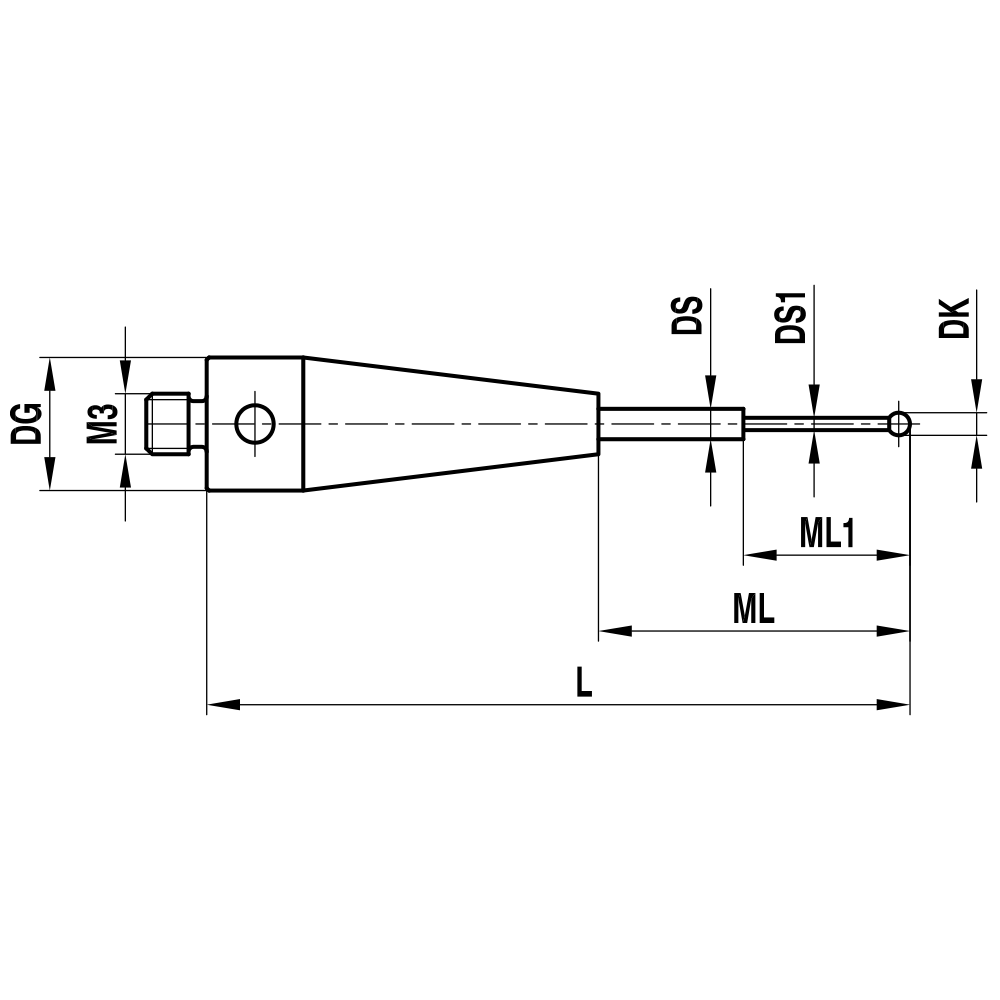

| Styli Type | Type B |
| Thread Size | M3 |
| Ball Diameter (DK) | 0.8 |
| Overall Length (L) | 22 |
| Shank Diameter (DG) | 4 |
| Measuring Length (ML) | 9 |
| Neck Diameter (DS) | 1 |
| Stem Material | carbide |
| Base Material | stainless steel |
| Prob Ball Material | ruby |
