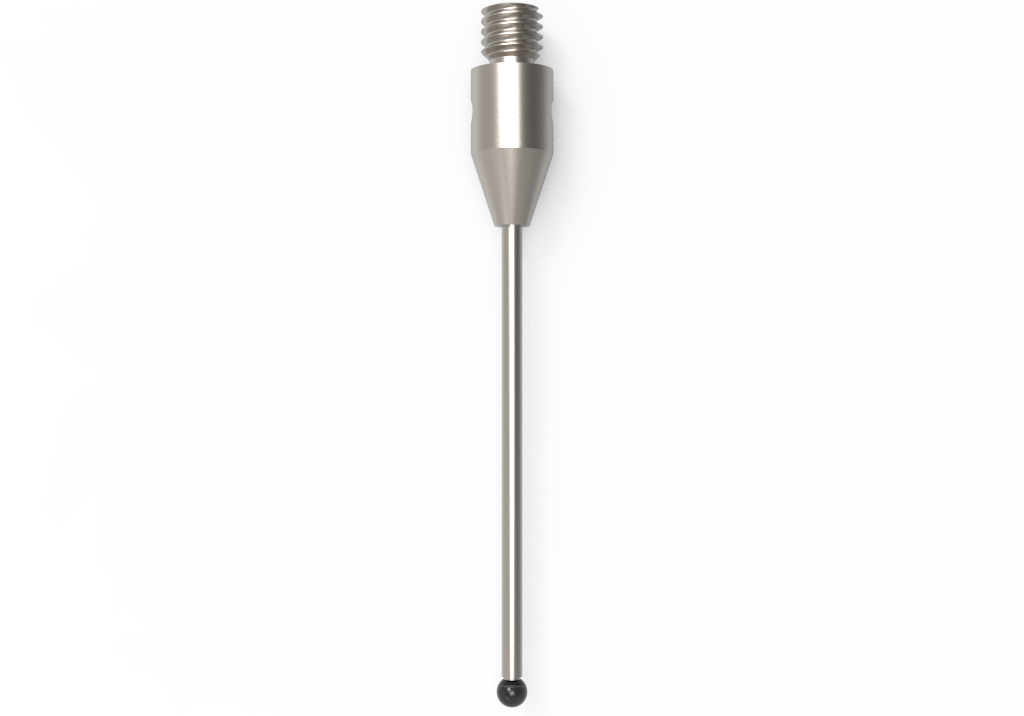

ITP Straight Styli - Type A - Silicon Nitride Ball - M3 Thread x 30.75mm Overall Length - THM3S1504031
| Styli Type | Type A |
| Thread Size | M3 |
| Ball Diameter (DK) | 1.5 |
| Overall Length (L) | 30.75 |
| Shank Diameter (DG) | 4 |
| Measuring Length (ML) | 23.25 |
Learn more about Klarna
ITP Straight Styli Type A with a silicon nitride ball and M3 thread offers a robust, precision probing solution for CMM and scanning applications. Designed for everyday measurement tasks, this carbide-stem stylus delivers reliable contact and repeatable results, especially on aluminum workpieces.
- Ball Material: Silicon nitride ball provides excellent wear resistance and stable contact for accurate scans.
- Stem Material: Carbide stem delivers exceptional rigidity to maintain geometry during probing.
- Thread: M3 thread for secure mounting in standard probe holders and stylus assemblies.
- Overall Length: 30.75 mm, offering a practical reach for common fixtures and recessed features.
- Ball Size Range: Part of a product family with ball sizes from Ø1.5 mm to Ø5.0 mm; exact size available within the range, with additional dimensions offered on request via configurator or email.
- Recommended Use: Particularly well-suited for scanning workpieces made of untreated aluminum, where the silicon nitride ball minimizes wear and maintains precision.
- Custom Dimensions: If you need dimensions outside standard offerings, submit a request through the configurator or by email for a tailored solution.
This combination of high rigidity, wear-resistant ball material, and a concise 30.75 mm length translates into reliable, repeatable measurements across a variety of test setups. The carbide stem resists bending under typical probing loads, while the silicon nitride ball preserves a precise contact point, helping you achieve tighter tolerances on aluminum parts. The M3 mounting and standard length streamline integration with existing equipment, making this stylus a dependable choice for routine quality checks, fixture validation, and process control in manufacturing environments.
| Styli Type | Type A |
| Thread Size | M3 |
| Ball Diameter (DK) | 1.5 |
| Overall Length (L) | 30.75 |
| Shank Diameter (DG) | 4 |
| Measuring Length (ML) | 23.25 |
| Neck Diameter (DS) | 1 |
| Stem Material | carbide |
| Base Material | stainless steel |
| Prob Ball Material | silicon nitride |
