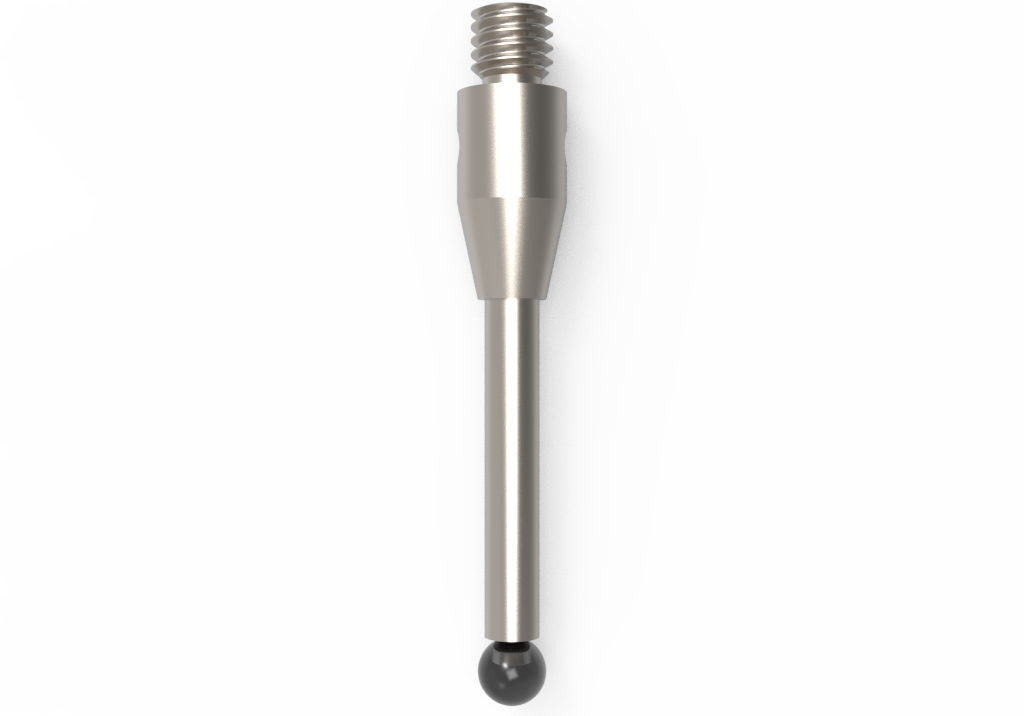

ITP Straight Styli - Type A - Silicon Nitride Ball - M3 Thread x 22.25mm Overall Length - THM3S2504022
| Styli Type | Type A |
| Thread Size | M3 |
| Ball Diameter (DK) | 2.5 |
| Overall Length (L) | 22.25 |
| Shank Diameter (DG) | 4 |
| Measuring Length (ML) | 14.75 |
Learn more about Klarna
The ITP Straight Stylus Type A with a silicon nitride ball is a dependable CMM probing accessory designed for everyday precision tasks. It combines a carbide stem for rigidity with a silicon nitride ball, delivering reliable scanning performance—especially on untreated aluminum surfaces.
- Thread: M3
- Overall Length: 22.25 mm
- Ball Material: Silicon nitride
- Stem Material: Carbide
- Ball Size Range: Part of the Type A range, with balls from Ø1.5 mm to Ø5.0 mm
- Intended Use: Straight stylus for everyday standard use and scanning
- Customization: Additional dimensions available via configurator or by email
The carbide stem provides exceptional rigidity, enabling a wide range of dimensions while maintaining probing stability. The silicon nitride ball offers durable wear characteristics and smooth contact, making it well-suited for scanning workpieces made of untreated aluminum. For projects requiring specific dimensions beyond the standard, you can request further sizes through the configurator or by contacting us directly.

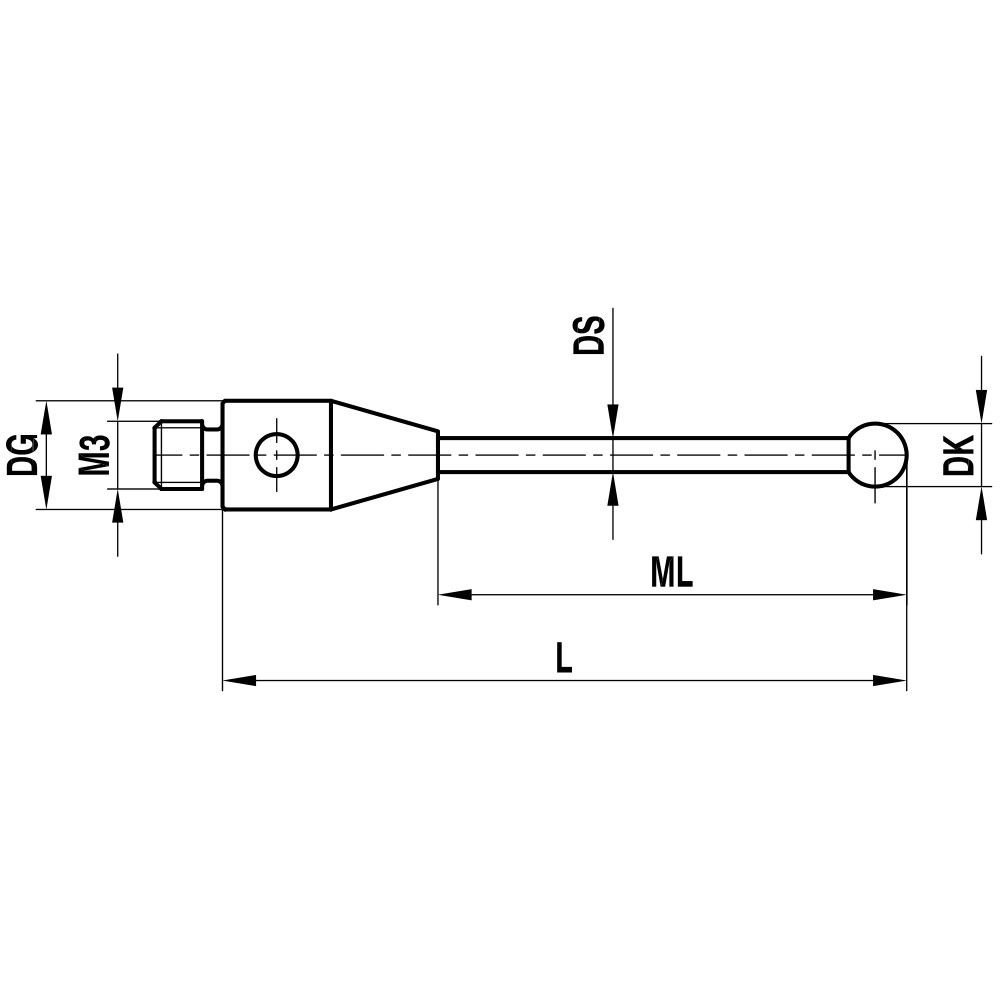

| Styli Type | Type A |
| Thread Size | M3 |
| Ball Diameter (DK) | 2.5 |
| Overall Length (L) | 22.25 |
| Shank Diameter (DG) | 4 |
| Measuring Length (ML) | 14.75 |
| Neck Diameter (DS) | 2 |
| Stem Material | carbide |
| Base Material | stainless steel |
| Prob Ball Material | silicon nitride |
