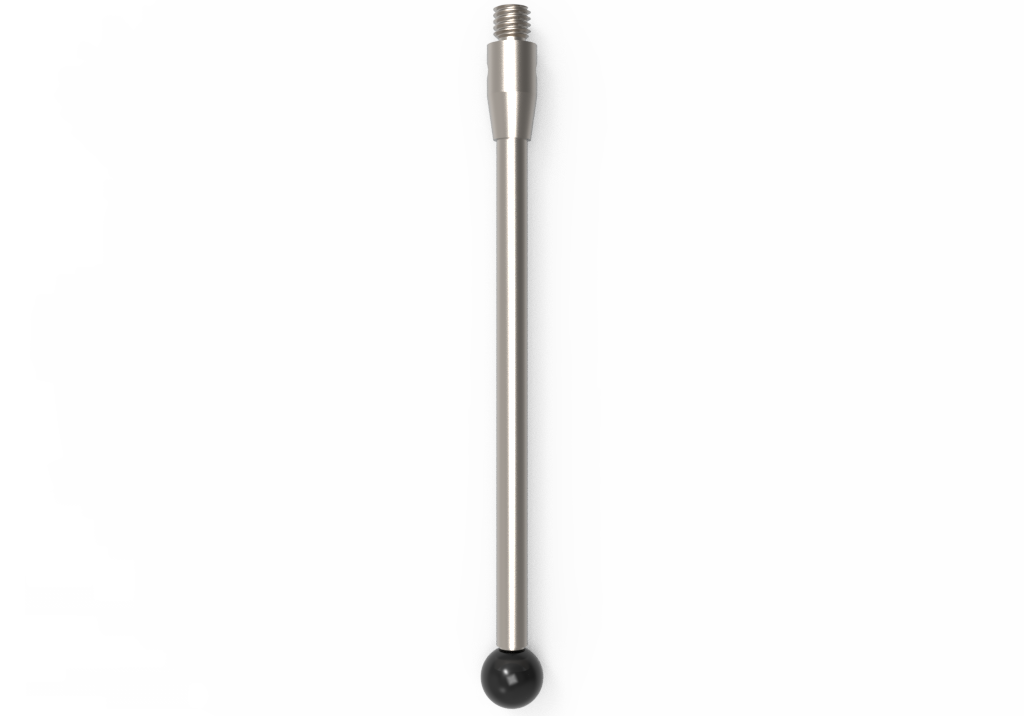

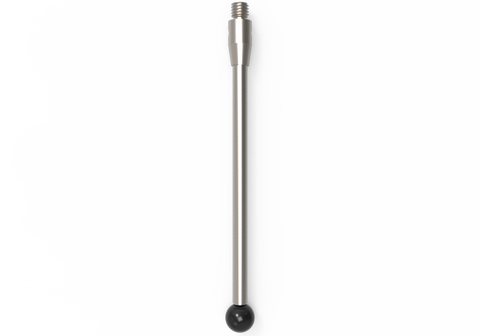

ITP Straight Styli - Type A - Silicon Nitride Ball - M3 Thread x 52.5mm Overall Length - THM3S5004052
| Styli Type | Type A |
| Thread Size | M3 |
| Ball Diameter (DK) | 5 |
| Overall Length (L) | 52.5 |
| Shank Diameter (DG) | 4 |
| Measuring Length (ML) | 45 |
Learn more about Klarna
The ITP Straight Styli Type A with Silicon Nitride Ball (Model THM3S5004052) is a precision probing stylus designed for everyday metrology tasks. Built for professionals who need reliable rigidity and smooth scans, it pairs a carbide stem with a resilient silicon nitride ball for dependable contact in CMM measurements.
- Thread: M3 thread for secure, quick compatibility with standard probe heads.
- Overall length: 52.5 mm to balance reach and handling in tight measurement environments.
- Stem material: Carbide stem delivers exceptional rigidity across a wide range of dimensions.
- Ball material: Silicon nitride ball chosen for wear resistance and smooth interaction with workpieces.
- Ball size range: Part of a product range offering ball diameters from Ø1.5 mm to Ø5.0 mm.
- Recommended use: Particularly suited for scanning workpieces made of untreated aluminum.
- Customization: Further dimensions can be requested via the configurator or by email.
Benefits: The rigid carbide stem minimizes deflection during probing, yielding stable, repeatable measurements across diverse geometries. The silicon nitride ball reduces wear and abrasion when contact is made with aluminum surfaces, helping maintain accuracy over time. With its 52.5 mm length and M3 connection, this stylus fits seamlessly into common inspection setups, enabling efficient changeovers and consistent scan results. When you need a reliable, long-lasting stylus for everyday metrology tasks, this Type A design delivers dependable performance with the right contact profile for a wide range of parts.
| Styli Type | Type A |
| Thread Size | M3 |
| Ball Diameter (DK) | 5 |
| Overall Length (L) | 52.5 |
| Shank Diameter (DG) | 4 |
| Measuring Length (ML) | 45 |
| Neck Diameter (DS) | 2.5 |
| Stem Material | carbide |
| Base Material | stainless steel |
| Prob Ball Material | silicon nitride |
