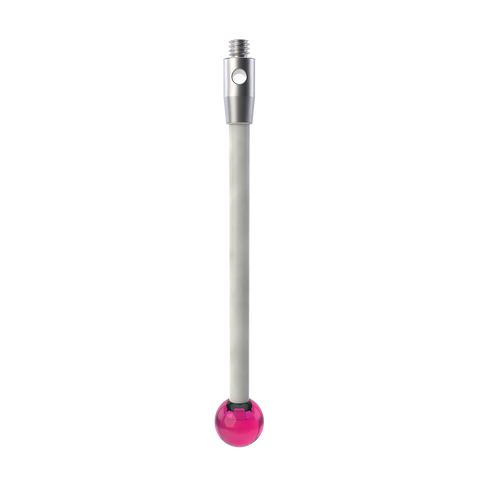

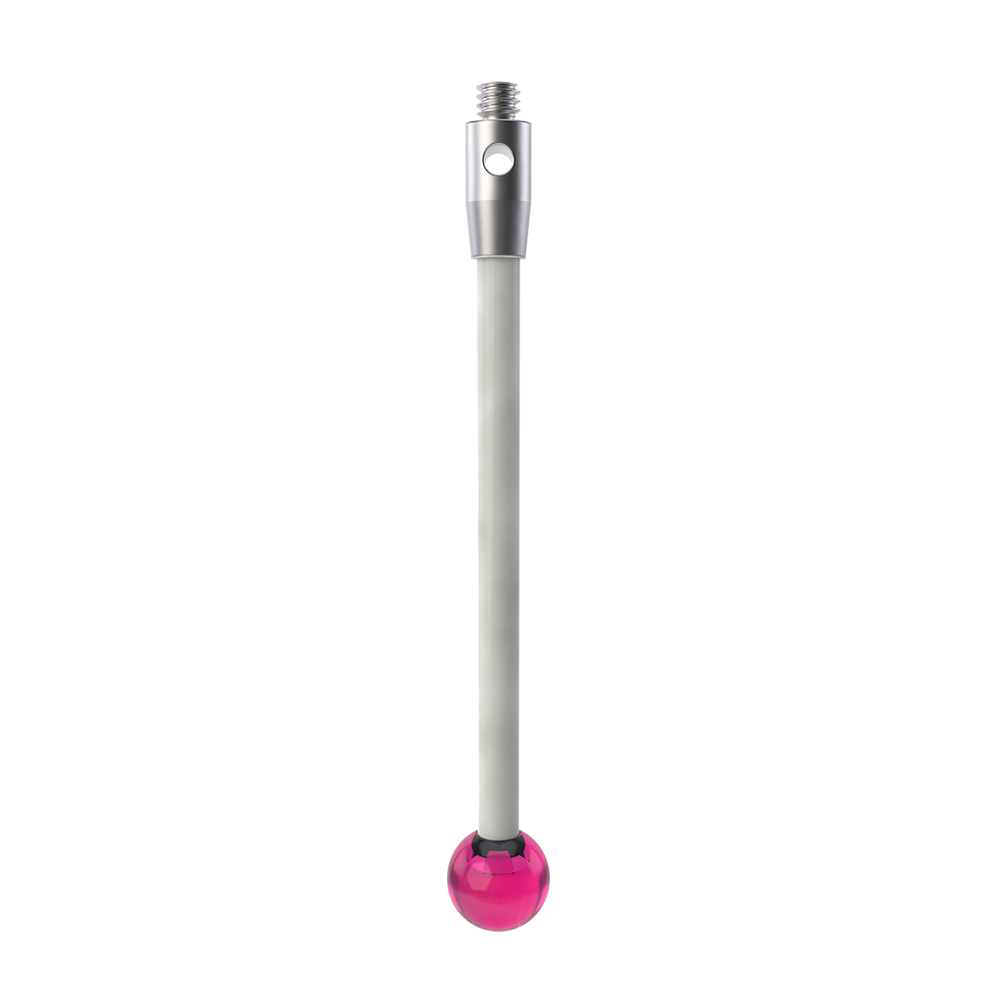

ITP Straight Styli - Type A - Ruby Ball - M2 Thread x 38mm Overall Length - TKM205003038
| Styli Type | Type A |
| Thread Size | M2 |
| Ball Diameter (DK) | 5 |
| Overall Length (L) | 38 |
| Shank Diameter (DG) | 3 |
| Measuring Length (ML) | 32 |
Learn more about Klarna
ITP Straight Styli Type A with Ruby Ball is a precision probing stylus designed for metrology and inspection tasks. The lightweight ceramic stem delivers rigidity for repeatable contact, while a premium ruby ball provides durable, consistent tactile feedback.
- Model: Type A straight stylus with ruby ball
- Stem material: High-performance ceramics for low weight and high rigidity
- Ruby ball: Premium ruby contact ball, available in Ø3.0–Ø6.0 mm diameters
- Ball end range: Ø3,0 mm to Ø6,0 mm standard options within the family
- Thread: M2 thread on the head for secure attachment
- Overall length: 38 mm
- Customization: Additional dimensions can be requested via configurator or by e-mail
This stylus enhances measurement accuracy by minimizing deflection and reducing weight in the hand, thanks to its ceramic stem. The ruby ball end provides a hard, wear-resistant surface that maintains precise contact across different materials. With a compact 38 mm length and M2 threading, it fits a wide range of probe stacks and fixtures, making it suitable for routine tactile probing and inspection routines. If you need a different ball size or overall dimension, you can request custom options through the configurator or by emailing for a tailored solution.

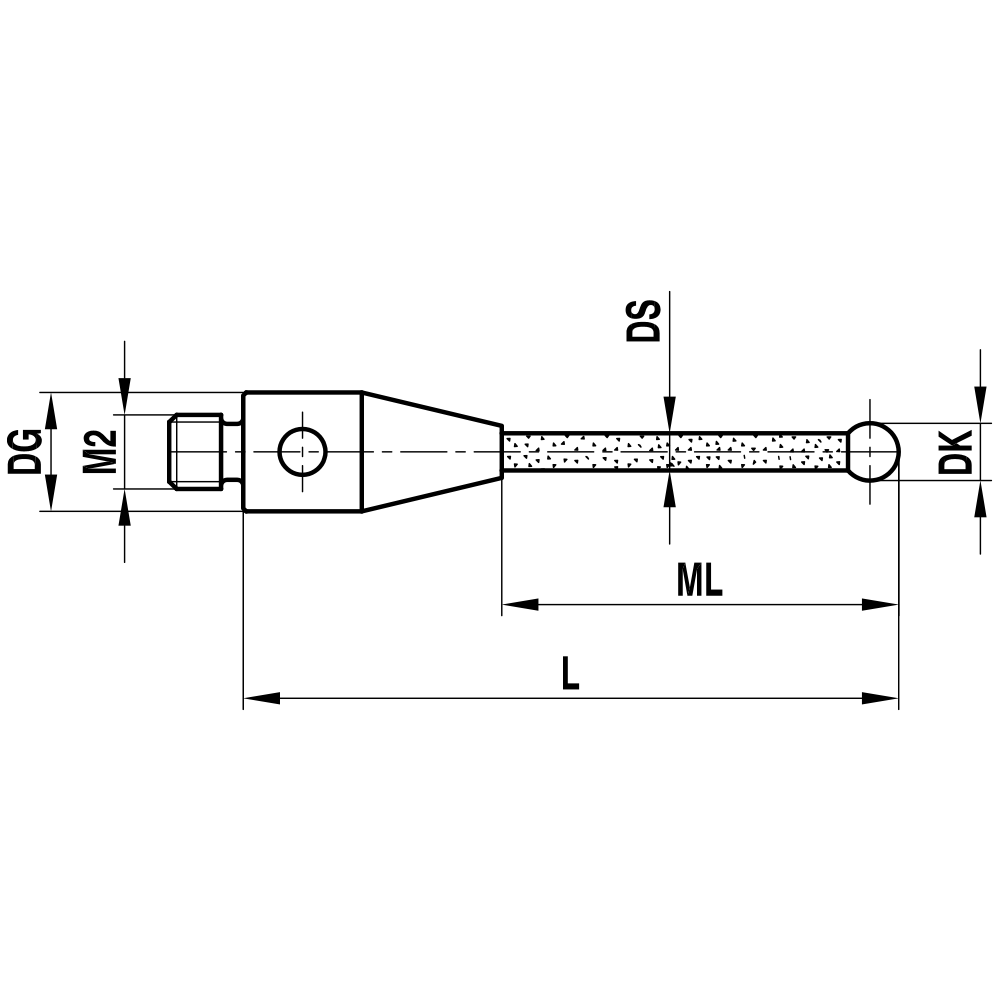

| Styli Type | Type A |
| Thread Size | M2 |
| Ball Diameter (DK) | 5 |
| Overall Length (L) | 38 |
| Shank Diameter (DG) | 3 |
| Measuring Length (ML) | 32 |
| Neck Diameter (DS) | 2 |
| Stem Material | ceramic |
| Base Material | stainless steel |
| Prob Ball Material | ruby |
