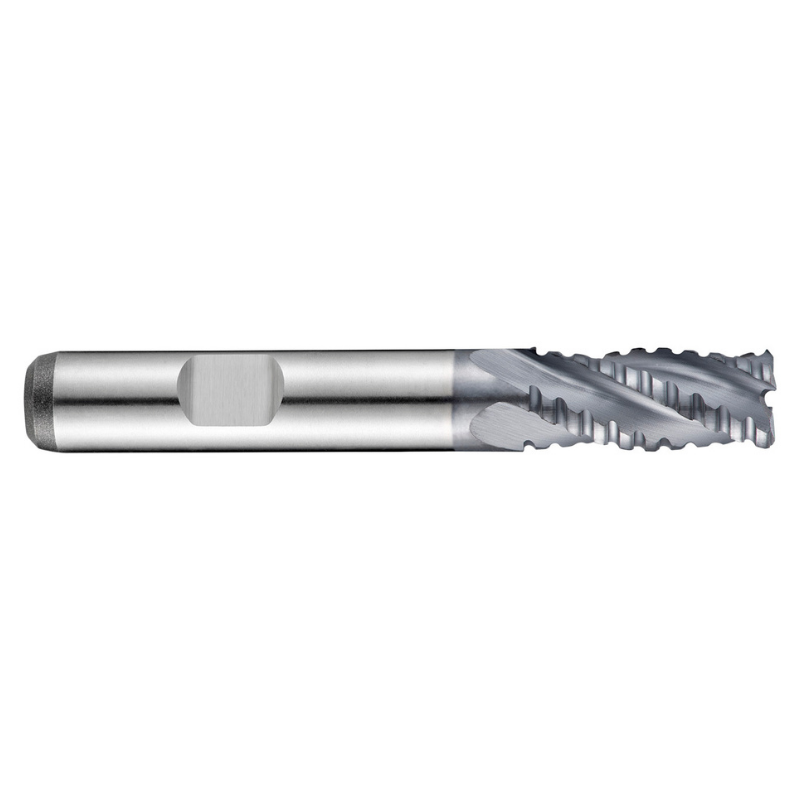

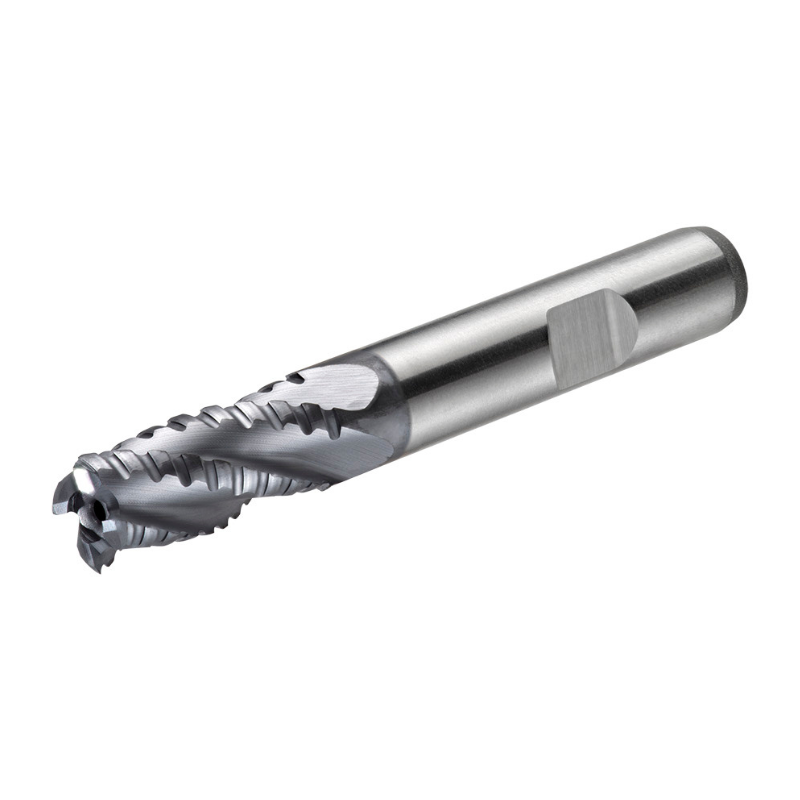

Dormer Pramet C413 12.0mm HSS-E TICN Flatted Shank Multi-Flute Roughing (NF) Standard Length End Mill DIN 844 K

The Dormer Pramet C413 12.0mm HSS-E TiCN Flatted Shank Multi-Flute Roughing End Mill is a robust 12 mm diameter tool engineered for efficient roughing in steel, cast iron, and copper alloys. Designed for shoulder milling, slot milling, and ramping, it combines a wear-resistant TiCN coating with a cobalt-based HSS-E core for dependable performance in demanding milling jobs.

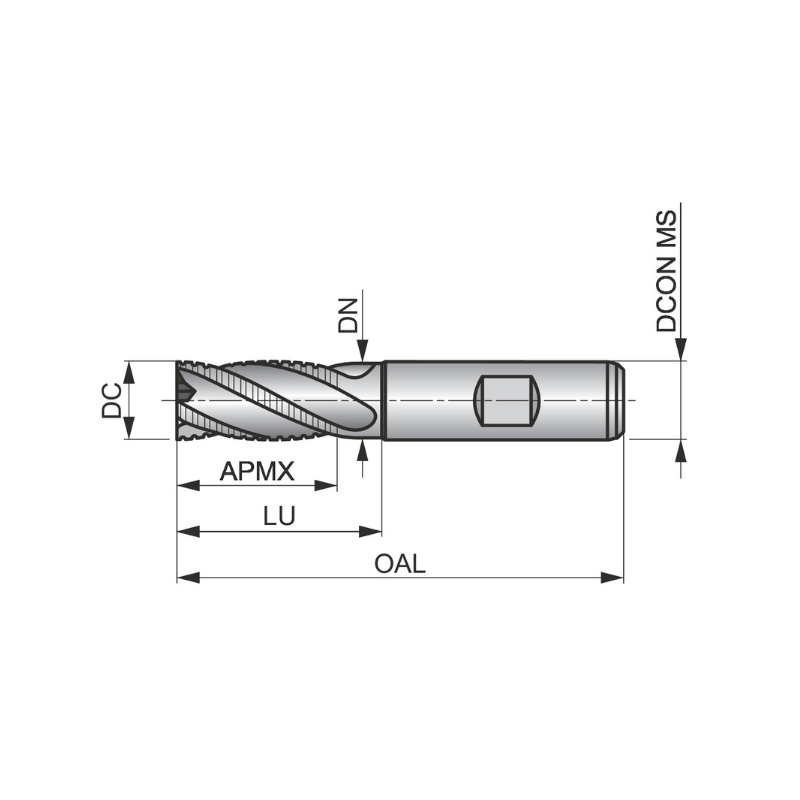

• Diameter: 12 mm
• Length of cut: 26 mm
• Overall length: 83 mm
• Flutes: 4-flute roughing profile
• Shank: Weldon 12 mm
• Material & coating: HSS-E with TiCN coating (cobalt-based)
• Coating: TiCN for improved wear resistance
• Profile: NF flat coarse pitch
• Helix angle: 30° for efficient cutting and chip evacuation
• Rake angle: 12° for shoulder milling and ramping
• Standards: DIN 844 K compliant
• Applications: Shoulder milling, slot milling, and ramping
• Materials: Suitable for free-machining steel, plain carbon steel, alloy steel, cast iron, and copper alloys

With its 4-flute design and TiCN-coated HSS-E body, this end mill delivers steady material removal and good edge life under higher cutting speeds. The 30° helix and 12° rake angle optimize cutting forces and chip flow, helping maintain dimensional accuracy during roughing in a range of common metals. The flatted Shank provides secure seating in 12 mm tool holders, reducing run-out and improving stability in aggressive milling scenarios. The compact 26 mm length of cut enables precise entry into pockets and shoulders, while the 83 mm overall length offers reach for deeper cavities and ramping operations. This makes it a reliable, versatile choice for shops aiming to maximize productivity in free-machining steel, cast iron, and copper alloy applications.
