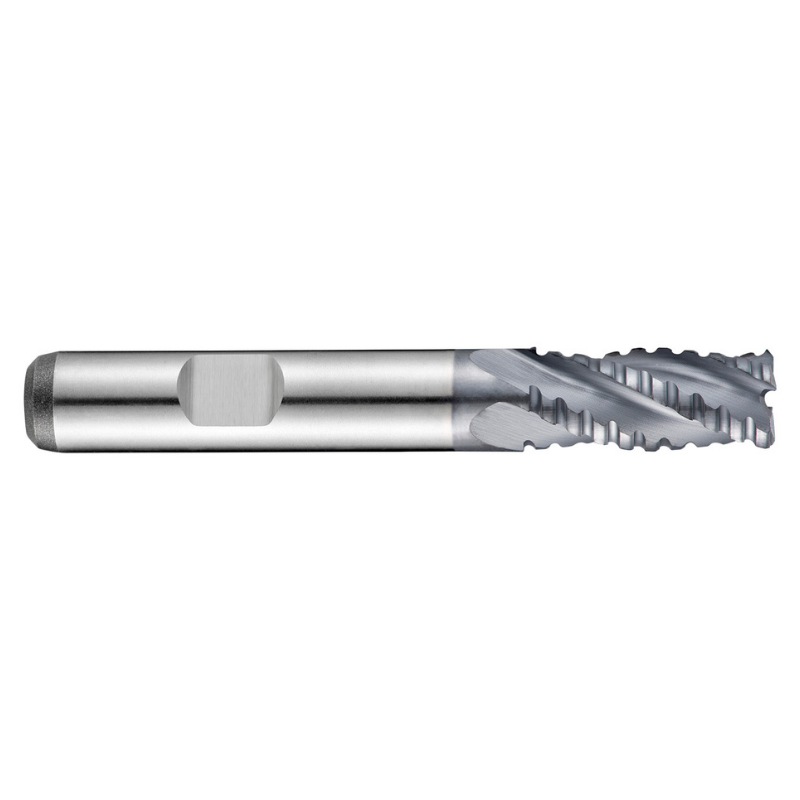

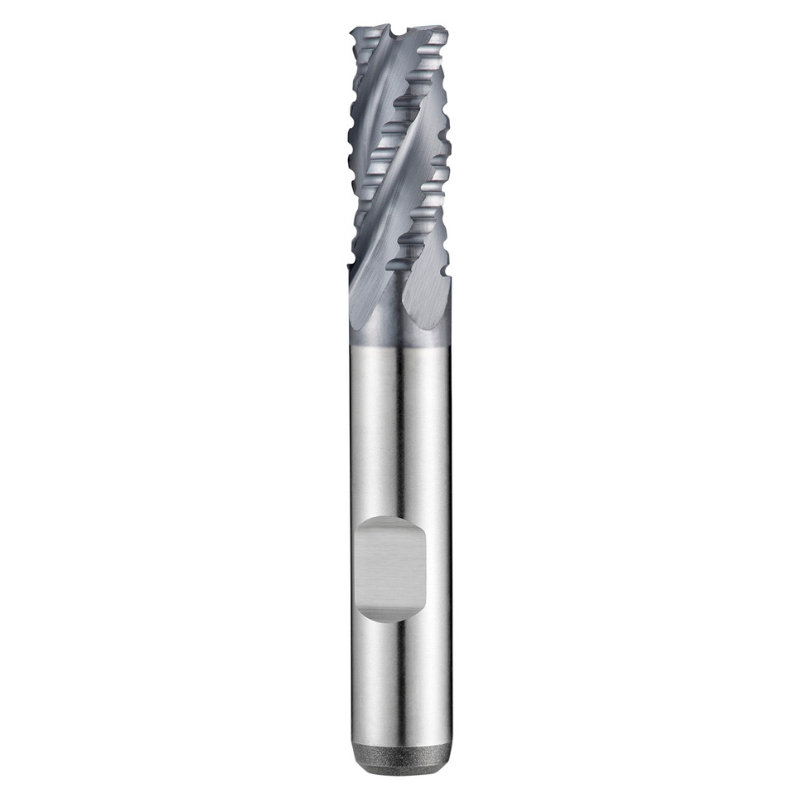

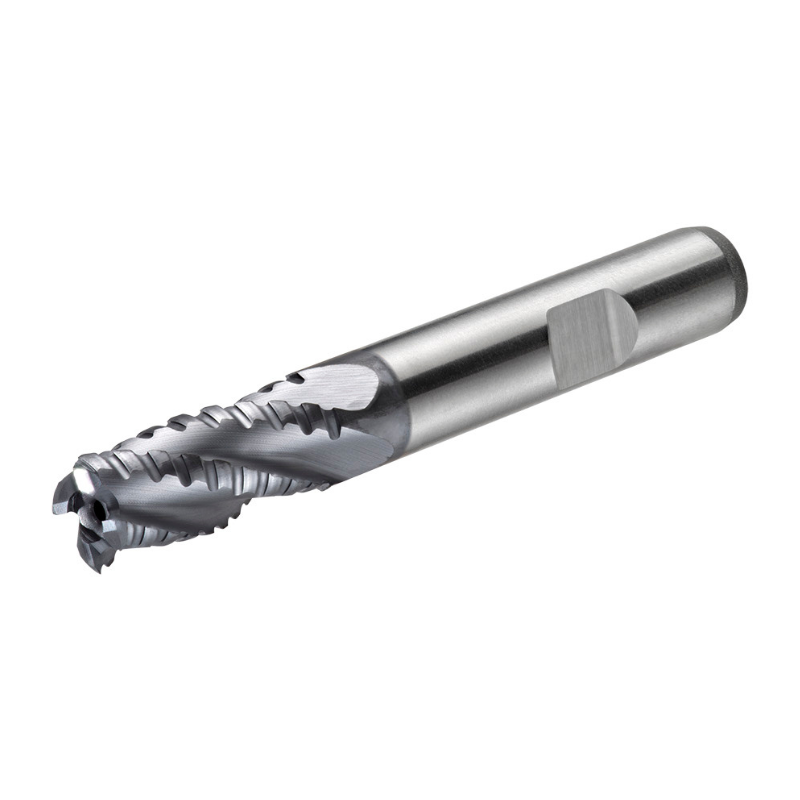

Dormer Pramet C413 10.0mm HSS-E TICN Flatted Shank Multi-Flute Roughing (NF) Standard Length End Mill DIN 844 K

Dormer Pramet C413 10.0mm HSS-E TiCN coated end mill is a robust roughing tool designed for shoulder milling, slot milling, and ramping on a range of metals, delivering reliable material removal with consistent performance.

• Diameter: 10.0 mm
• Flutes and geometry: 4-flute NF flat coarse pitch profile for efficient chip evacuation

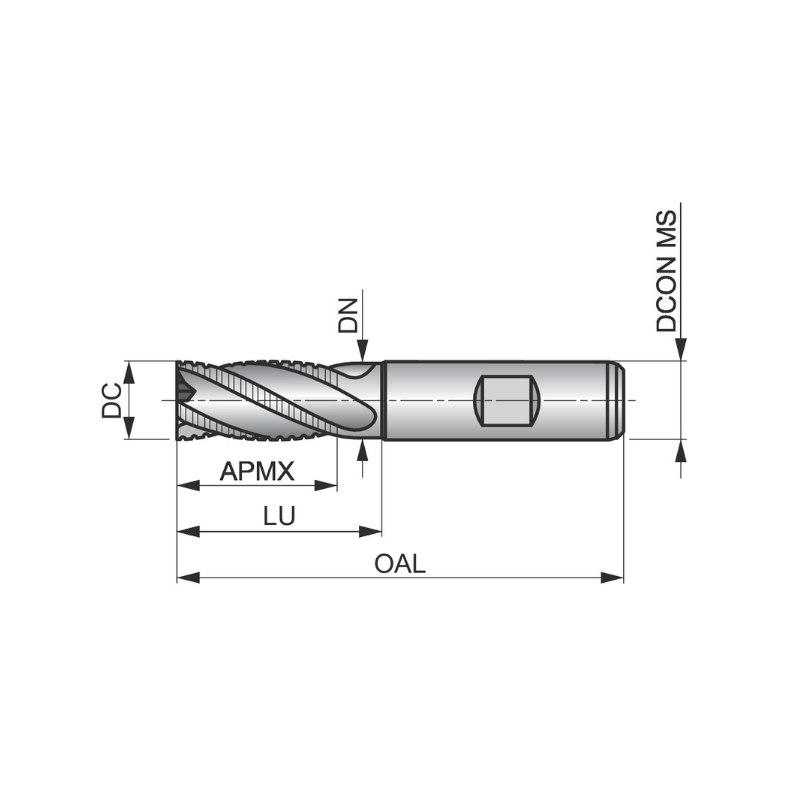

• Length and shank: 22 mm length of cut, 72 mm overall length; DIN 844 K Weldon 10 mm shank
• Material and coating: Cobalt-based HSS-E with TiCN coating for enhanced wear resistance
• Helix and rake: 30° helix and 12° rake angle optimized for shoulder milling, slot milling, and ramping
• Standards: DIN 844 K standard ensures compatibility with common tool holders

This end mill is engineered to boost productivity on tough materials. The TiCN coating reduces wear and built-up edge, extending tool life, while the four-flute design enables steady, aggressive material removal. The Weldon 10 mm shank provides secure clamping for repeatable accuracy during demanding operations. Its geometry is well-suited for free-machining plain carbon and alloy steels, cast iron, and copper or copper alloys, making it a versatile choice for mixed-material milling programs that require reliable roughing with good downstream finishing potential.
