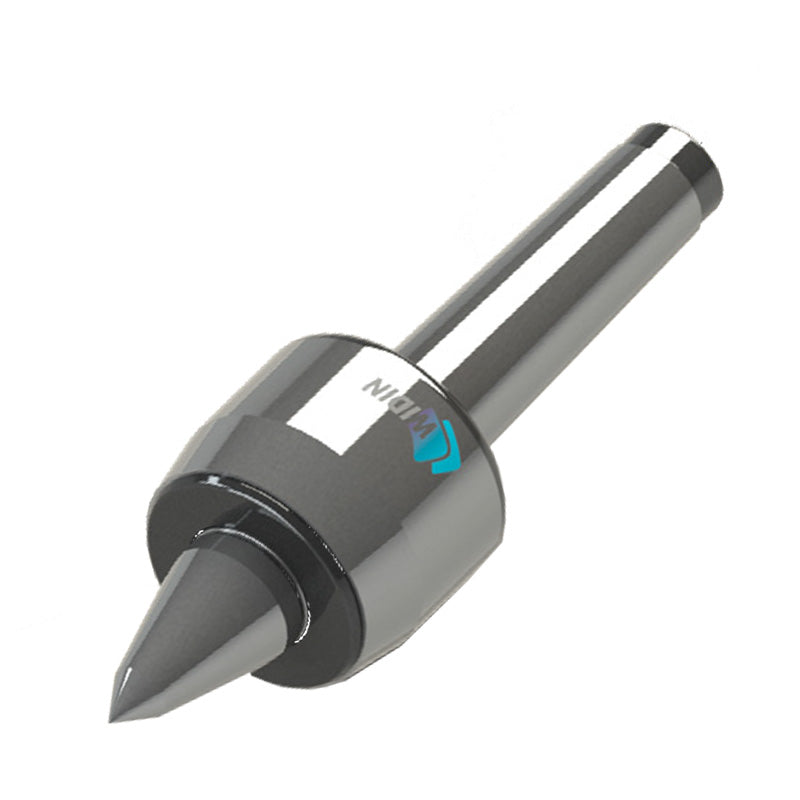

Widin Live Centre - Standard Lathe - NCB Type - NO.5

Widin Live Centre - Standard Lathe - NCB Type - NO.5

SKU:LC-5NCB
NC STANDARD LATHE - LIVE CENTER Morse Tapers Available - No. 3 - No. 6 Sealed to prevent the inflow of cutting oils and foreign substances High precision of rotational accuracy and durability t... Read more ↓
Specification
SizeMT5
Head Diameter82
Point Length65
Point Diameter40
Max RPM3400
Max Load750
View all specifications ↓
£389.79
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30
  • NC STANDARD LATHE - LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 6
  • Sealed to prevent the inflow of cutting oils and foreign substances
  • High precision of rotational accuracy and durability through triplexed bearing structure
  • Shaft heated to 58 - 62 HRc
  • Run Out 0.00012" or 0.003mm

    • Size MT5
    Head Diameter 82
    Point Length 65
    Point Diameter 40
    Max RPM 3400
    Max Load 750
    Concentricity 0.005

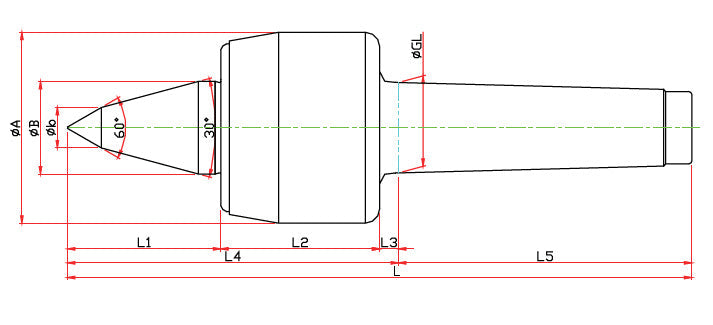

    GL 44.399
    b 16
    L2 65
    L3 6.5
    L4 129.5
    L5 129.5
    L 266

    What time are Protool open?

    We are open Monday to Friday between 8:30am and 5pm.

    Do you offer Free Next Day delivery?

    Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

    We also offer the following:

    • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
    • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
    • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
    • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

    For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

    *T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

    ★★★★★
    Nice experience staff are very helpful and interested...
    Staff are very helpful and interested in providing a good service making us the customer feel valued.
    Bill
    ★★★★★
    first place we look
    honest about stock and prices are competitive.
    Phil
    ★★★★★
    Polite and helpful
    Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
    Graham
    ★★★★★
    Buying experience
    Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
    Jeremy

    Full Range: Widin Live Centre - Standard Lathe - NCB Type

    View full collection →

    You are viewing LC-5NCB. Click any other SKU to view its full details.

    Product SKUSizeHead DiameterPoint LengthPoint DiameterMax RPMMax LoadConcentricityGLbL2L3L4L5LPriceStock Order
    LC-3NCB MT350472248002800.00323.825104559781178£291.24 5 days
    LC-4NCB MT466533238005100.00331.26714556.5114.5101.5216£335.01 5 days
    LC-5NCB ViewingMT582654034007500.00544.39916656.5129.5129.5266£389.79 5 days
    LC-6NCB MT6105784530009400.00563.38418808182182348£967.83 5 days
