Widin Live Centre - Standard Lathe - NCB Type - NO.4
| Size | MT4 |
| Head Diameter | 66 |
| Point Length | 53 |
| Point Diameter | 32 |
Learn more about Klarna
Description

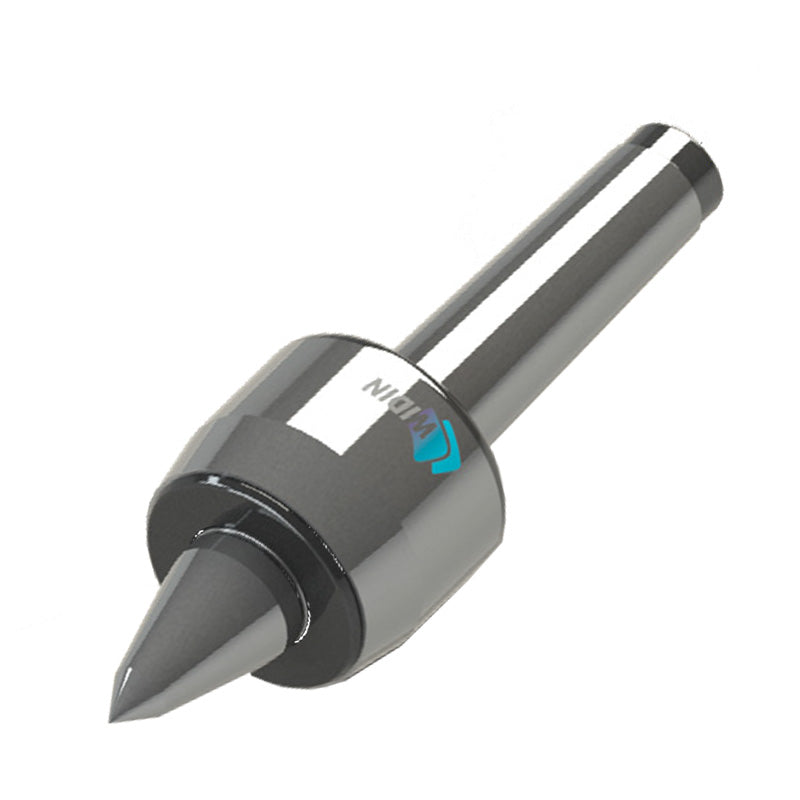

The Widin Live Centre is a precision support tool designed for standard lathes (NCB Type, No.4). It delivers dependable workholding for turning operations, helping you maintain true concentricity and smooth finishes. The unit is sealed to block the inflow of cutting oils and foreign substances, protecting bearings and extending service life.
Built for demanding shop environments, it uses a triplexed bearing structure and a hardened shaft to resist wear while preserving accuracy. With runout as low as 0.00012 inches (0.003 mm) and Morse taper options No.3 and No.6, this live centre offers flexible mounting and reliable, repeatable results across a wide range of setups.
- Low runout for precise turning: Achieve exceptional concentricity with runout of 0.00012" (0.003 mm) to deliver consistent part finishes even at higher speeds.
- Sealed bearings for long life: Sealed design keeps cutting oils and debris out, reducing wear and minimizing maintenance downtime.
- Morse taper compatibility (No.3 and No.6): Easy, secure mounting to match your spindle configuration for fast setup and dependable alignment.
Designed to support tighter tolerances and repeatable results, the Widin Live Centre enhances workflow by reducing rework and maintenance while boosting productivity across a range of turning operations. Its robust construction and protective sealing provide confidence that it will perform reliably from the first cut to the last part, day in and day out.
Part Numbers
- Protool Part Number
- LC-4NCB
- Brand
- Widin
- Category
- Live Centre
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Live Centre - Standard Lathe - NCB Type
View full collection →You are viewing LC-4NCB. Click any other SKU to view its full details.

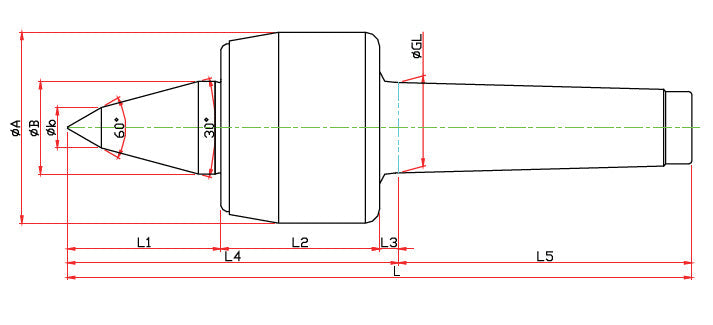

| Product SKU | Size | Head Diameter | Point Length | Point Diameter | Max RPM | Max Load | Concentricity | GL | b | L2 | L3 | L4 | L5 | L | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LC-3NCB | MT3 | 50 | 47 | 22 | 4800 | 280 | 0.003 | 23.825 | 10 | 45 | 5 | 97 | 81 | 178 | £274.29 | 5 days | |
| LC-4NCB Viewing | MT4 | 66 | 53 | 32 | 3800 | 510 | 0.003 | 31.267 | 14 | 55 | 6.5 | 114.5 | 101.5 | 216 | £315.51 | 5 days | |
| LC-5NCB | MT5 | 82 | 65 | 40 | 3400 | 750 | 0.005 | 44.399 | 16 | 65 | 6.5 | 129.5 | 129.5 | 266 | £367.10 | 5 days | |
| LC-6NCB | MT6 | 105 | 78 | 45 | 3000 | 940 | 0.005 | 63.384 | 18 | 80 | 8 | 182 | 182 | 348 | £911.49 | 5 days |
