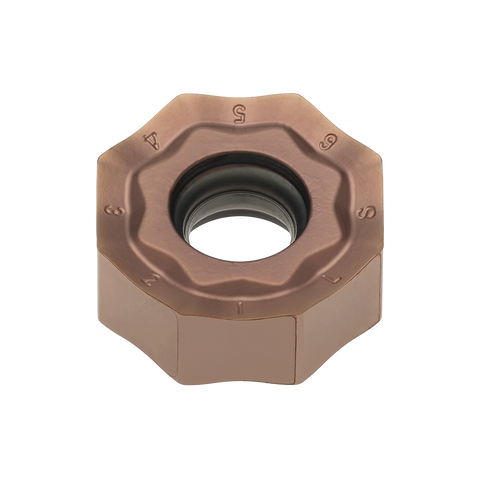

Palbit Indexable Milling Insert - for Face Milling - ONHX 0606 ANEN-LS PHH930

Palbit Indexable Milling Insert - for Face Milling - ONHX 0606 ANEN-LS PHH930

SKU:PAL-1112696X9
The Palbit ONHX indexable milling insert is engineered for precision face milling, offering excellent surface finish and consistent performance. Built with high-quality carbide and advanced cutt... Read more ↓
Material Compatibility
M
S
Specification
ISO CodeONHX 0606 ANEN-LS PHH930
Insert Size and ShapeON0606
Product LinePLUS 91245
GradePHH930
HandNeutral
Cutting Edge Count (CEDC)16
View all specifications ↓
£20.51
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Holders
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit ONHX indexable milling insert is engineered for precision face milling, offering excellent surface finish and consistent performance.

Built with high-quality carbide and advanced cutting geometry, the ONHX insert ensures efficient chip evacuation and long tool life across a variety of materials.

  • Optimized geometry for precision face milling: The ONHX design delivers a smooth cutting action and a high-quality surface finish on a range of materials, reducing rework and time per part.
  • Efficient chip evacuation and stable cutting: The cutting geometry and chip channels are designed to evacuate chips quickly, reducing clogging and improving cycle times across materials.
  • Durable carbide construction for long tool life: Made with high-quality carbide, this insert resists wear and maintains performance over extended cutting cycles.

By choosing the Palbit ONHX 0606 ANEN-LS PHH930, you gain reliable, repeatable face milling performance that supports faster part completion, fewer tool changes, and consistently high-quality surface finishes across a variety of materials.

ISO Code ONHX 0606 ANEN-LS PHH930
Insert Size and Shape ON0606
Product Line PLUS 91245
Grade PHH930
Hand Neutral
Cutting Edge Count (CEDC) 16
Operation Type (CTPT) Face Milling
Tolerance Class Insert (TCINS) H
Insert Shape Code (SC) O
Inscribed Circle Diameter (IC) 6
Insert Thickness (S) 6.25
Corner Radius (RE) 0.8
Cutting Edge Effective Length (LE) 6.2
Fixing Hole Diameter (D1) 6
Chip Breaker (CBMD) LS
Wiper Edge Length (BS) 1

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Palbit ONHX Inserts

View full collection →

You are viewing PAL-1112696X9. Click any other SKU to view its full details.

Product SKUISO CodeInsert Size & ShapeProduct LineInsert Shape Code (SC)Insert Thickness (S)PriceStock Order
PAL-1112053G4 ONHX 0606 ANEN-W PH7920ON0606PLUS 91245O5.96£22.22 5 days
PAL-1112053L5 ONHX 0606 ANEN-W PH5705ON0606PLUS 91245O5.96£22.22 5 days
PAL-1111956L5 ONHX 0606 ANEN-MK PH5705ON0606PLUS 91245O6£19.19 5 days
PAL-1111955G6 ONHX 0606 ANEN-MP PH7740ON0606PLUS 91245O6.2£19.19 5 days
PAL-1111954G6 ONHX 0606 ANEN-LP PH7740ON0606PLUS 91245O6.2£19.19 5 days
PAL-1111956L9 ONHX 0606 ANEN-MK PH5740ON0606PLUS 91245O6£19.19 5 days
PAL-1111955T1 ONHX 0606 ANEN-MP PHP920ON0606PLUS 91245O6.2£20.51 5 days
PAL-1111954P4 ONHX 0606 ANEN-LP PHP930ON0606PLUS 91245O6.2£20.51 5 days
PAL-1111954T1 ONHX 0606 ANEN-LP PHP920ON0606PLUS 91245O6.2£20.51 5 days
PAL-1112696X9 ViewingONHX 0606 ANEN-LS PHH930ON0606PLUS 91245O6.25£20.51 5 days
PAL-1112307T1 ONHX 050500 ANER-W PHP920ON0505PLUS 90845O5.2£16.91 5 days
PAL-1112302T1 ONHX 050505 ANEN-LP PHP920ON0505PLUS 90845O5.2£15.53 5 days
PAL-1112302P4 ONHX 050505 ANEN-LP PHP930ON0505PLUS 90845O5.2£15.53 5 days
PAL-1112302Y6 ONHX 050505 ANEN-LP PHP740ON0505PLUS 90845O5.2£15.53 5 days
PAL-1112304T1 ONHX 050505 ANSN-MP PHP920ON0505PLUS 90845O5.2£15.53 5 days
PAL-1112304P4 ONHX 050505 ANSN-MP PHP930ON0505PLUS 90845O5.2£15.53 5 days
PAL-1112302G6 ONHX 050505 ANEN-LP PH7740ON0505PLUS 90845O5.2£14.23 5 days
PAL-1112307L5 ONHX 050500 ANER-W PH5705ON0505PLUS 90845O5.2£15.74 5 days
