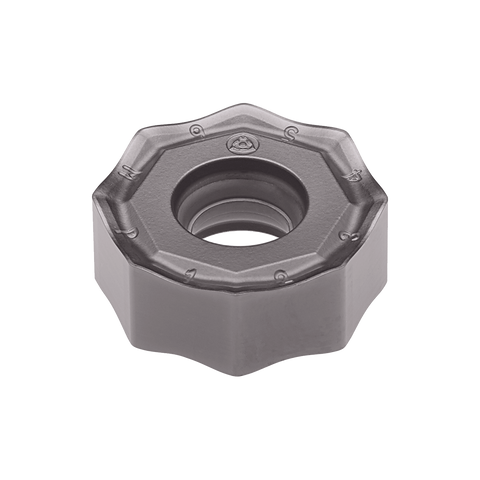

Palbit Indexable Milling Insert - for Face Milling - ONHX 050505 ANSN-MP PHP920
| ISO Code | ONHX 050505 ANSN-MP PHP920 |
| Insert Size and Shape | ON0505 |
| Product Line | PLUS 90845 |
| Grade | PHP920 |
| Hand | Neutral |
| Cutting Edge Count (CEDC) | 16 |
Learn more about Klarna
The Palbit ONHX indexable milling insert is built for precision face milling, delivering excellent surface finish and consistent performance with every cut. Crafted from high-quality carbide and featuring an advanced cutting geometry, this insert promotes efficient chip evacuation and long tool life across a variety of materials.
- Optimized face-milling geometry for finish and consistency: Designed to produce smooth surfaces and maintain tight tolerances, reducing finishing passes and boosting productivity.
- Efficient chip evacuation and thermal control: Edge design and cutting geometry promote steady chip flow, helping prevent built-up edge and keeping cutting temperatures in check for reliable cuts.
- PHP920-grade carbide for long tool life: Premium substrate with the PHP920 grade offers wear resistance across materials, extending tool life and reducing downtime.
This insert helps streamline your milling workflow by delivering stable cuts, reliable results, and extended tool life. With predictable performance across common materials, it supports faster setup, fewer reworks, and improved overall milling efficiency for professionals and serious enthusiasts alike.
| ISO Code | ONHX 050505 ANSN-MP PHP920 |
| Insert Size and Shape | ON0505 |
| Product Line | PLUS 90845 |
| Grade | PHP920 |
| Hand | Neutral |
| Cutting Edge Count (CEDC) | 16 |
| Operation Type (CTPT) | Face Milling |
| Tolerance Class Insert (TCINS) | H |
| Insert Shape Code (SC) | O |
| Inscribed Circle Diameter (IC) | 12.7 |
| Insert Thickness (S) | 5.2 |
| Corner Radius (RE) | 0.5 |
| Cutting Edge Effective Length (LE) | 5.3 |
| Fixing Hole Diameter (D1) | 5.33 |
| Chip Breaker (CBMD) | MP |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Palbit ONHX Inserts
View full collection →You are viewing PAL-1112304T1. Click any other SKU to view its full details.
| Product SKU | ISO Code | Insert Size & Shape | Product Line | Insert Shape Code (SC) | Insert Thickness (S) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-1112053G4 | ONHX 0606 ANEN-W PH7920 | ON0606 | PLUS 91245 | O | 5.96 | £22.22 | 5 days | |
| PAL-1112053L5 | ONHX 0606 ANEN-W PH5705 | ON0606 | PLUS 91245 | O | 5.96 | £22.22 | 5 days | |
| PAL-1111956L5 | ONHX 0606 ANEN-MK PH5705 | ON0606 | PLUS 91245 | O | 6 | £19.19 | 5 days | |
| PAL-1111955G6 | ONHX 0606 ANEN-MP PH7740 | ON0606 | PLUS 91245 | O | 6.2 | £19.19 | 5 days | |
| PAL-1111954G6 | ONHX 0606 ANEN-LP PH7740 | ON0606 | PLUS 91245 | O | 6.2 | £19.19 | 5 days | |
| PAL-1111956L9 | ONHX 0606 ANEN-MK PH5740 | ON0606 | PLUS 91245 | O | 6 | £19.19 | 5 days | |
| PAL-1111955T1 | ONHX 0606 ANEN-MP PHP920 | ON0606 | PLUS 91245 | O | 6.2 | £20.51 | 5 days | |
| PAL-1111954P4 | ONHX 0606 ANEN-LP PHP930 | ON0606 | PLUS 91245 | O | 6.2 | £20.51 | 5 days | |
| PAL-1111954T1 | ONHX 0606 ANEN-LP PHP920 | ON0606 | PLUS 91245 | O | 6.2 | £20.51 | 5 days | |
| PAL-1112696X9 | ONHX 0606 ANEN-LS PHH930 | ON0606 | PLUS 91245 | O | 6.25 | £20.51 | 5 days | |
| PAL-1112307T1 | ONHX 050500 ANER-W PHP920 | ON0505 | PLUS 90845 | O | 5.2 | £16.91 | 5 days | |
| PAL-1112302T1 | ONHX 050505 ANEN-LP PHP920 | ON0505 | PLUS 90845 | O | 5.2 | £15.53 | 5 days | |
| PAL-1112302P4 | ONHX 050505 ANEN-LP PHP930 | ON0505 | PLUS 90845 | O | 5.2 | £15.53 | 5 days | |
| PAL-1112302Y6 | ONHX 050505 ANEN-LP PHP740 | ON0505 | PLUS 90845 | O | 5.2 | £15.53 | 5 days | |
| PAL-1112304T1 Viewing | ONHX 050505 ANSN-MP PHP920 | ON0505 | PLUS 90845 | O | 5.2 | £15.53 | 5 days | |
| PAL-1112304P4 | ONHX 050505 ANSN-MP PHP930 | ON0505 | PLUS 90845 | O | 5.2 | £15.53 | 5 days | |
| PAL-1112302G6 | ONHX 050505 ANEN-LP PH7740 | ON0505 | PLUS 90845 | O | 5.2 | £14.23 | 5 days | |
| PAL-1112307L5 | ONHX 050500 ANER-W PH5705 | ON0505 | PLUS 90845 | O | 5.2 | £15.74 | 5 days |
