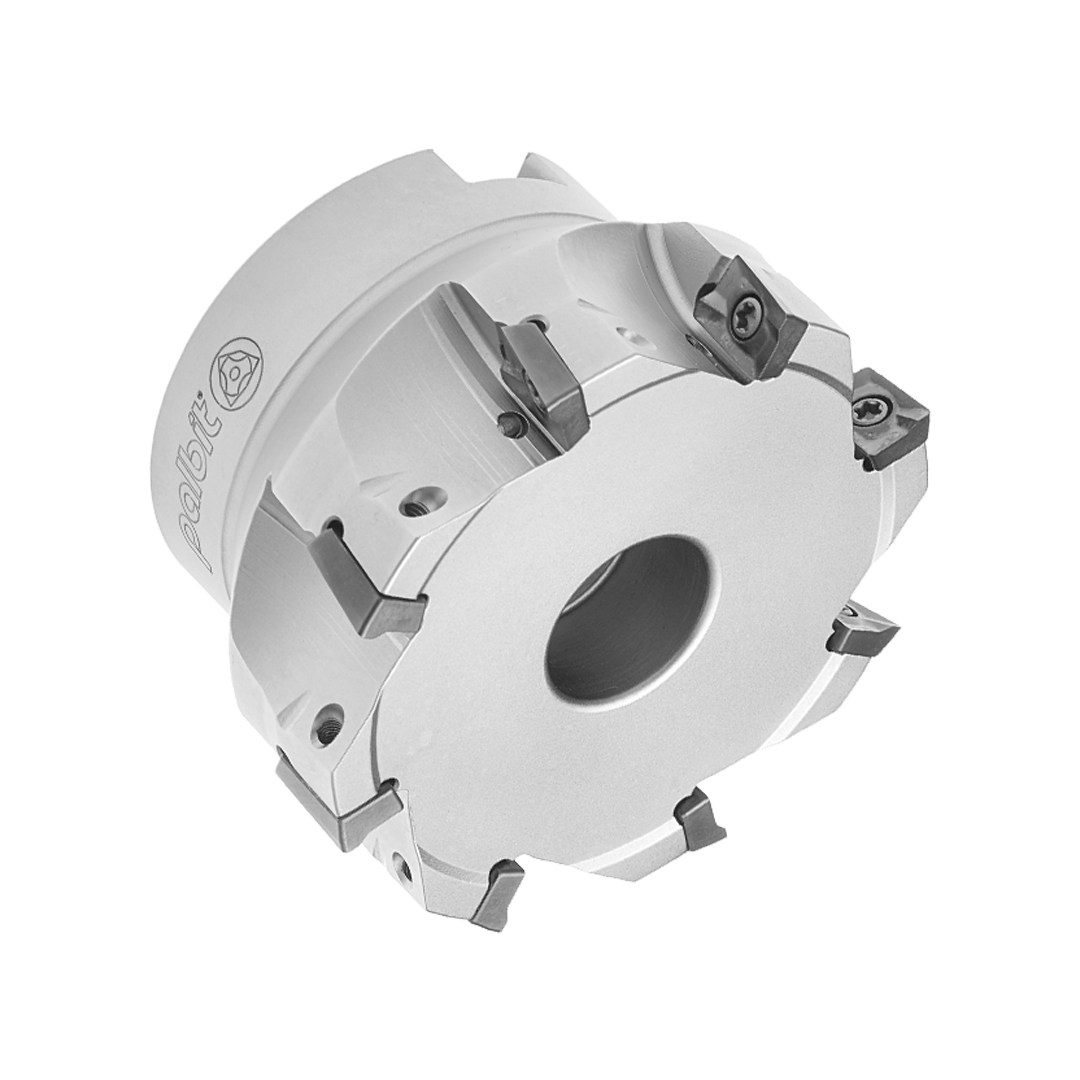

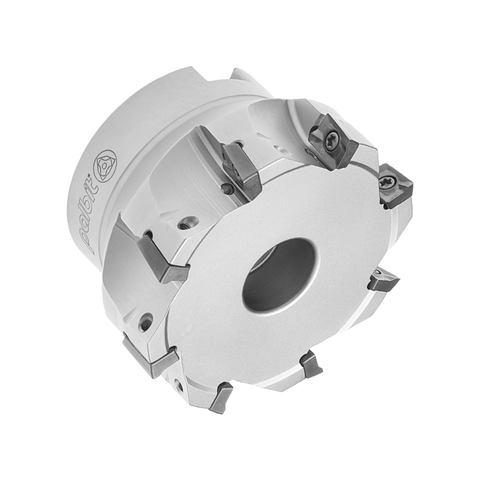

Palbit Arbor Mounting Holder - For AP1003 Inserts - 40mm Cutter Diameter - 181010200
| Insert Size & Shape | AP1003 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 6 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 39 |
Learn more about Klarna
Palbit Arbor Mounting Holder for AP1003 inserts delivers secure clamping and stable machining performance for precision turning and grooving tasks. Designed for engineers and machinists who prioritize accuracy and efficiency in CNC tooling setups.
- Compatibility: Specifically designed to fit AP1003 inserts for reliable, drop-in integration with existing tooling systems.
- 40 mm cutter diameter: Optimized to accommodate a 40 mm cutter diameter to align with standard AP1003 geometry.
- Secure clamping: Robust clamping mechanism keeps inserts firmly in place during cutting, reducing movement and runout.
- Rigidity and durability: Engineered for high rigidity and long-lasting durability in demanding CNC operations.
- Applications: Ideal for precision turning and grooving applications that require tight tolerances and clean finishes.
- Part number: 181010200
With secure clamping and a rigid, durable design, this holder helps maintain insert position and deliver consistent results across challenging turning and grooving operations. Expect enhanced tool life and improved efficiency in your CNC tooling setups.
| Insert Size & Shape | AP1003 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 6 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 39 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 40 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 40 |
| Axial Rake Angel (GAMP) | 9 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 17090 - Arbor Mounting
View full collection →You are viewing PAL-181010200. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181014300 | AP1003 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £249.54 | 5 days | |
| PAL-181010300 | AP1003 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £229.03 | In Stock | |
| PAL-181010200 Viewing | AP1003 | Shouldering Cutters | Arbor Mounting | 40 | 40 | £207.99 | 5 days |
