Palbit Arbor Mounting Holder - For RD12T3 Inserts - 68mm Cutter Diameter - 181016600

Palbit Arbor Mounting Holder - For RD12T3 Inserts - 68mm Cutter Diameter - 181016600

SKU:PAL-181016600
Palbit Arbor Mounting Holder for RD12T3 inserts is a precision-oriented tool holder designed to elevate turning and grooving performance. Built for CNC environments, it delivers stable support, s... Read more ↓
Specification
Insert Size & ShapeRD12T3
Depth of Cut Maximum (APMX)6
Cutting Item Count (CICT)7
Connection Diameter (DCONMS)27
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)60
View all specifications ↓
£260.78
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

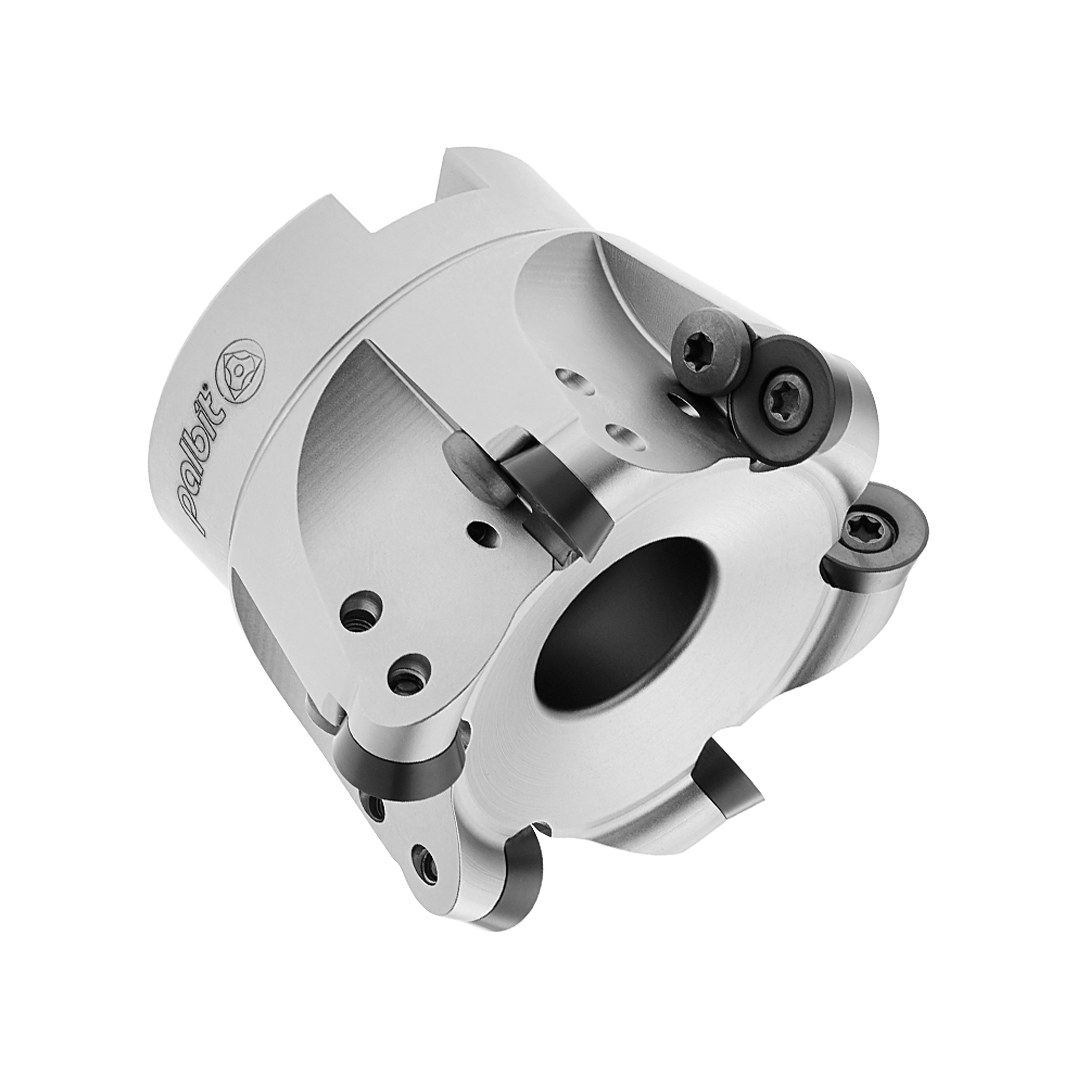

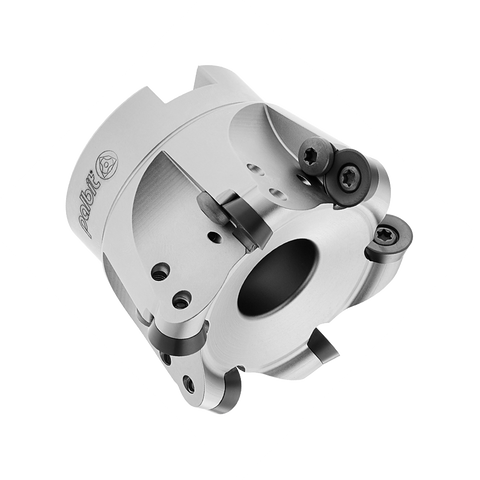

Palbit Arbor Mounting Holder for RD12T3 inserts is a precision-oriented tool holder designed to elevate turning and grooving performance. Built for CNC environments, it delivers stable support, secure clamping, and reliable, repeatable cuts.

  • Compatible insert type: RD12T3 inserts for precise alignment and consistent engagement.
  • Cutter diameter: 68 mm for standard RD12T3 applications.
  • Secure clamping: Integrated clamping system delivers exceptional stability under heavy cutting loads.
  • Precision engineering: Engineered to achieve accurate cuts and a consistent surface finish.
  • Production-ready durability: Designed for long tool life in demanding CNC environments.
  • Product identification: Palbit Arbor Mounting Holder (ID 181016600).

This holder supports high-precision turning and grooving with repeatable results, helping technicians maintain tight tolerances, reduce setup time, and achieve superior surface quality in production runs.

Insert Size & Shape RD12T3
Depth of Cut Maximum (APMX) 6
Cutting Item Count (CICT) 7
Connection Diameter (DCONMS) 27
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 60
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 68
Torque (TQ) 3
Maximum Cutting Diameter (DCX) 80
Functional Length (LF) 52
Axial Rake Angel (GAMP) 7
Rdial Rake Angle (GAMF) 0
