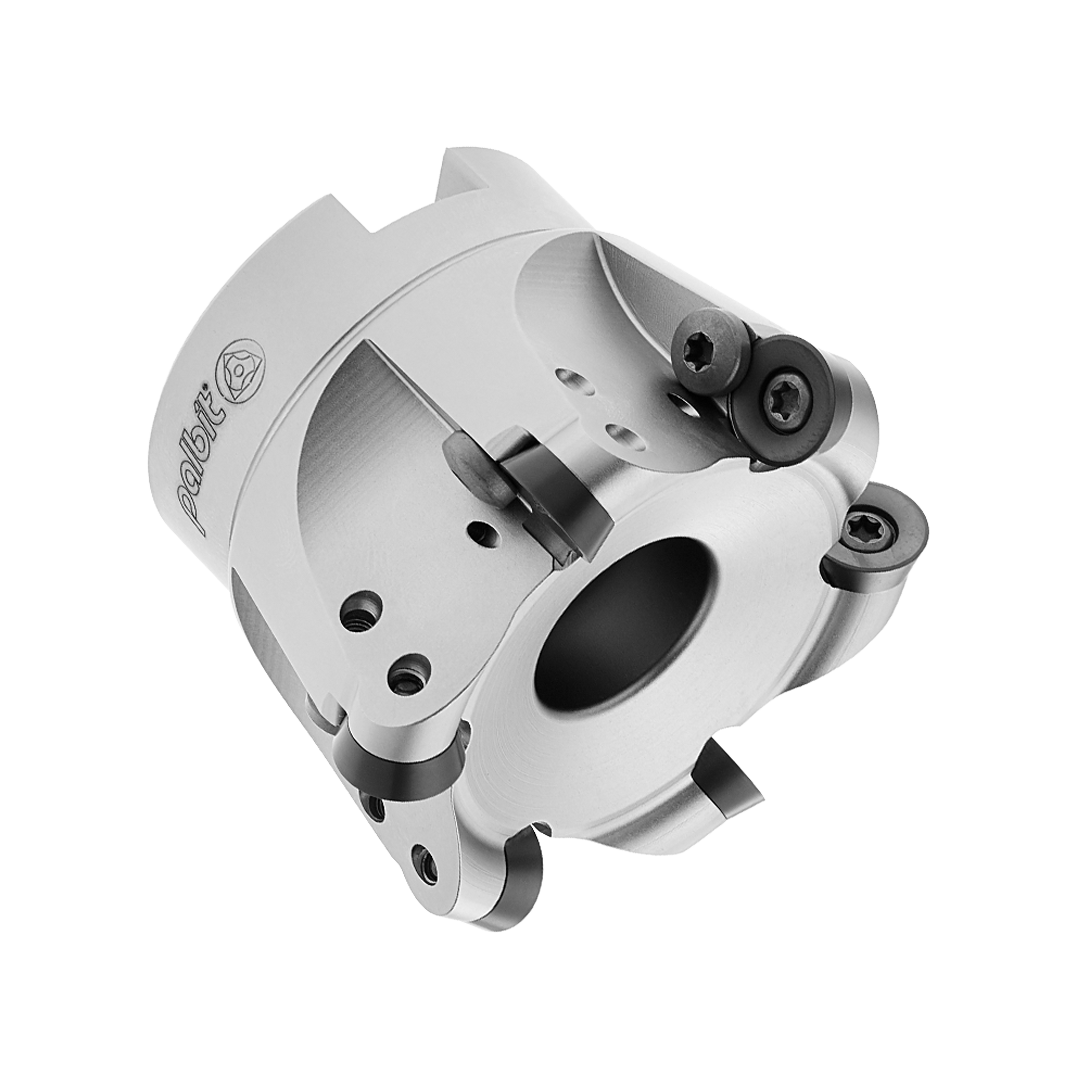

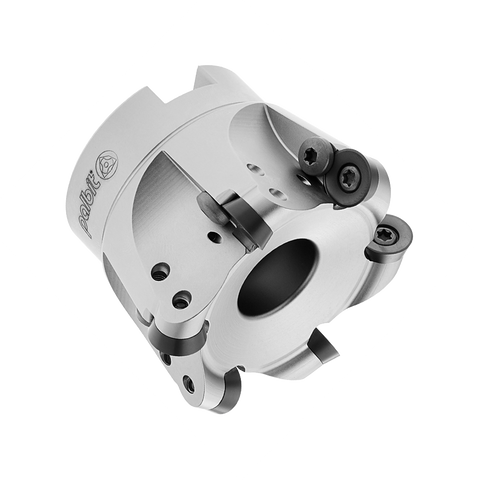

Palbit Arbor Mounting Holder - For RD12T3 Inserts - 40mm Cutter Diameter - 181010800
| Insert Size & Shape | RD12T3 |
| Depth of Cut Maximum (APMX) | 6 |
| Cutting Item Count (CICT) | 5 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 40 |
Learn more about Klarna
Engineered for high-precision turning and grooving, Palbit Arbor Mounting Holders for RD12T3 inserts deliver exceptional stability and secure clamping. Designed for demanding CNC environments, they promote accurate cuts and consistent performance.
- RD12T3 Compatibility: Specifically designed to fit RD12T3 inserts for reliable, repeatable performance.
- 40mm Cutter Diameter: Optimized size to handle precise turning and grooving tasks with control.
- High-Precision Stability: Engineered to minimize deflection and maintain rigidity during cuts.
- Secure Clamping: Robust clamping mechanism keeps inserts firmly in place for consistent results.
- Production-Ready Reliability: Trusted by engineers and machinists for long tool life and superior surface finish in production environments.
By delivering exceptional stability and secure clamping, this holder helps maintain tight tolerances, supports reliable tool life, and achieves a superior surface finish in everyday CNC production.
| Insert Size & Shape | RD12T3 |
| Depth of Cut Maximum (APMX) | 6 |
| Cutting Item Count (CICT) | 5 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 40 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 40 |
| Torque (TQ) | 3 |
| Maximum Cutting Diameter (DCX) | 52 |
| Functional Length (LF) | 50 |
| Axial Rake Angel (GAMP) | 7 |
| Rdial Rake Angle (GAMF) | -1 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TOROMILL 25190 - Arbor Mounting
View full collection →You are viewing PAL-181010800. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181016600 | RD12T3 | Profile Cutters | Arbor Mounting | 68 | 52 | £260.78 | 5 days | |
| PAL-181016500 | RD12T3 | Profile Cutters | Arbor Mounting | 68 | 50 | £260.78 | 5 days | |
| PAL-181016100 | RD12T3 | Profile Cutters | Arbor Mounting | 54 | 50 | £209.11 | 5 days | |
| PAL-181010900 | RD12T3 | Profile Cutters | Arbor Mounting | 54 | 50 | £209.11 | 5 days | |
| PAL-181010800 Viewing | RD12T3 | Profile Cutters | Arbor Mounting | 40 | 50 | £178.66 | 5 days | |
| PAL-181010700 | RD12T3 | Profile Cutters | Arbor Mounting | 40 | 50 | £178.66 | 5 days | |
| PAL-181051900 | RD12T3 | Profile Cutters | Arbor Mounting | 38 | 50 | £178.66 | 5 days |
