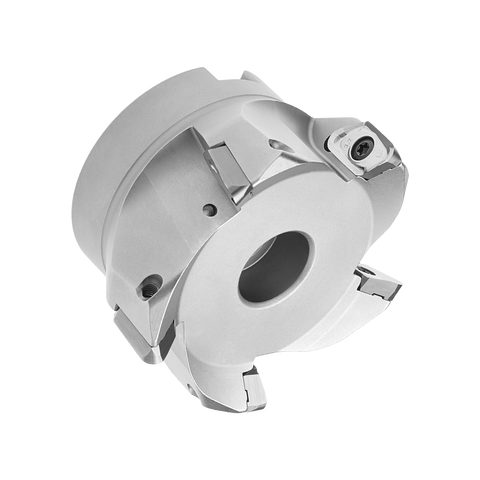

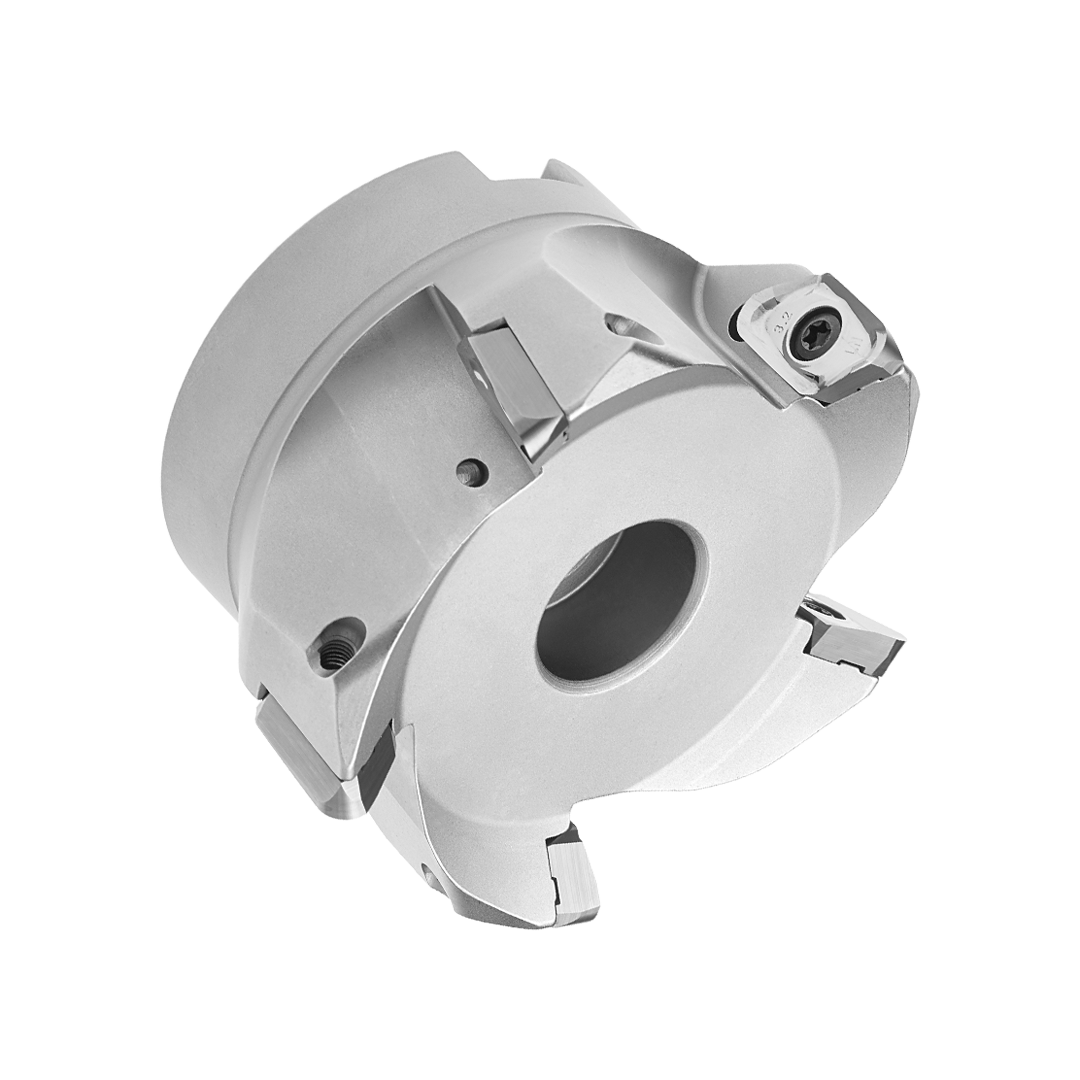

Palbit Arbor Mounting Holder - For XD15M5 Inserts - 50mm Cutter Diameter - 181083400

Palbit Arbor Mounting Holder - For XD15M5 Inserts - 50mm Cutter Diameter - 181083400

SKU:PAL-181083400
The Palbit Arbor Mounting Holder for XD15M5 inserts delivers rigid, reliable support for internal threading tasks. With a 50 mm cutter diameter, it’s designed for CNC machinists who demand consist... Read more ↓
Specification
Insert Size & ShapeXD15M5
Depth of Cut Maximum (APMX)14
Cutting Item Count (CICT)4
Connection Diameter (DCONMS)22
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)42
View all specifications ↓
£318.18
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit Arbor Mounting Holder for XD15M5 inserts delivers rigid, reliable support for internal threading tasks. With a 50 mm cutter diameter, it’s designed for CNC machinists who demand consistent accuracy and durability.

  • Compatibility: Specifically designed for XD15M5 inserts, ensuring secure fit and precise alignment.
  • Cutter Diameter: 50 mm diameter optimized for stable cutting performance and material removal.
  • Arbor Mounting Design: Robust arbor mounting provides rigidity and stability during demanding threading operations.
  • Secure Insert Fitment: Threaded coupling maintains a secure insert in place for repeatable accuracy.
  • Chip Control: Precision geometry supports excellent chip evacuation and minimizes buildup.
  • Durable Construction: Built to withstand the rigors of high-load machining environments for long tool life.
  • Internal Threading Applications: Tailored for internal threading tasks to enhance threading precision.

This holder helps maximize productivity by delivering consistent thread quality, reducing tool changes, and maintaining tight tolerances across extensive production runs. Rely on its sturdy design and secure insert connection to minimize downtime and optimize your CNC threading workflow.

Insert Size & Shape XD15M5
Depth of Cut Maximum (APMX) 14
Cutting Item Count (CICT) 4
Connection Diameter (DCONMS) 22
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 42
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 50
Torque (TQ) 3
Functional Length (LF) 50
Axial Rake Angel (GAMP) 11

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: ALUPRO 76090 - Arbor Mounting

View full collection →

You are viewing PAL-181083400. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181094800 XD15M5Shouldering CuttersArbor Mounting8050£377.79 5 days
PAL-181094700 XD15M5Shouldering CuttersArbor Mounting6350£358.04 5 days
PAL-181094300 XD15M5Shouldering CuttersArbor Mounting8050£377.79 5 days
PAL-181085300 XD15M5Shouldering CuttersArbor Mounting6350£358.04 5 days
PAL-181094600 XD15M5Shouldering CuttersArbor Mounting5050£318.18 5 days
PAL-181083400 ViewingXD15M5Shouldering CuttersArbor Mounting5050£318.18 5 days
PAL-181094500 XD15M5Shouldering CuttersArbor Mounting4050£278.51 5 days
PAL-181094200 XD15M5Shouldering CuttersArbor Mounting4050£278.51 5 days
PAL-181094900 XD15M5Shouldering CuttersArbor Mounting10063£437.76 5 days
PAL-181094400 XD15M5Shouldering CuttersArbor Mounting10063£437.76 5 days
