Palbit Arbor Mounting Holder - For XD15M5 Inserts - 40mm Cutter Diameter - 181094500

Palbit Arbor Mounting Holder - For XD15M5 Inserts - 40mm Cutter Diameter - 181094500

SKU:PAL-181094500
The Palbit Arbor Mounting Holder, model 181094500, is a precision tool holder designed for XD15M5 inserts. Built for internal threading applications with a 40mm cutter diameter, it delivers relia... Read more ↓
Specification
Insert Size & ShapeXD15M5
Depth of Cut Maximum (APMX)14
Cutting Item Count (CICT)3
Connection Diameter (DCONMS)16
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)32
View all specifications ↓
£278.51
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

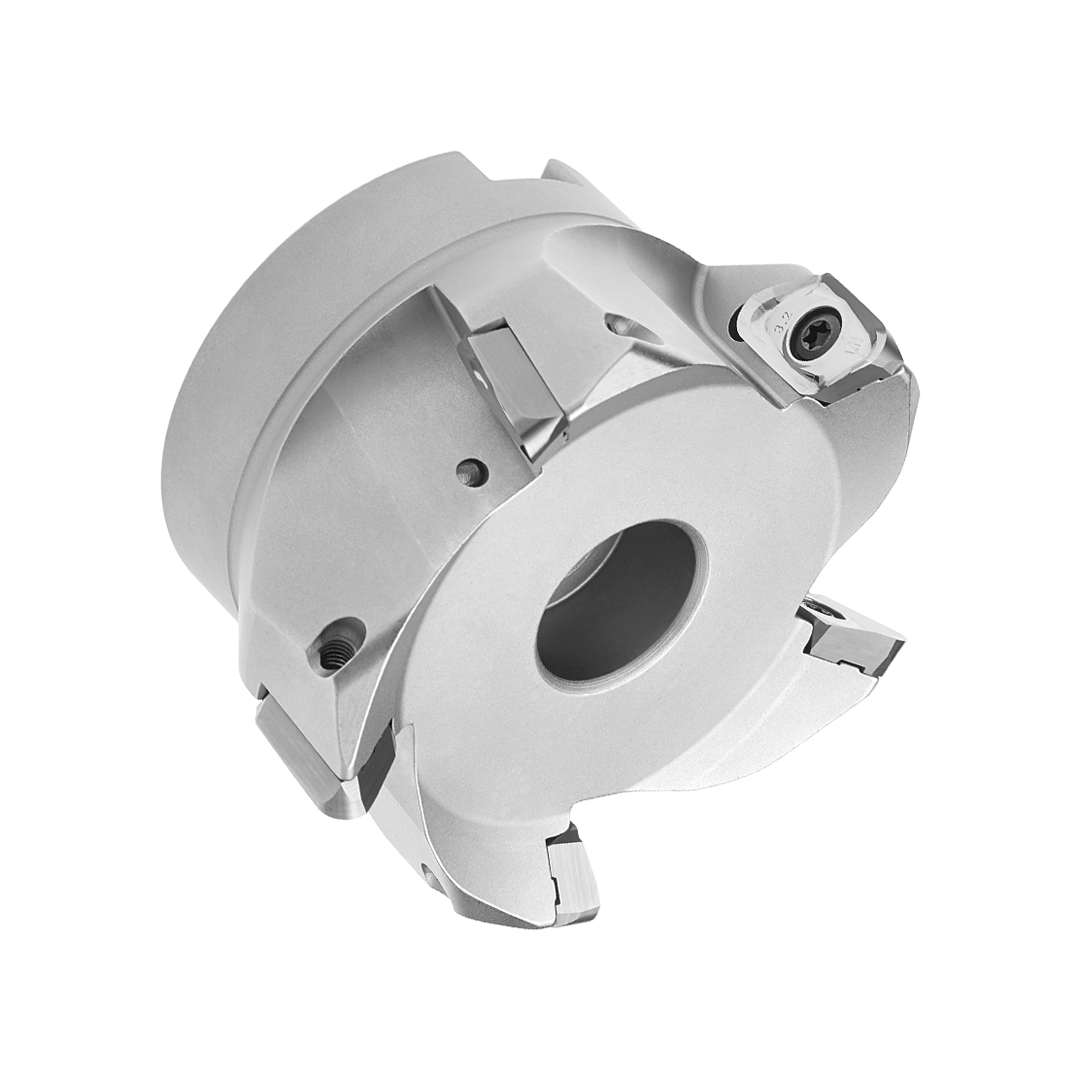

The Palbit Arbor Mounting Holder, model 181094500, is a precision tool holder designed for XD15M5 inserts. Built for internal threading applications with a 40mm cutter diameter, it delivers reliable seating and consistent performance in demanding CNC setups.

  • Compatibility: Specifically designed for XD15M5 inserts, ensuring secure fitment.
  • Diameter: 40 mm cutter diameter for streamlined threading operations.
  • Arbor Mounting: Arbor-style holder for stable, repeatable tool assembly.
  • Threaded Coupling: Palbit threaded coupling design for quick, secure insert engagement.
  • Internal Threading Focus: Optimized for internal threading applications with clean chip control.
  • Durability: Built to withstand demanding machining environments for long-lasting performance.
  • Part Number: 181094500

This holder brings precision to every internal thread by ensuring XD15M5 inserts stay firmly in place, reducing runout and enhancing dimensional accuracy. The combination of secure fitment and efficient chip control helps maintain smooth cutting action, minimizes insert movement, and supports higher productivity in CNC operations. Designed for engineers and machinists who demand dependable tool holders, it contributes to consistent thread quality, fewer tool changes, and longer overall tool life.

Insert Size & Shape XD15M5
Depth of Cut Maximum (APMX) 14
Cutting Item Count (CICT) 3
Connection Diameter (DCONMS) 16
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 32
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 40
Torque (TQ) 3
Functional Length (LF) 50
Axial Rake Angel (GAMP) 11

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

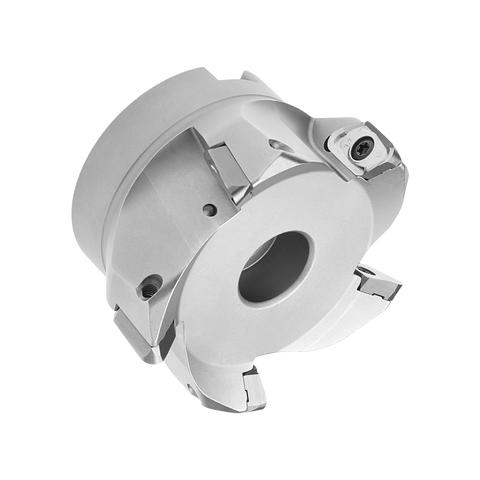

Full Range: ALUPRO 76090 - Arbor Mounting
