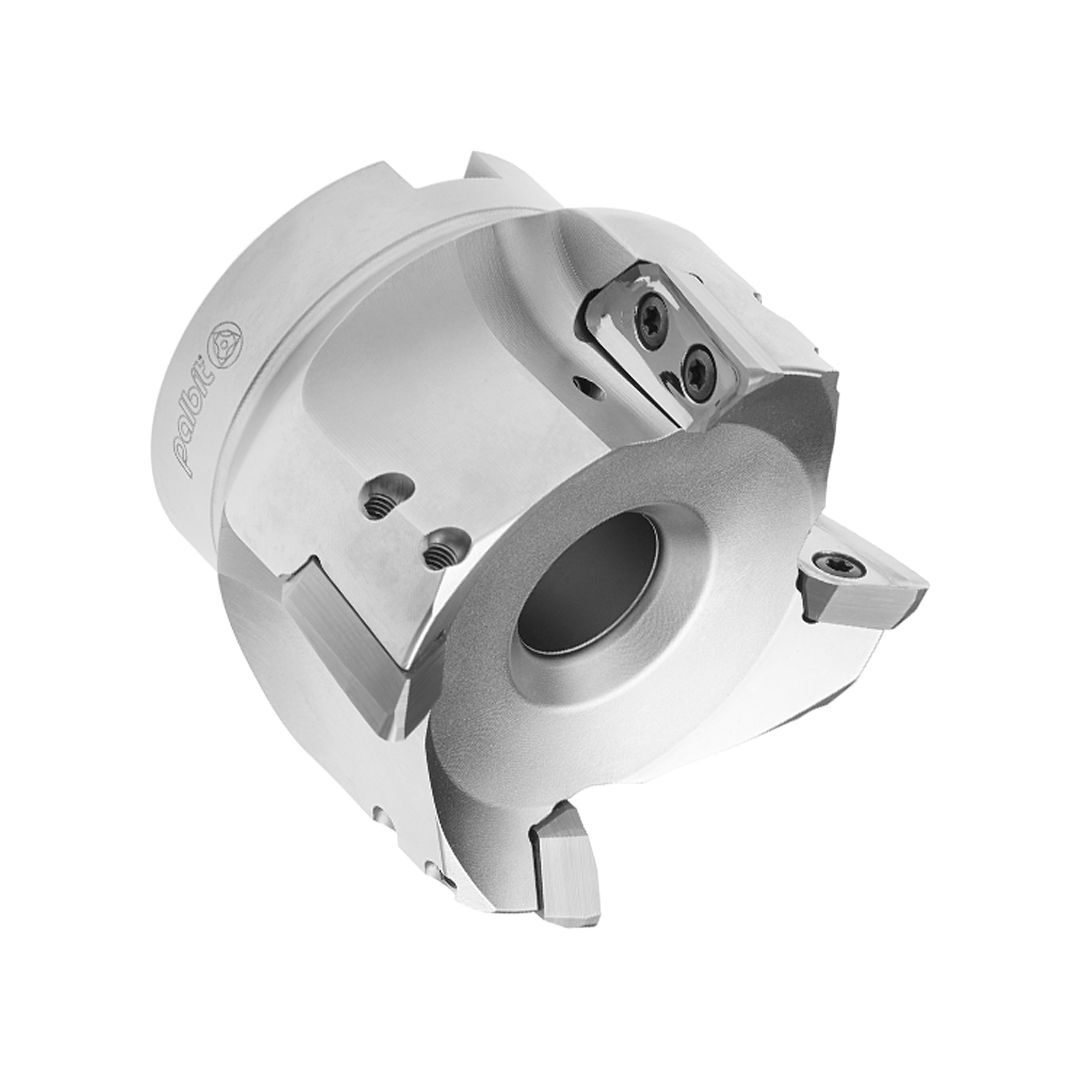

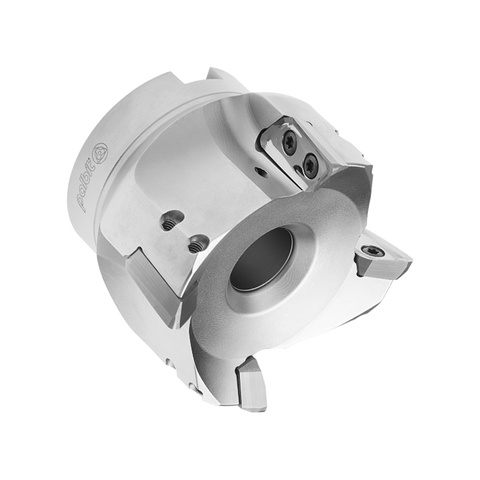

Palbit Arbor Mounting Holder - For XD22M7 Inserts - 100mm Cutter Diameter - 181093200

Palbit Arbor Mounting Holder - For XD22M7 Inserts - 100mm Cutter Diameter - 181093200

SKU:PAL-181093200
Palbit Arbor Mounting Holder is a precision toolholder engineered for external threading with XD22M7 inserts. Designed for a 100 mm cutter diameter, it delivers superior stability, precise alignm... Read more ↓
Specification
Insert Size & ShapeXD22M7
Depth of Cut Maximum (APMX)21.5
Cutting Item Count (CICT)5
Connection Diameter (DCONMS)32
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)70
View all specifications ↓
£457.53
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Arbor Mounting Holder is a precision toolholder engineered for external threading with XD22M7 inserts. Designed for a 100 mm cutter diameter, it delivers superior stability, precise alignment, and reliable insert retention to support demanding CNC threading operations.

  • Compatibility: Optimized for XD22M7 inserts to ensure a secure, reliable fit and consistent performance.
  • Application: Built for external threading tasks, providing stable support across high‑demand machining cycles.
  • Cutter Diameter: 100 mm cutter diameter for broad material suitability and efficient chip evacuation.
  • Mounting Type: Arbor mounting design that integrates cleanly with standard CNC spindles for rigid, repeatable setups.
  • Stability: Robust construction minimizes deflection and vibration, improving surface finish and thread accuracy.
  • Retention:Designed to deliver reliable insert retention, reducing downtime and enhancing tool life in hard-to-cut materials.

Optimise your threading workflows with a holder trusted by CNC engineers for dependable insert retention, stability, and consistent performance. This Palbit solution supports high‑volume production by delivering repeatable results, longer tool life, and fewer insert changes, even in challenging external threading applications.

Insert Size & Shape XD22M7
Depth of Cut Maximum (APMX) 21.5
Cutting Item Count (CICT) 5
Connection Diameter (DCONMS) 32
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 70
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 100
Torque (TQ) 3
Functional Length (LF) 63
Axial Rake Angel (GAMP) 7
