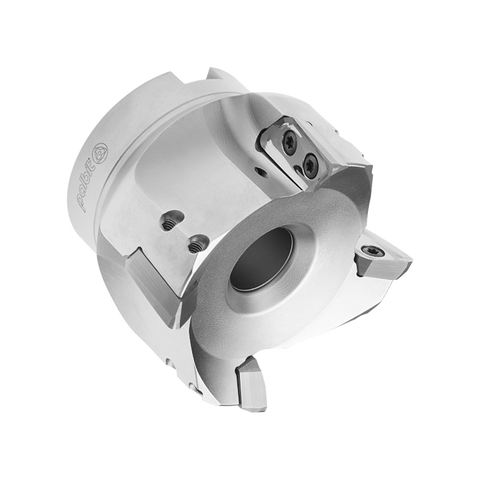

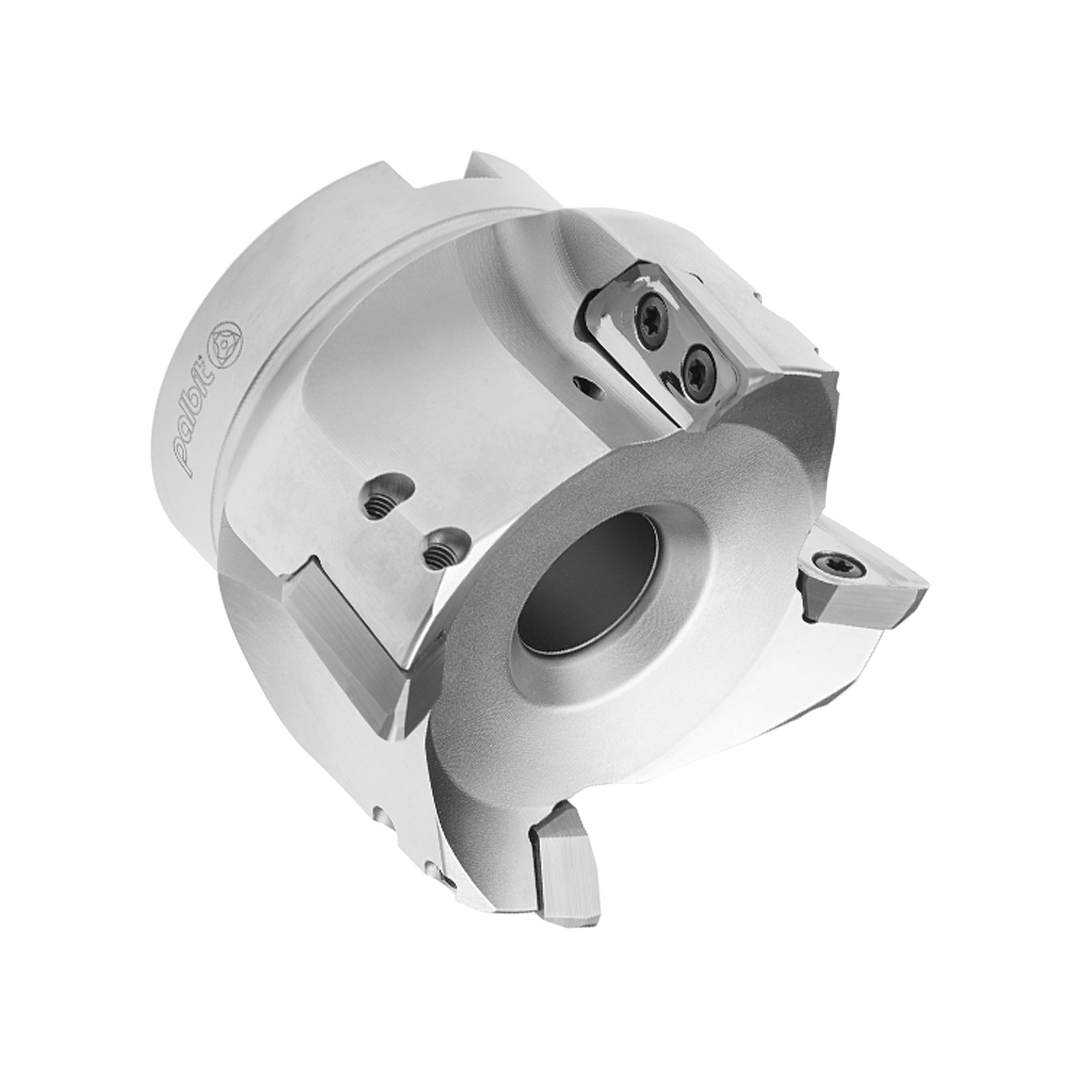

Palbit Arbor Mounting Holder - For XD22M7 Inserts - 125mm Cutter Diameter - 181093300

Palbit Arbor Mounting Holder - For XD22M7 Inserts - 125mm Cutter Diameter - 181093300

SKU:PAL-181093300
Engineered for CNC professionals, the Palbit Arbor Mounting Holder is a precision mounting solution designed for XD22M7 inserts. Its 125mm cutter diameter and arbor-mount design deliver stable, re... Read more ↓
Specification
Insert Size & ShapeXD22M7
Depth of Cut Maximum (APMX)21.5
Cutting Item Count (CICT)6
Connection Diameter (DCONMS)40
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)100
View all specifications ↓
£517.12
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Engineered for CNC professionals, the Palbit Arbor Mounting Holder is a precision mounting solution designed for XD22M7 inserts. Its 125mm cutter diameter and arbor-mount design deliver stable, repeatable external threading performance in demanding setups.

  • XD22M7 Insert Compatibility: Specifically engineered to fit XD22M7 inserts for reliable retention in external threading tasks.
  • 125mm Cutter Diameter: Designed around a 125 mm cutter diameter to align with standard external threading tooling setups.
  • Arbor Mounting Design: Robust arbor mounting configuration provides precise alignment and secure insert retention.
  • Robust and Versatile Construction: Built for durability and versatility in high-demand machining environments.
  • Reliable Retention and Tool Life: Ensures dependable insert retention, contributing to extended tool life and consistent performance.

By delivering superior stability and precision, this holder minimizes slippage and runout during external threading, enabling repeatable accuracy across heavy-use operations. Trusted by CNC engineers and machinists, it supports reliable insert retention and consistent outcomes, helping you maximize uptime and tool life in demanding production schedules.

Insert Size & Shape XD22M7
Depth of Cut Maximum (APMX) 21.5
Cutting Item Count (CICT) 6
Connection Diameter (DCONMS) 40
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 100
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 125
Torque (TQ) 3
Functional Length (LF) 63
Axial Rake Angel (GAMP) 7

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: ALUPRO 77090 - Arbor Mounting

View full collection →

You are viewing PAL-181093300. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181093600 XD22M7Shouldering CuttersArbor Mounting8063£397.54 5 days
PAL-181071600 XD22M7Shouldering CuttersArbor Mounting8063£397.54 5 days
PAL-181093500 XD22M7Shouldering CuttersArbor Mounting6350£358.04 5 days
PAL-181093100 XD22M7Shouldering CuttersArbor Mounting6350£358.04 5 days
PAL-181093400 XD22M7Shouldering CuttersArbor Mounting5050£318.18 5 days
PAL-181093000 XD22M7Shouldering CuttersArbor Mounting5050£318.18 5 days
PAL-181093800 XD22M7Shouldering CuttersArbor Mounting12563£517.12 5 days
PAL-181093300 ViewingXD22M7Shouldering CuttersArbor Mounting12563£517.12 5 days
PAL-181093200 XD22M7Shouldering CuttersArbor Mounting10063£457.53 5 days
PAL-181093700 XD22M7Shouldering CuttersArbor Mounting10063£457.53 5 days
