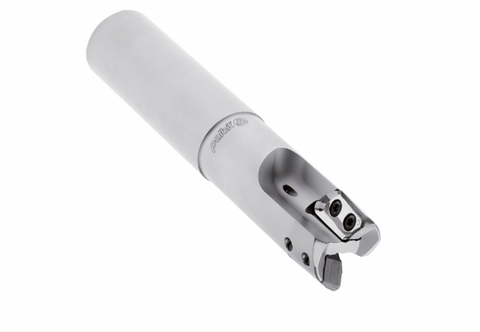

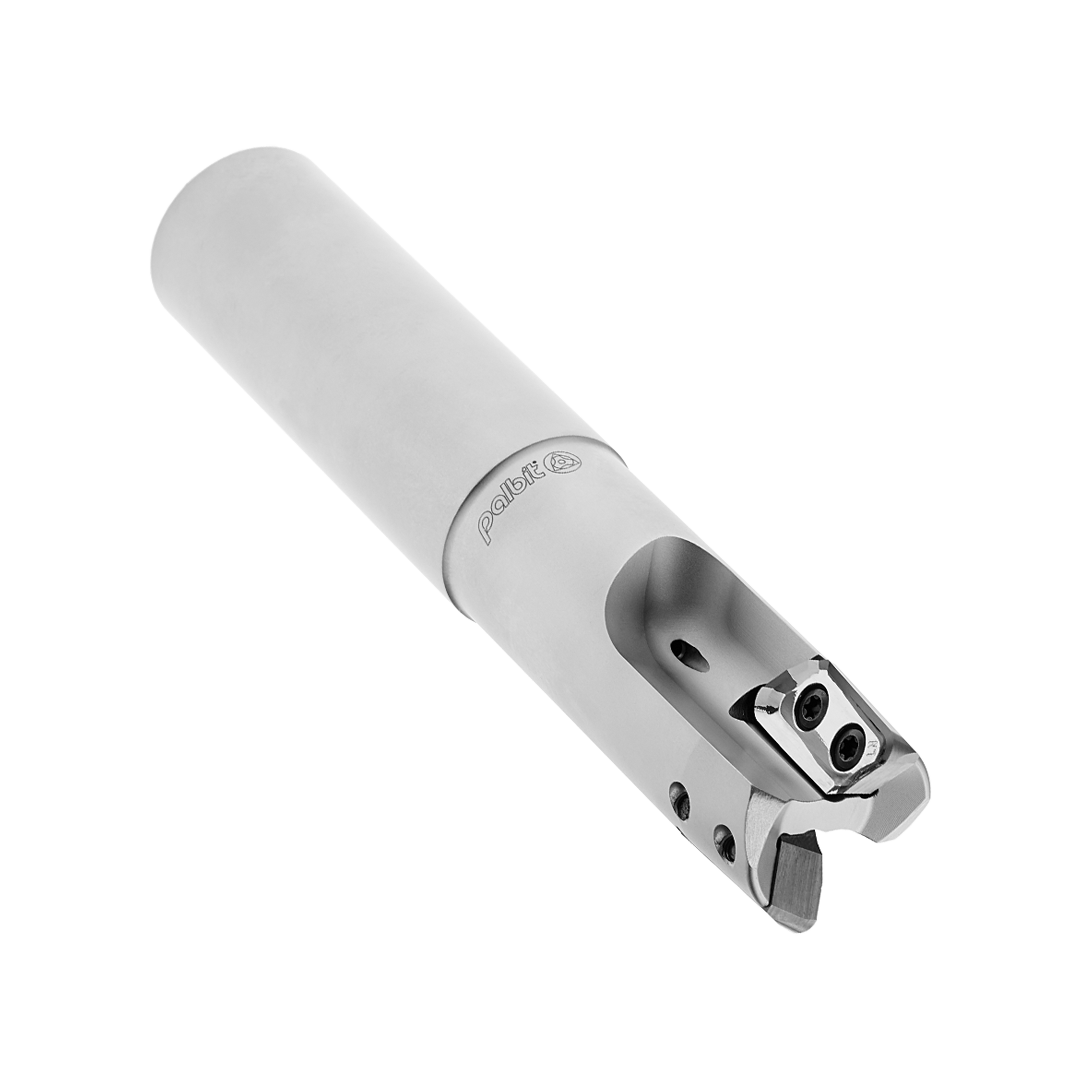

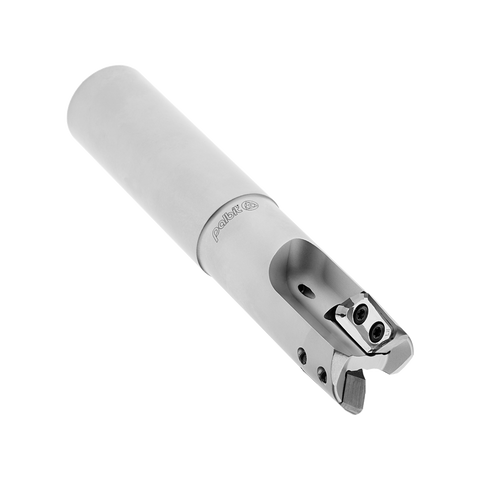

Palbit Cylindrical Shank Holder - For XD22M7 Inserts - 40mm Cutter Diameter - 181093900
| Insert Size & Shape | XD22M7 |
| Depth of Cut Maximum (APMX) | 21.5 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 40 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Contact Surface Machine Side (DCSFMS) | 40 |
Learn more about Klarna
Palbit Cylindrical Shank Holder with XD22M7 insert compatibility offers robust stability for external threading in demanding CNC jobs. Built for engineers and machinists who need consistent, reliable performance, this holder emphasizes precision and insert retention in challenging turning operations.
- Compatibility: Specifically designed for XD22M7 inserts, ensuring secure fit and reliable indexing.
- Diameter: 40 mm cutter diameter for precise threading and material removal.
- Shank Type: Cylindrical shank holder engineered for rigidity and minimal runout.
- Construction: Robust and versatile design built to endure high-demand external threading applications.
- Performance: Promotes stable insert retention, extended tool life, and consistent results across jobs.
- Part Number: 181093900.
With this holder, you’ll experience dependable performance in high-speed threading, reduced downtime thanks to secure insert retention, and longer tool life from a robust, rigid design. The cylindrical shank minimizes runout to improve surface finish and threading accuracy, while the focused geometry supports consistent cutting forces across demanding operations in CNC lathes and turning centers.
| Insert Size & Shape | XD22M7 |
| Depth of Cut Maximum (APMX) | 21.5 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 40 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Contact Surface Machine Side (DCSFMS) | 40 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 40 |
| Torque (TQ) | 3 |
| Functional Length (LF) | 70 |
| Usable Length (LU) | 80 |
| Axial Rake Angel (GAMP) | 6 |
| Rdial Rake Angle (GAMF) | -10 |
