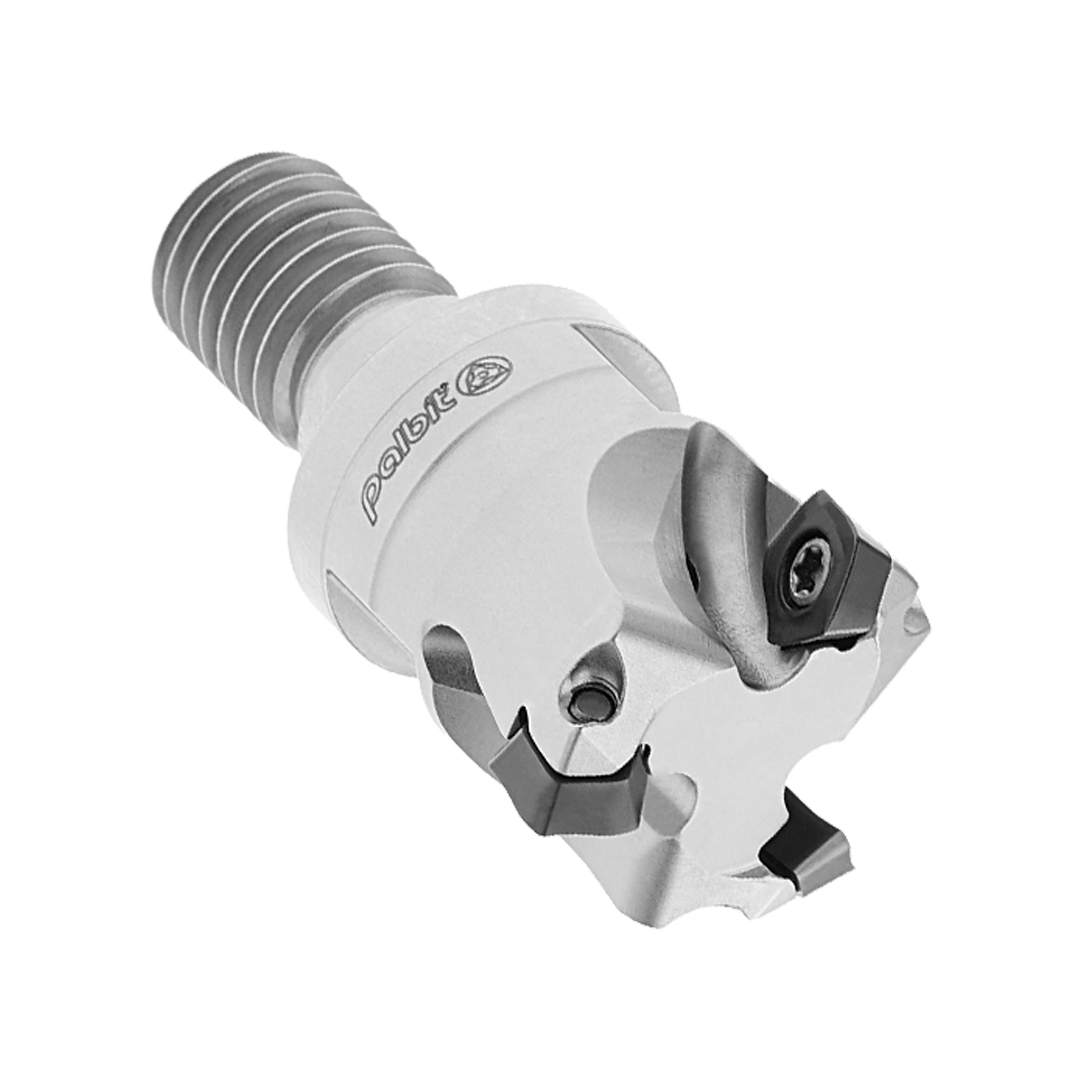

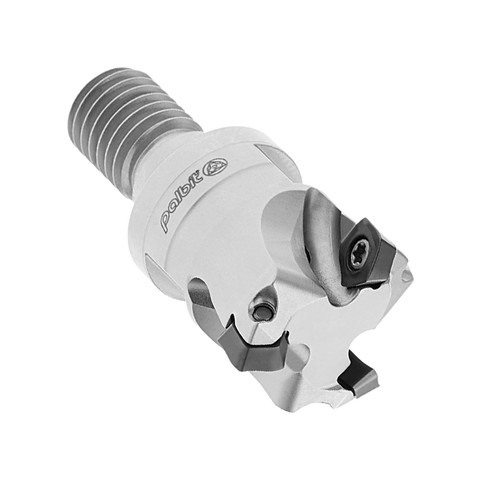

Palbit Threaded Coupling Holder - For PO0403 Inserts - 16mm Cutter Diameter - 181113500
| Insert Size & Shape | PO0403 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 2 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 13 |
| Tool Cutting Edge Angle (KAPR) | 20 |
Learn more about Klarna
Palbit Threaded Coupling Holder for PO0403 inserts is a compact, high-rigidity holder designed for micro internal threading. It secures PO0403 inserts with exceptional rigidity in tight tooling envelopes, delivering precise thread cutting and extended tool life.
- Part number: 181113500
- Compatibility: Specifically designed to hold PO0403 inserts for micro threading applications
- Diameter: 16 mm cutter diameter, ideal for small-diameter thread work
- Threaded coupling design: Secure insert retention with a robust interface that minimizes movement during cutting
- Rigidity: Built for minimal deflection, supporting stable, repeatable thread generation
- Compact footprint: Optimized for tight tooling setups without sacrificing reach or accessibility
- Surface finish assistance: Reduces vibration and chatter to improve thread surface quality
Designed for CNC engineers and machinists tackling fine-detail threading tasks, this holder enables consistent, tight-tolerance threads with a superior surface finish. The secure coupling minimizes insert shift and downtime, while the rugged construction withstands demanding production environments, delivering reliable performance across multiple cycles.
| Insert Size & Shape | PO0403 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 2 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 13 |
| Tool Cutting Edge Angle (KAPR) | 20 |
| Cutting Diameter (DC) | 16 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 25 |
| Axial Rake Angel (GAMP) | -14 |
| Rdial Rake Angle (GAMF) | -5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PENTA HIFEED 06320 - Threaded Coupling
View full collection →You are viewing PAL-181113500. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181130900 | PO0403 | HI Feed | Threaded Coupling | 42 | 35 | £212.25 | 5 days | |
| PAL-181129200 | PO0403 | HI Feed | Threaded Coupling | 35 | 35 | £206.88 | 5 days | |
| PAL-181129100 | PO0403 | HI Feed | Threaded Coupling | 32 | 35 | £199.15 | 5 days | |
| PAL-181113600 | PO0403 | HI Feed | Threaded Coupling | 20 | 25 | £115.72 | 5 days | |
| PAL-181113700 | PO0403 | HI Feed | Threaded Coupling | 25 | 28 | £135.46 | 5 days | |
| PAL-181113500 Viewing | PO0403 | HI Feed | Threaded Coupling | 16 | 25 | £107.60 | 5 days |
