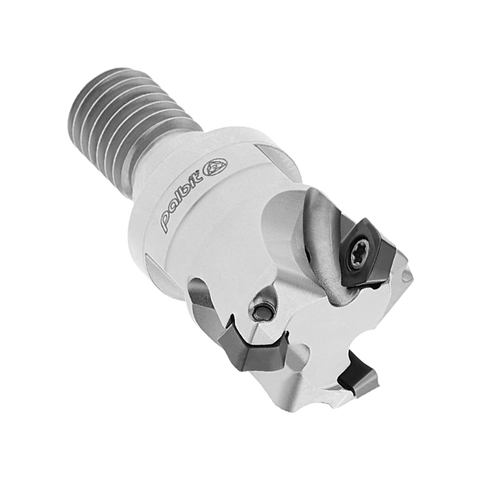

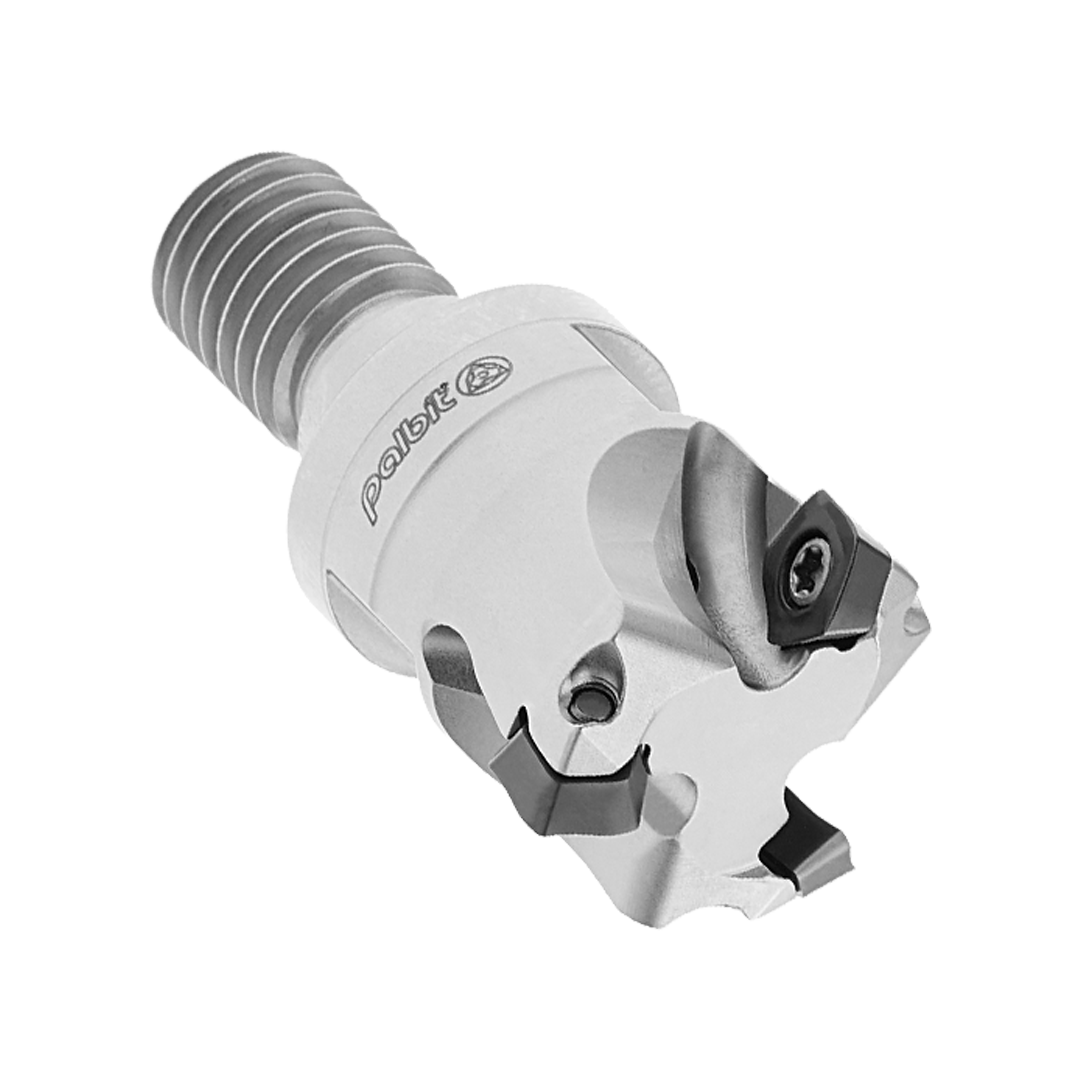

Palbit Threaded Coupling Holder - For PO0403 Inserts - 32mm Cutter Diameter - 181129100

Palbit Threaded Coupling Holder - For PO0403 Inserts - 32mm Cutter Diameter - 181129100

SKU:PAL-181129100
The Palbit Threaded Coupling Holder is a compact, rigid solution for micro internal threading designed for PO0403 inserts. Built for CNC engineers and machinists tackling fine-detail threading wit... Read more ↓
Specification
Insert Size & ShapePO0403
Depth of Cut Maximum (APMX)1
Cutting Item Count (CICT)5
Adaptive Interface Machine DirectionThreaded Coupling
Contact Surface Machine Side (DCSFMS)29
Tool Cutting Edge Angle (KAPR)20
View all specifications ↓
£199.15
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit Threaded Coupling Holder is a compact, rigid solution for micro internal threading designed for PO0403 inserts. Built for CNC engineers and machinists tackling fine-detail threading with tight tolerances and superior surface finish, it delivers exceptional rigidity and secure insert retention in tight tooling setups.

  • 32 mm Cutter Diameter: Provides a stable cutting path for small-diameter threading operations.
  • PO0403 Insert Compatibility: Specifically designed to hold PO0403 inserts for precise alignment.
  • Threaded Coupling Design: Ensures secure insert retention and reliable engagement in tight spaces.
  • Rigid Construction: Delivers exceptional rigidity in compact tooling setups, reducing deflection during cuts.
  • Vibration Reduction: Minimizes chatter and vibration during micro threading, improving surface finish.
  • Enhanced Surface Finish: Supports superior surface finish on fine-detail threads.
  • Extended Tool Life: Stable retention and rigidity contribute to longer tool life in demanding processes.

Designed to deliver precise internal thread cutting with tight tolerances, this holder helps reduce vibration, extend tool life, and achieve consistent, high-quality finishes on fine-detail threading tasks. Its compact form keeps your tooling footprint efficient while delivering dependable, repeatable performance for CNC threading work.

Insert Size & Shape PO0403
Depth of Cut Maximum (APMX) 1
Cutting Item Count (CICT) 5
Adaptive Interface Machine Direction Threaded Coupling
Contact Surface Machine Side (DCSFMS) 29
Tool Cutting Edge Angle (KAPR) 20
Cutting Diameter (DC) 32
Torque (TQ) 1.2
Functional Length (LF) 35
Axial Rake Angel (GAMP) -14
Rdial Rake Angle (GAMF) -7
