Palbit Weldon Shank Holder - For XN06T3 Inserts - 32mm Cutter Diameter - 181152100
| Insert Size & Shape | XN06T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 5 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 20 |
Learn more about Klarna

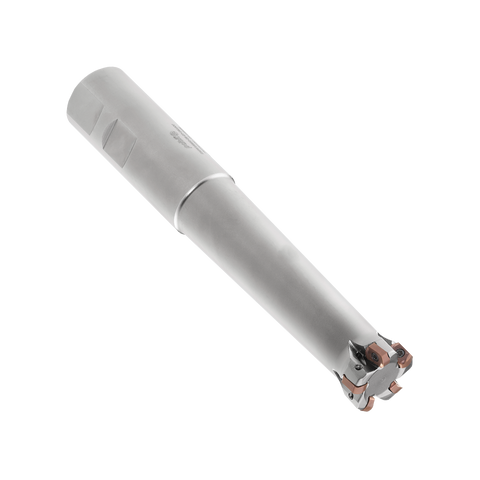

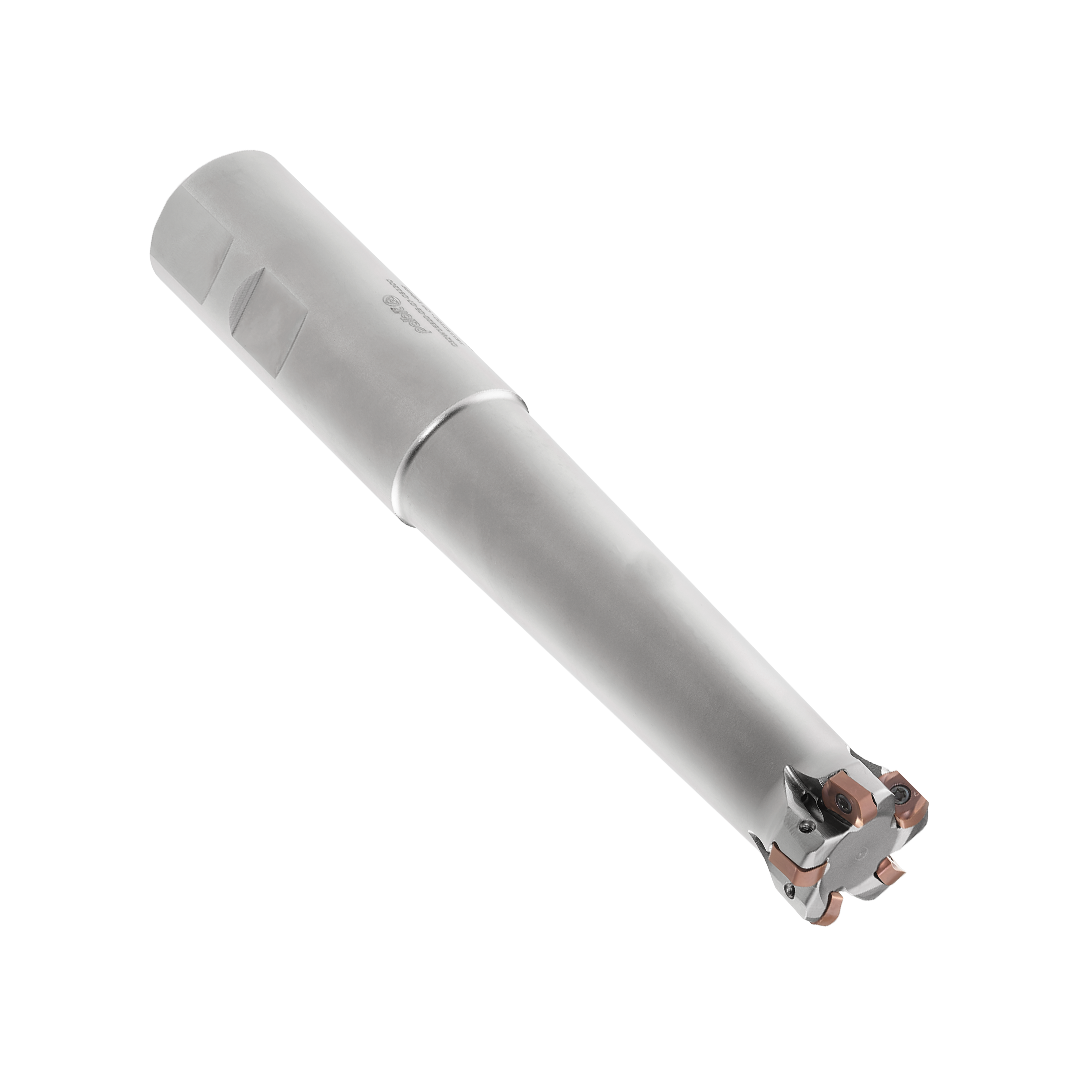

The Palbit Weldon Shank Holder is a precision tooling solution designed for micro grooving and parting in CNC applications, specifically optimized for XN06T3 inserts. It delivers rigid, secure insert retention to ensure accurate cuts and consistent surface quality in tight-tolerance work.
- Compatibility: Designed for XN06T3 inserts
- Diameter: 32 mm cutter diameter
- Shank Type: Weldon shank
- Rigidity and Retention: Excellent rigidity with secure insert retention
- Cutting Accuracy: Delivers precise, stable cutting performance
- Chip Evacuation: Efficient chip management to maintain cut quality
- Tool Life: Supports long tool life in demanding micro-machining tasks
- Applications: Ideal for fine-detail CNC machining requiring tight tolerances
- Product Code: 181152100
When paired with XN06T3 inserts, this holder provides reliable performance and consistent surface quality. Its robust clamping and precise alignment help minimize deflection, supporting repeatable results across micro-grooving and parting operations in high-precision manufacturing environments.
| Insert Size & Shape | XN06T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 5 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 20 |
| Cutting Diameter (DC) | 32 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 200 |
| Usable Length (LU) | 120 |
| Axial Rake Angel (GAMP) | -7 |
| Rdial Rake Angle (GAMF) | -10 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TETRAFEED 16320 - Weldon Shank
View full collection →You are viewing PAL-181152100. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181152100 Viewing | XN06T3 | HI Feed | Weldon Shank | 32 | 200 | £209.11 | 5 days | |
| PAL-181152000 | XN06T3 | HI Feed | Weldon Shank | 25 | 180 | £178.83 | 5 days | |
| PAL-181151900 | XN06T3 | HI Feed | Weldon Shank | 20 | 160 | £163.52 | 5 days | |
| PAL-181161000 | XN06T3 | HI Feed | Weldon Shank | 16 | 150 | £144.70 | 5 days |
