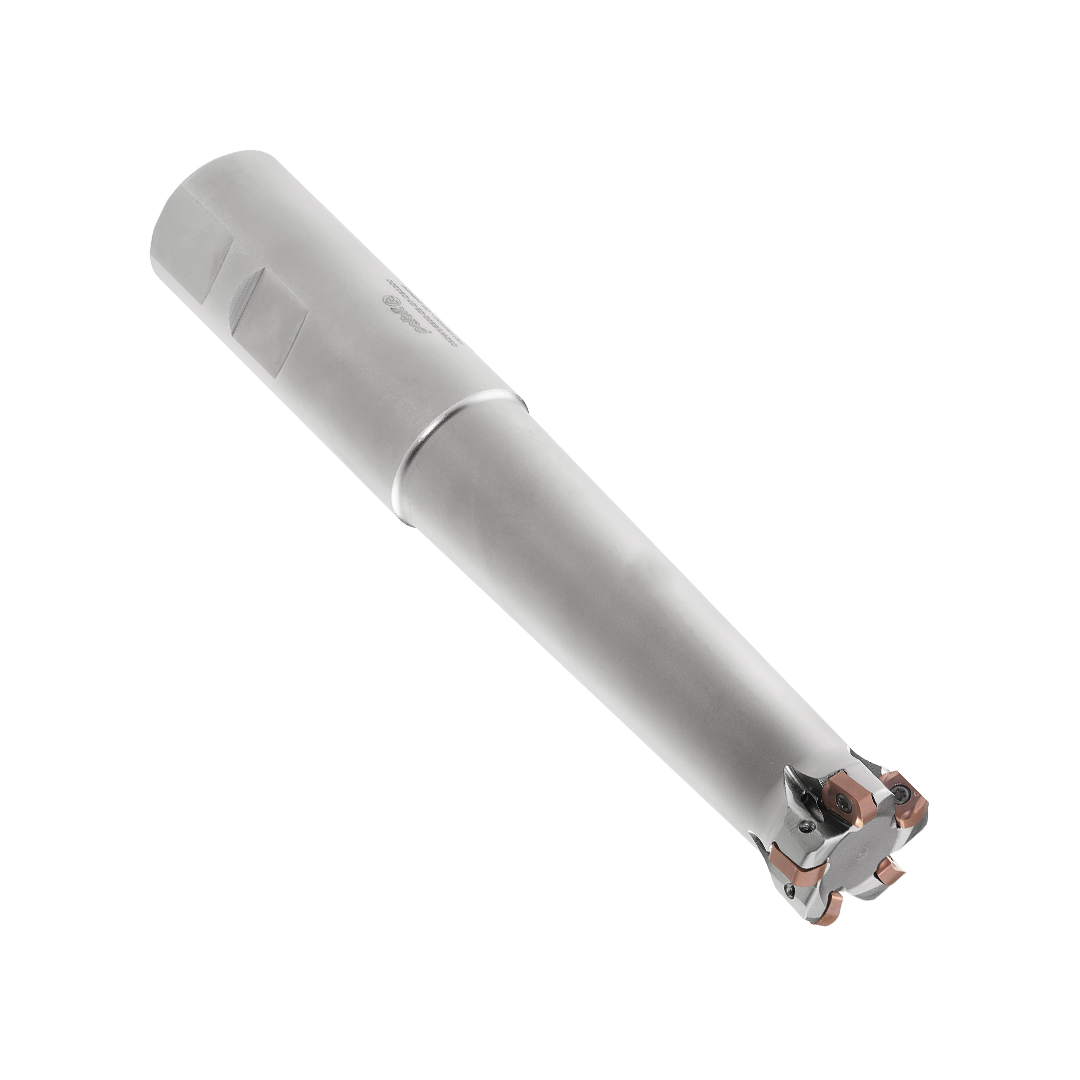

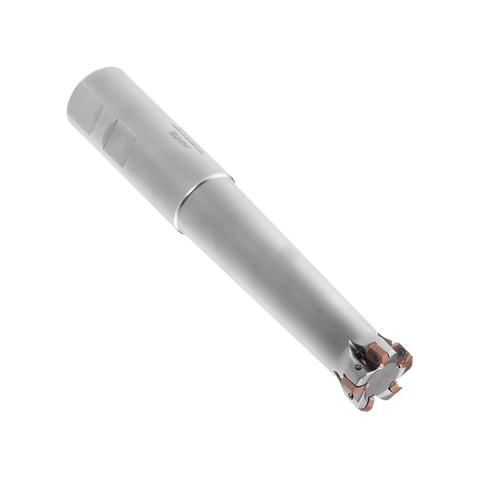

Palbit Weldon Shank Holder - For XN06T3 Inserts - 25mm Cutter Diameter - 181152000
| Insert Size & Shape | XN06T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 20 |
Learn more about Klarna
Palbit Weldon Shank Holder for XN06T3 inserts with 25 mm cutter diameter. Stock number 181152000. This precision holder is built for micro grooving and parting, delivering rigid seating and secure insert retention for repeatable, high-quality CNC cuts.
- Inserts compatibility: Specifically designed to hold Palbit XN06T3 inserts for micro grooving and parting.
- Cutter diameter: 25 mm cutting diameter for compact, precise operations.
- Rigid seating: Weldon shank design provides exceptional rigidity to minimize deflection during cutting.
- Insert retention: Secure retention to keep the insert properly aligned during machining.
- Chip evacuation: Optimized geometry supports efficient chip flow away from the cutting edge.
- Tool life: Durable construction and stable performance contribute to long tool life in demanding tasks.
- Applications: Ideal for fine-detail CNC machining requiring tight tolerances and consistent surface quality.
This holder delivers accurate cuts, smooth chip removal, and extended tool life, helping you maintain tight tolerances and a consistent surface finish across micro-grooving and parting operations.
| Insert Size & Shape | XN06T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 20 |
| Cutting Diameter (DC) | 25 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 180 |
| Usable Length (LU) | 100 |
| Axial Rake Angel (GAMP) | -7 |
| Rdial Rake Angle (GAMF) | -16 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TETRAFEED 16320 - Weldon Shank
View full collection →You are viewing PAL-181152000. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181152100 | XN06T3 | HI Feed | Weldon Shank | 32 | 200 | £209.11 | 5 days | |
| PAL-181152000 Viewing | XN06T3 | HI Feed | Weldon Shank | 25 | 180 | £178.83 | 5 days | |
| PAL-181151900 | XN06T3 | HI Feed | Weldon Shank | 20 | 160 | £163.52 | 5 days | |
| PAL-181161000 | XN06T3 | HI Feed | Weldon Shank | 16 | 150 | £144.70 | 5 days |
