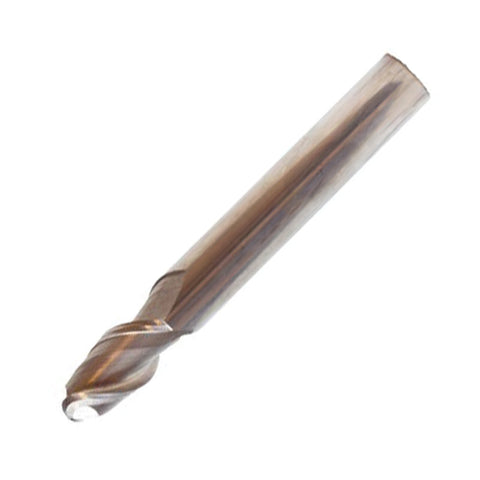

Vortex Carbide End Mill For Aluminium & Non-Ferrous - 2 Flute Long Length Ball Nose 45° - 10mm x 100mm (10mm Shank)

Vortex’s Carbide End Mill for Aluminium & Non-Ferrous is a precision 2-flute, long-length ball-nose tool designed for deep contouring and high-detail work on aluminum and other non-ferrous materials. With a 10 mm cutting diameter and a 10 mm shank, it brings extended reach without sacrificing rigidity, making it ideal for intricate 3D profiles.

• Diameter: 10 mm
• Overall Length: 100 mm
• Shank Diameter: 10 mm
• Flutes: 2-flute design for efficient chip evacuation and smooth finishes
• Geometry: Ball nose for precise 3D contouring and gentle radii
• Helix Angle: 45° to reduce cutting forces and improve chip evacuation
• Material: Carbide for rigidity and long tool life
• Material Suitability: Optimized for aluminium and non-ferrous metals
• Primary Use: Contouring, profiling, pockets, and finishing on complex surfaces

Designed to tackle detailed aluminum work and similar non-ferrous tasks, this end mill delivers clean, accurate contours with minimal deflection. The 2-flute configuration supports robust chip clearance in soft metals, while the ball-nose geometry produces smooth transitions and precise radii—ideal for 3D reliefs, molds, and surface finishes. The 45° helix enhances cutting efficiency and air/chip flow, helping maintain surface quality and extend tool life even in longer, deeper cuts. A reliable choice when reach and precision matter for detailed aluminum components or non-ferrous prototypes.
