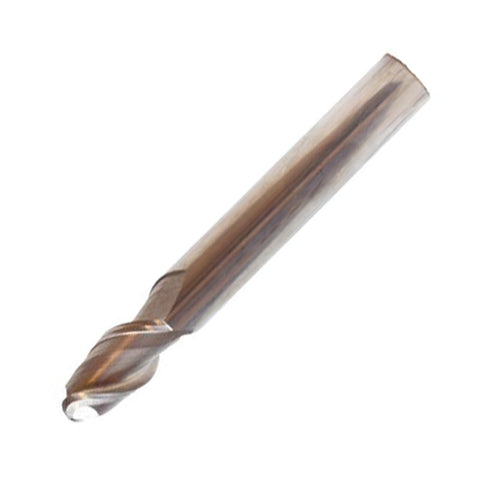

Vortex Carbide End Mill For Aluminium & Non-Ferrous - 2 Flute Long Length Ball Nose 45° - 5mm x 75mm (6mm Shank)

The Vortex Carbide End Mill for aluminum and non-ferrous metals is a precision tool designed for detailed contouring and smooth finishes. With a 5 mm diameter, 75 mm overall length, and a 6 mm shank, this 2-flute ball nose end mill is built for deep, accurate runs in CNC setups.

• Diameter: 5 mm
• Flutes: 2-flute design for efficient cutting and chip clearance
• Overall length: 75 mm with a 6 mm shank for extended reach
• Cutting geometry: Ball nose tip enables precise radii and smooth 3D contours
• Helix angle: 45° to reduce cutting forces and improve chip evacuation
• Material: Carbide for hardness, wear resistance, and long tool life
• Material compatibility: Optimized for aluminum and other non-ferrous alloys
• Chip evacuation: Geometric design helps clear chips efficiently during high-speed milling

The combination of a long length and a 6 mm shank provides the reach needed for deeper pockets and complex profiles without compromising rigidity. The 45° helix angle helps minimize cutting forces, which translates to steadier cuts, better surface finishes, and reduced tool wear when working with soft metals like aluminum and other non-ferrous materials. The ball nose geometry delivers accurate radii and smooth transitions, making it ideal for intricate engravings, contouring, and 3D sculpting tasks.
