Carmex Carbide Shank Toolholders With Internal Coolant For CMT Inserts
Vertical milling indexable inserts and tool holders to perform a wide variety of threads, grooves, chamfers and more. Advantages of CMT - Vertical Mill-Thread: Ground profile inserts for high precision and excellent performance. Working at high machining parameters, with high surface quality. Solid and accurate clamping method enables full repeatability. Same insert for right-hand or left-hand threads. Toolholders include weldon shank and coolant bore. Chamfer inserts are also available.
Browse all 12 products
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Insert Size | Shank Diameter | Reach | Overall Length | Tool No | Neck Diameter | Insert Screw | Torx Key | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|

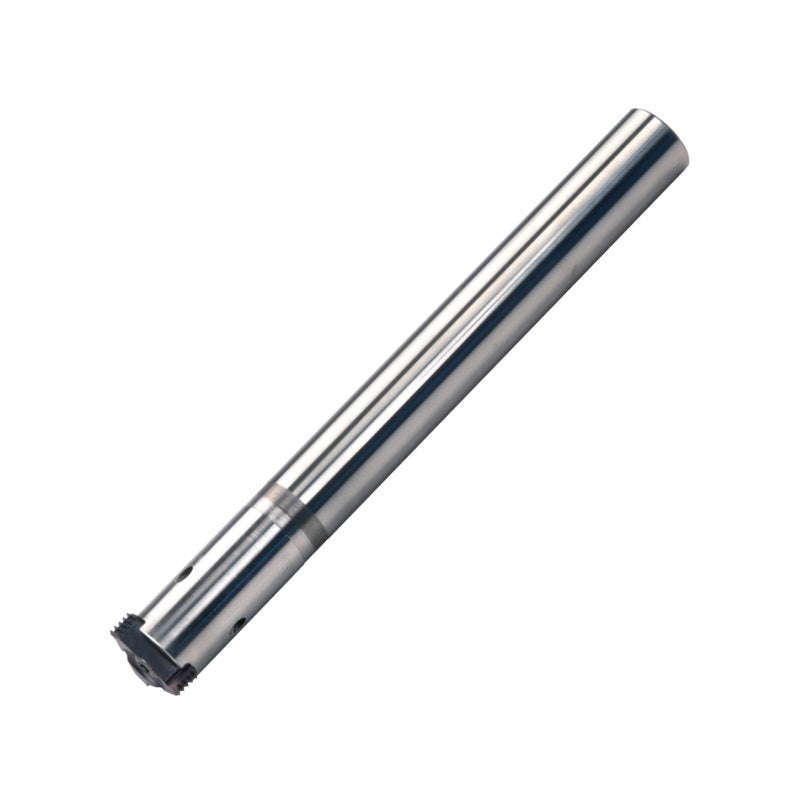

| CRC0810K | C10 | 8 | Straight Shank | 125 | H12 | 8 | S5 | K5 | £191.26 | 5 days |
|
| CRC0810L35K | C10 | 8 | 35 | 125 | H17 | 7.3 | S5 | K5 | £200.76 | 5 days |
|
| CRC1010L45M | C10 | 10 | 45 | 150 | H14 | 7.3 | S5 | K5 | £227.42 | 5 days |
|
| CRC1012L40M | C12 or S17 | 10 | 40 | 150 | H15 | 9 | S10 | K10 | £218.86 | In Stock |
|
| CRC1012M | C12 or S17 | 10 | Straight Shank | 150 | H20 | 10 | S10 | K10 | £198.96 | In Stock |
|
| CRC1212L57P | C12 or S17 | 12 | 57 | 165 | H16 | 10 | S10 | K10 | £326.86 | 5 days |
|
| CRC1218P | C18 or S20 | 12 | Straight Shank | 170 | H22 | 12 | S16 | K16 | £285.72 | 5 days |
|
| CRC1618L48R | C18 or S20 | 16 | 48 | 195 | H23 | 12 | S16 | K16 | £385.68 | In Stock |
|
| CRC1618L74R | C18 or S20 | 16 | 74 | 195 | H17 | 16 | S16 | K16 | £403.28 | In Stock |
|
| CRC1625R | C25 | 16 | Straight Shank | 205 | H18 | 16 | S27 | K27 | £350.74 | 5 days |
|
| CRC2025L85S | C25 | 20 | 85 | 250 | H21 | 17.5 | S27 | K27 | £491.16 | 5 days |
|
| CRC2035S | S35 | 20 | Straight Shank | 260 | H1 | 22 | S33 | K33 | £491.16 | In Stock |
|
No products match your filters.
